Foldable bike workshop stand, wall-mounted or electric

What is a bike workshop stand used for?

The workshop stand lifts the wheels off the ground and puts the bike at eye level. You can rotate the crankset to adjust a derailleur, true a wheel without flipping the bike over, bleed a hydraulic brake, change a chain or cable, and clean the drivetrain without bending down. The clamp pivots to present the bike at the right angle, and a tool tray keeps screws within reach.

Clamp, fork, wall or lift: types of workshop stands

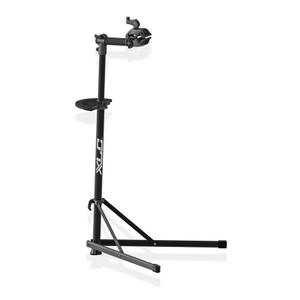

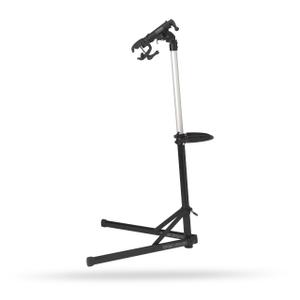

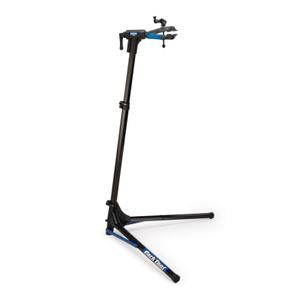

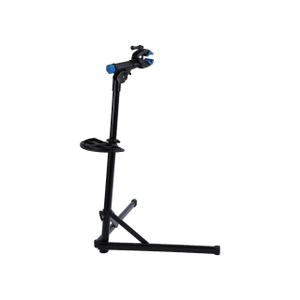

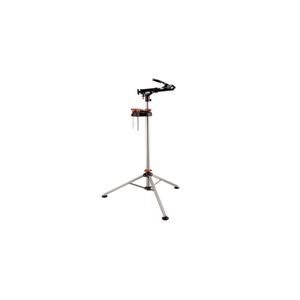

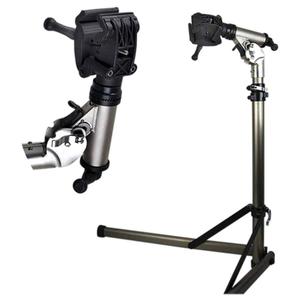

• Tripod clamp: the most common, it grips the seat post or a tube of the frame and folds up for storage or transport.

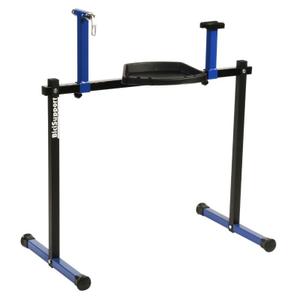

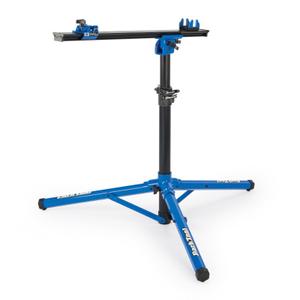

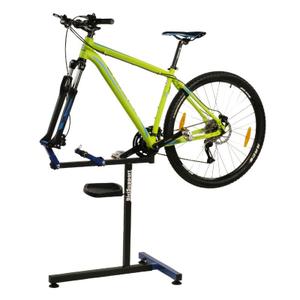

• Fork-mounted stand: the bike rests on its bottom bracket and is secured by the fork legs, without any pressure on the tubes.

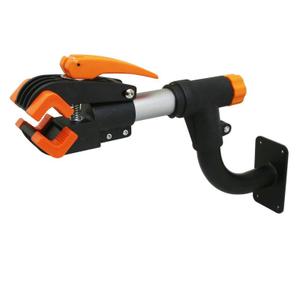

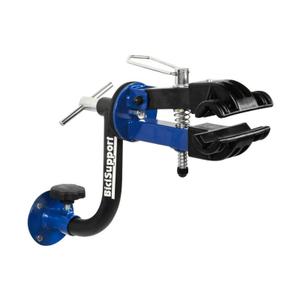

• Wall stand or fixed station: it frees up the ground in a garage or workspace.

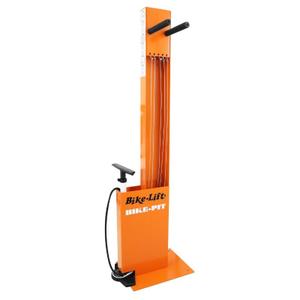

• Assisted or electric lift stand: it raises heavy bikes to working height without effort.

Load, clamp and height: choosing the right workshop stand

First, check the weight limit: a road bike fits on all stands, but an e-bike or electric mountain bike needs a model rated for its weight. Then check the maximum diameter accepted by the clamp, which is useful for wide or shaped tubes, and the height range. A wide-base tripod remains stable when you put force on a crank. For a carbon frame or post, tighten a round seat post without excess, never a thin or aero tube, or prefer fork mounting. If you want to store the bike rather than repair it, see the bike supports, and for equipping the workbench, the bike tools.

Which brands of workshop stands to choose?

Pedro's delivers its folding stand with a transport bag: its trigger clamp closes with one hand, pivots 360 degrees, and accepts tubes up to 65 mm.

Topeak includes a digital scale in the PrepStand Pro, and outfits the PrepStand eUP Pro with pedal-assisted lifting and a pressurised cartridge, for electric bikes up to 35 kg.

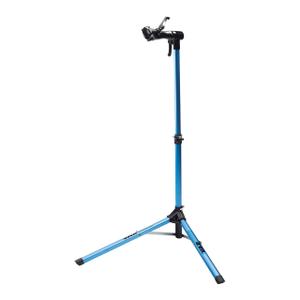

Var, a French bike tool manufacturer based in Chartres, offers stands with one or two arms and the Team Replica, made of aluminium and foldable, with a clamp that rotates 360 degrees.

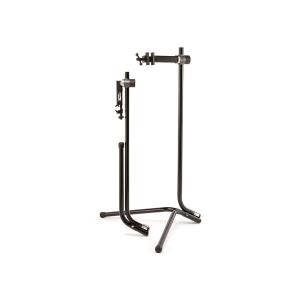

Feedback Sports equips its Pro Mechanic with a Speed Ratchet clamp, rated up to 32 kg on the HD version; the Sprint holds the bike by the fork and bottom bracket, and the Pro E Lift electrically lifts heavy bikes.

Unior, a Slovenian tool maker, designs for workshops the 1693EL, an electric stand controlled by foot or via a box, which lifts up to 70 kg and secures to the ground.

Workshop stands on promotion

Workshop stands whose version changes join the clearance, and newly listed models are found in the new arrivals. With Black Friday, the approach of winter is perfect for equipping the garage.

Frequently Asked Questions

How to secure a carbon bike on a workshop stand?

Tighten the seat post, preferably round, just enough so that it doesn’t rotate, and never a tube of the frame. With an aero or telescopic post, a stand that holds the bike by the fork and bottom bracket avoids any squeezing.

What workshop stand for an electric bike?

A model with a weight limit that exceeds the weight of the bike, battery removed if possible to lighten it. Assisted or electric lift stands prevent lifting a heavy bike up to the clamp.

Is a foldable workshop stand stable enough?

Yes for routine maintenance, provided you spread the legs properly and don’t exceed the specified load. For heavy use or bikes, a wider base or a wall-mounted station gains rigidity.

At what height to set the workshop stand?

Position the area you’re working on, crank or rear hub, at elbow height approximately, to keep your back straight. Lower the bike to attach the front wheel, and raise it to adjust the drivetrain.

Is a workshop stand necessary for maintaining your bike?

It’s not essential for inflating a tire or lubricating a chain, but it quickly becomes invaluable for adjusting a derailleur or truing a wheel, as it allows you to freely rotate the crankset and wheels.
