SD Components Pedalboard B-85

PEDALIER SD COMPONENTS B-85

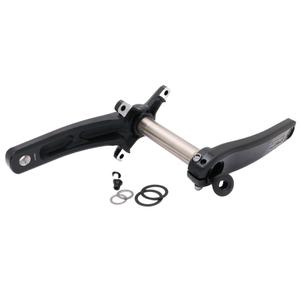

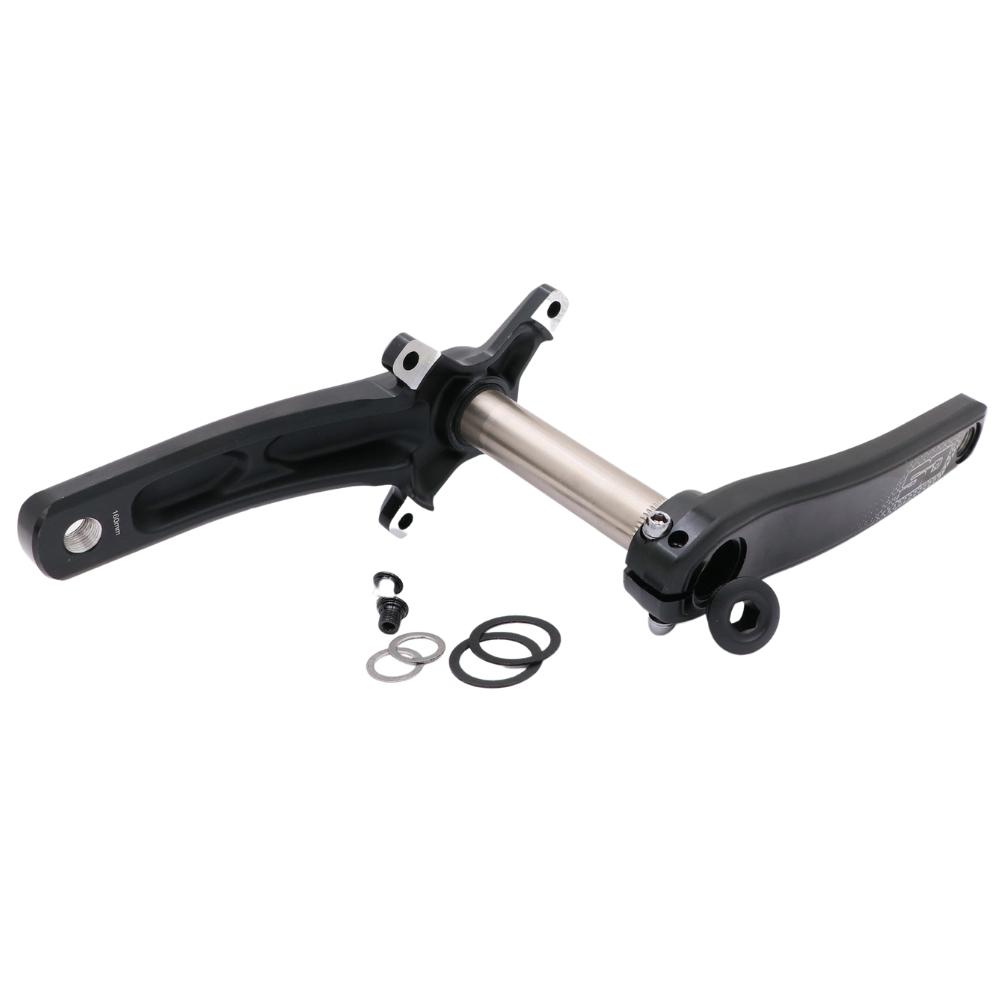

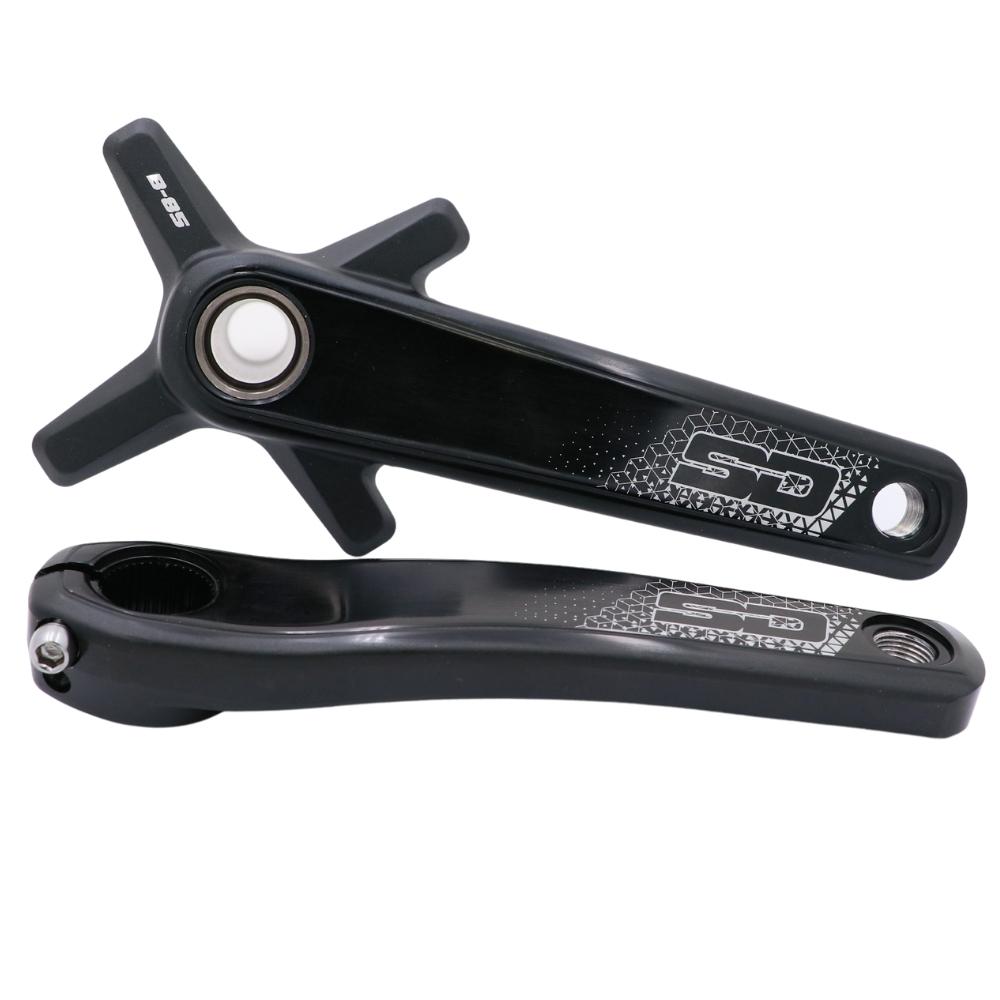

SD Components is a top-of-the-range parts brand from BMX Race. This is a 2-piece crankset with a 24 mm axle, offering increased rigidity during pedaling. Lightweight and efficient, it facilitates acceleration at the start and when exiting the gate. The B-85 crankset is beautifully finished, with concealed clamping screws and a sober, elegant spider design.

On the B-85 crankset, the sprocket can only be fitted from the inside of the crankset. All you need are your 4 chimney screws (the chimneys / screw threads are integrated into the crankset spider). Installing and replacing your crown is therefore simpler and more rapide.

Available in several sizes: 160mm / 165mm / 170mm / 175mm

IN DETAIL :

• Crank design: Forged aluminum / CNC-surfaced - Anodized finish
• Crank lengths: 160mm - 165mm - 170mm - 175mm
• Axle: 24mm constant - Chromoly steel
• Axle length: 112mm
• Bolt Circle Diameter (BCD) : 104mm BCD
• Pedal inserts: 9/16" - CrMo
• Q-Factor : NC
• Chain line : NC
• Color : Black

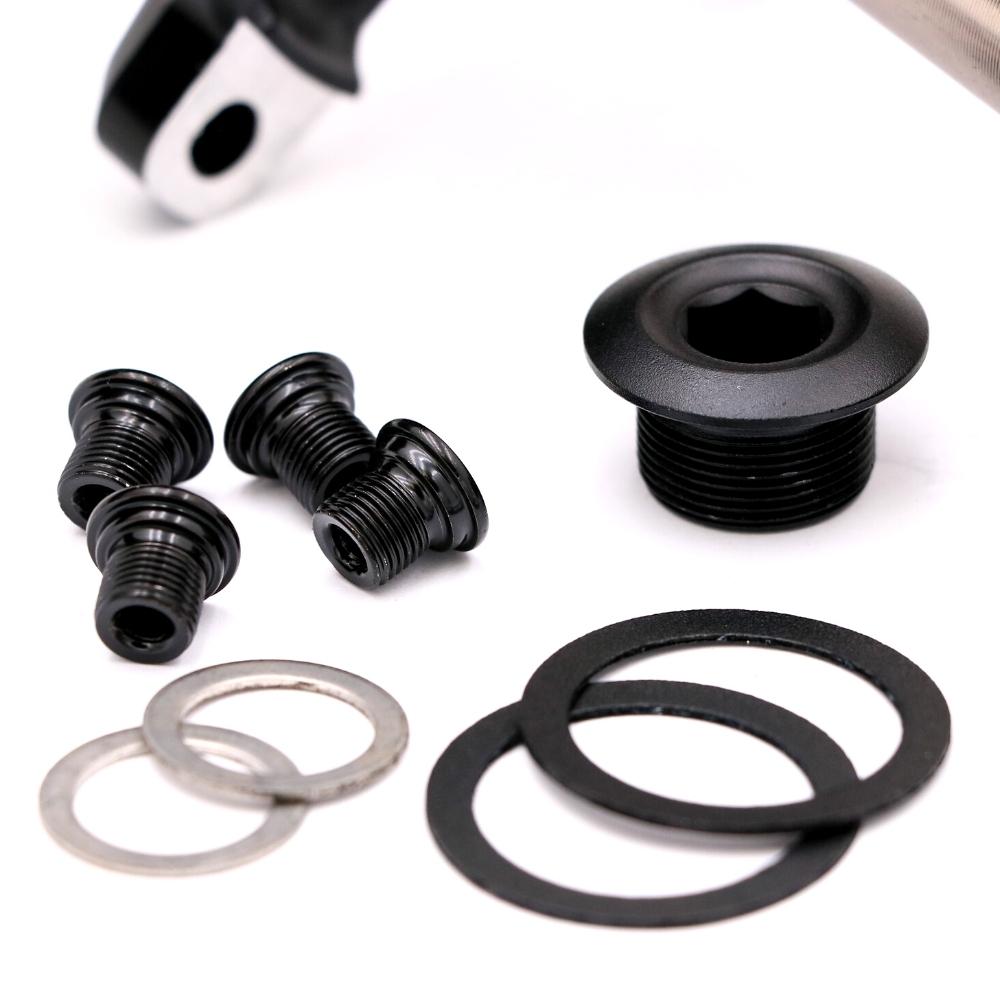

• Specific spider clamping screws - Supplied with crankset
• 2 spacers for compression adjustment
• 1 gasket for crankset compression screw
• 1 compression screw to tighten cranks together
• Weight: 772g (165mm)
• Case compatibility: BB86 (PF86) / BSA 68mm
