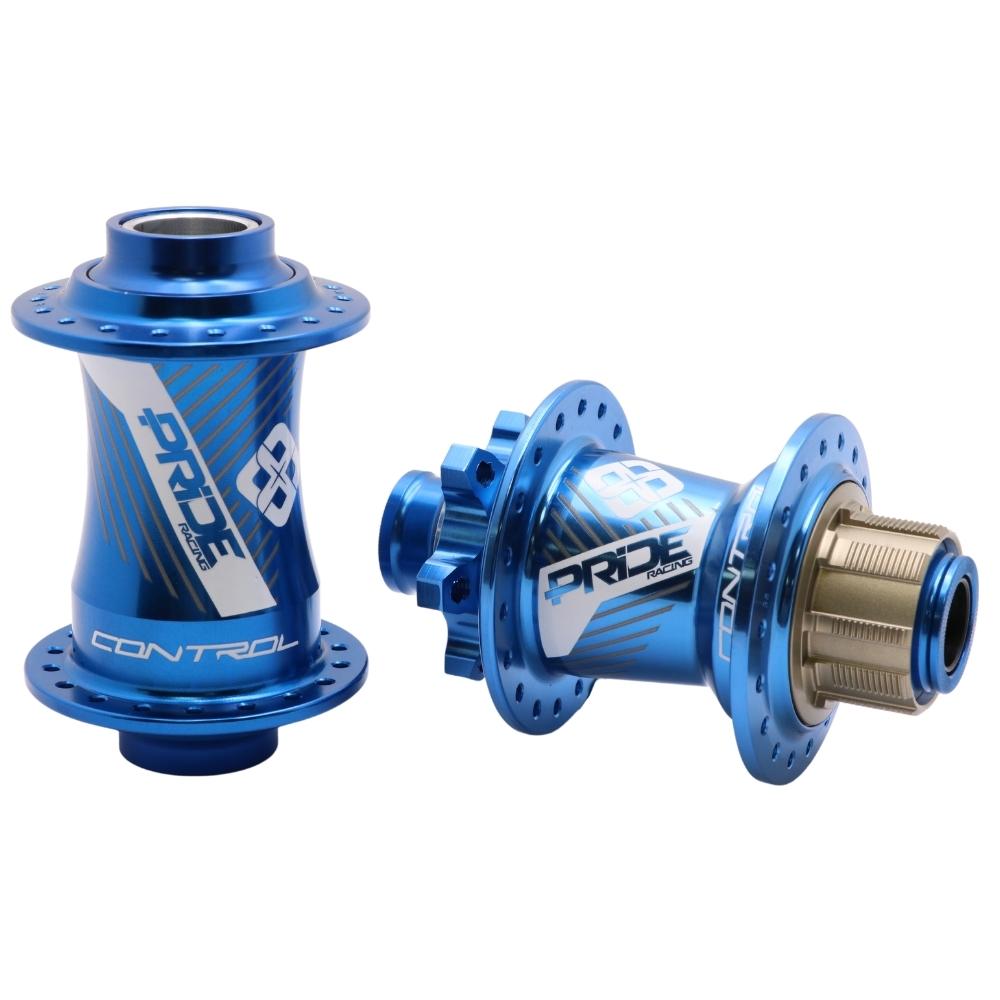

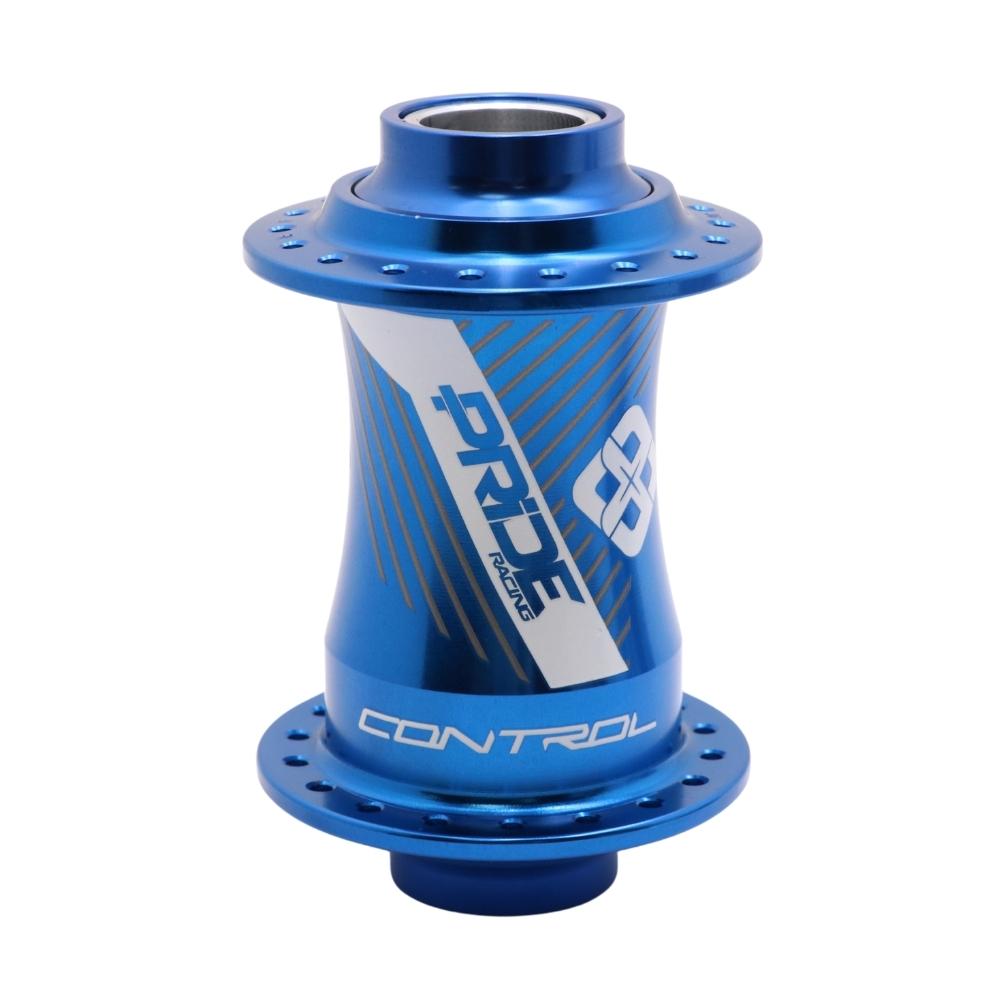

Hub Control V2 Exp 36H

The essential hubs Pride Racing Control now come in a new version with a rear hub featuring a 15mm thru-axle. There's also a change in the disc mount, which is now ISO6 to make installation easier and ensure wide compatibility. The hub bodies are still CNC machined from Aluminium 6061-T6 for remarkable precision and finish. Regarding the engagement system, the driver made from Aluminium 7075 T-6 has also been modified and includes a clip to hold the 6 new slightly wider micro-toothed pawls compared to the Pride Control V1. It retains its 180 engagement points, with 3 pawls engaging at a time.

NOTES: The wheel axles are not provided as they are specific to each fork and frame. A lock ring and a spacer kit are included to adjust the chainline.

SPECIFICATIONS

Material: Aluminium 6061-T6
Front spacing: 100x20mm
Rear spacing: 110x15mm (Thru-axle not included)
Number of holes: 36
Driver standard: Shimano
Type of engagement: 180 points / 6 pawls
Disc mount: ISO6
Front hub bearings: Enduro Bearing - 6805LLB (25x37x7mm)
Rear hub bearings: Enduro Bearing - MR18307LLB (18x30x7mm)
Weight: 246g (Front) / 370g (Rear)
