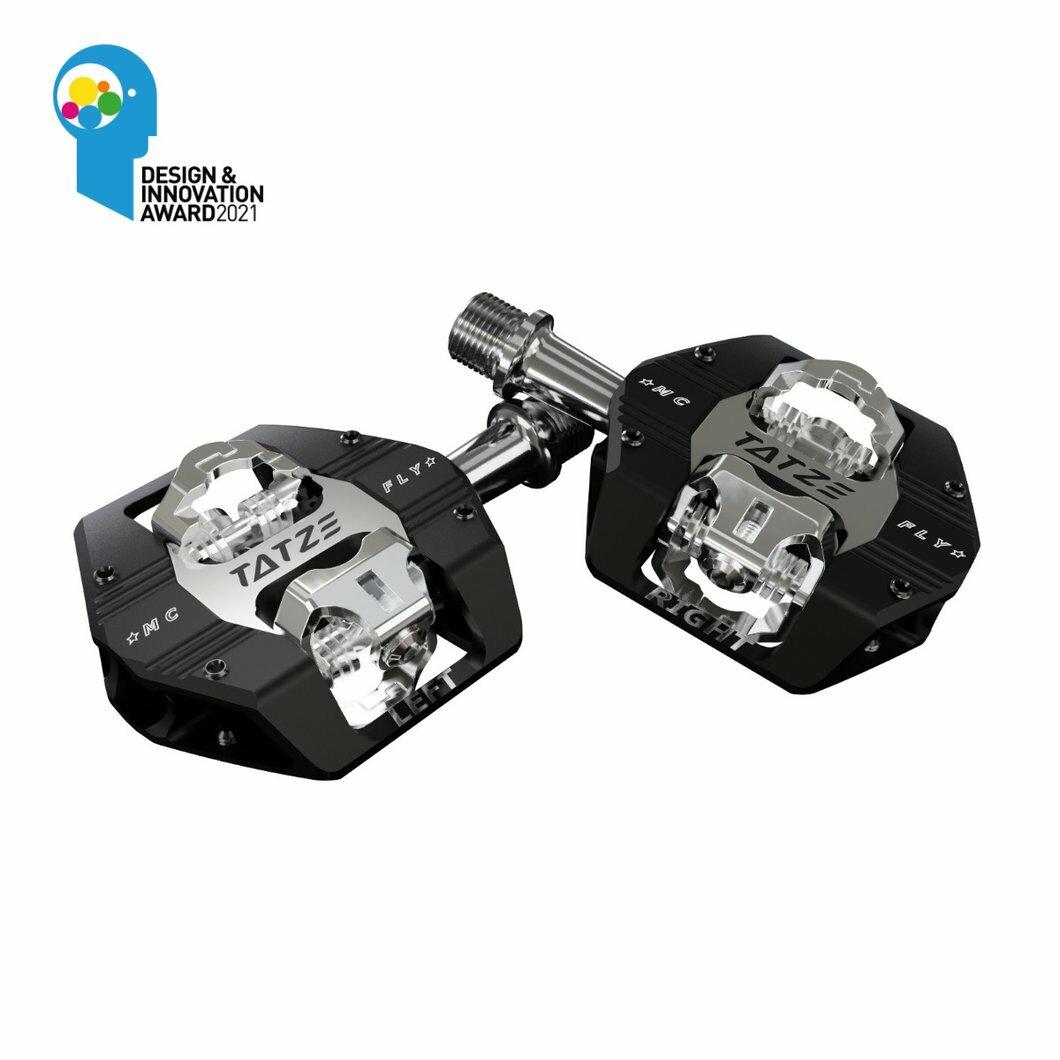

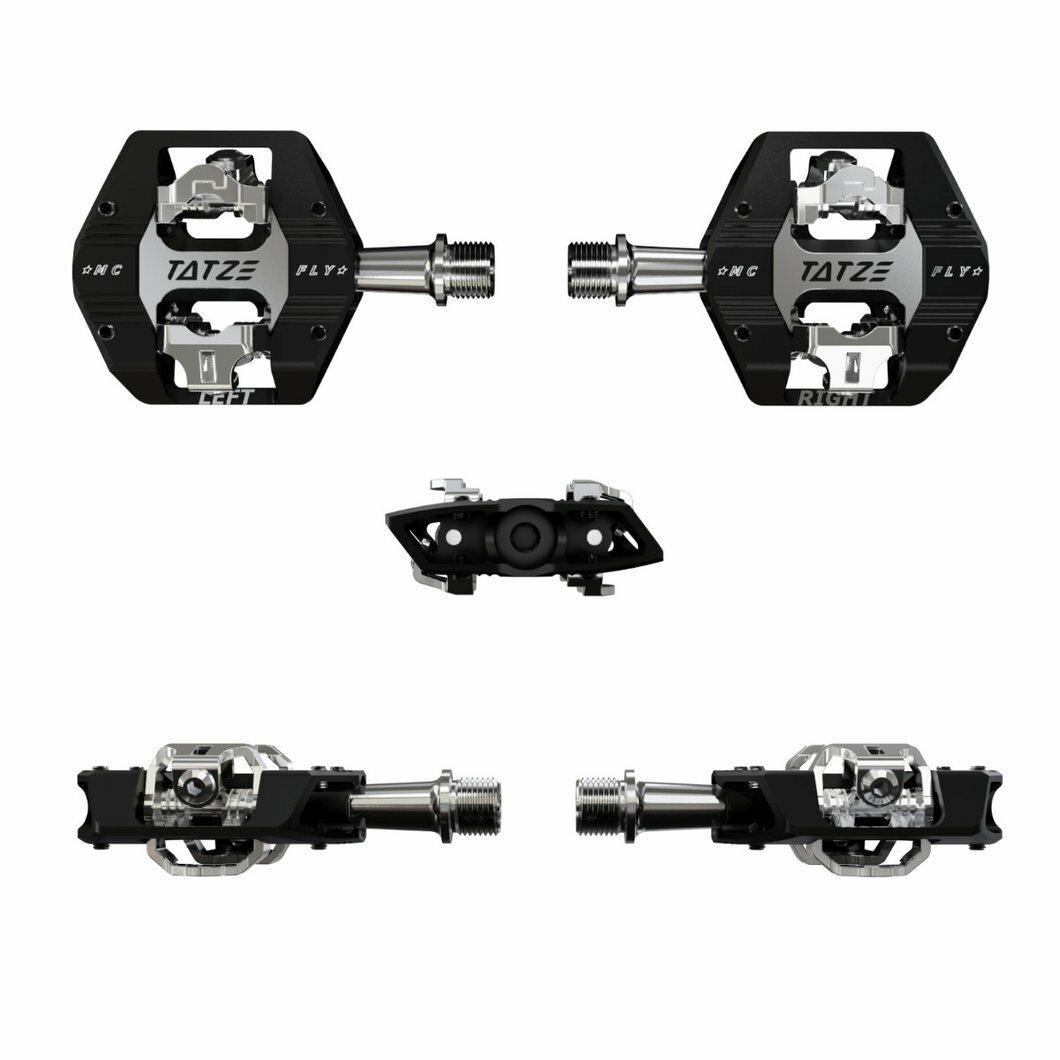

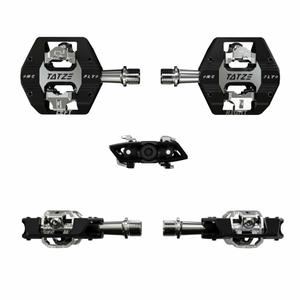

Pedal Mc Fly

The MC-FLY is SPD compatible and with its 5° float offers enough freedom of movement for an active driving style and with a release angle of 12° leaves enough space to always be in control of the situation between the engages and releases. Of course, the release hardness can also be adjusted and read on the mechanism.

A particularly important feature are the 4 optional PIN codes that are arranged around the click mechanism. With these pins, the contact pressure between the shoe and the pedal can be adjusted. Do you have too much play? Simply insert the pins and lock in the height until the contact pressure fits perfectly.

The pedal promises longevity through the use of a large needle bearing on the inside and a deep groove ball bearing on the outside as well as multiple seals against dirt and moisture.

Specifications at a glance

• SPD compatible
• Release hardness 4-12Nm adjustable
• Float 5 °
• Release angle 12°.
• Adjustable contact pressure between shoe and pedal via 4 optional pins
• Compact pedal with large contact area: L: 67 mm W: 56 mm H: 13-17 mm
• Pedal body: aluminium 6061-T6, anodized

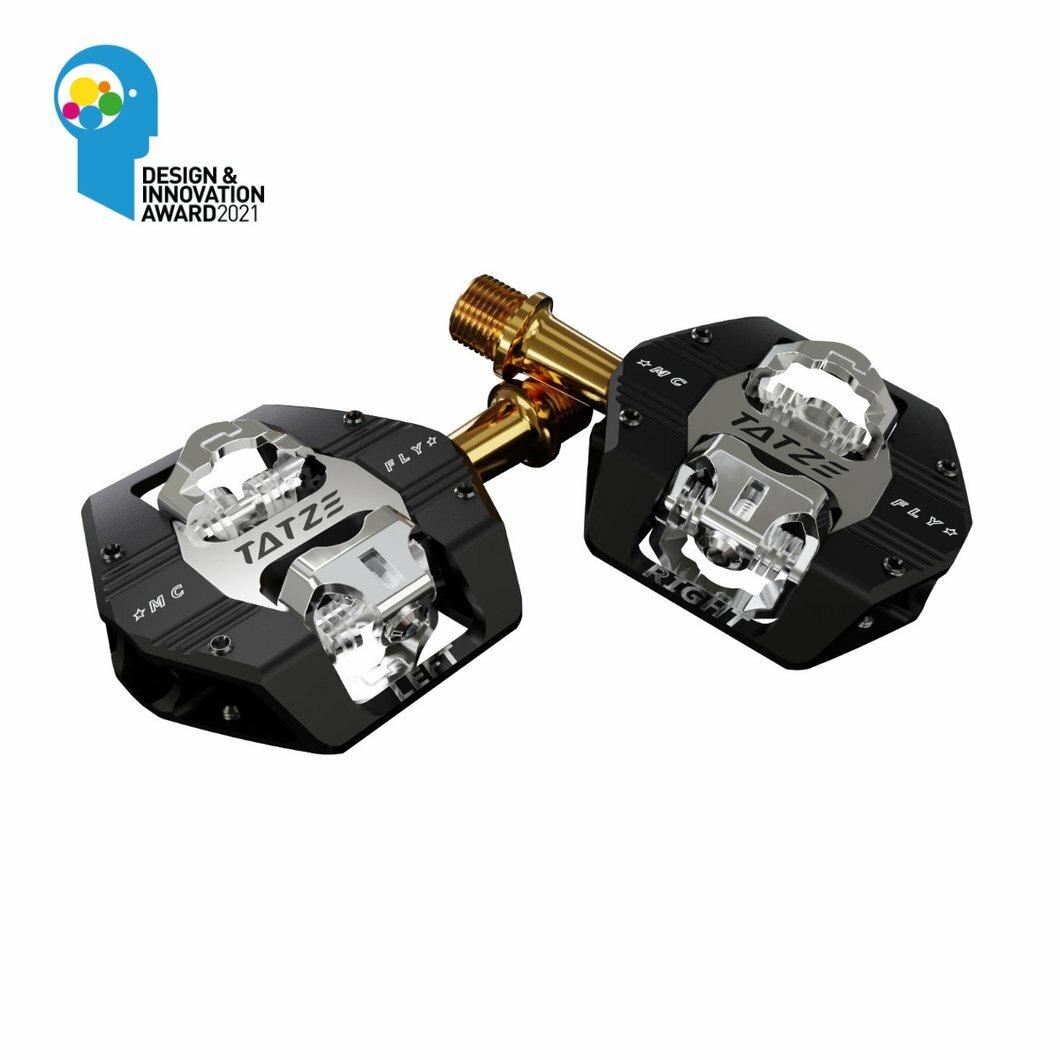

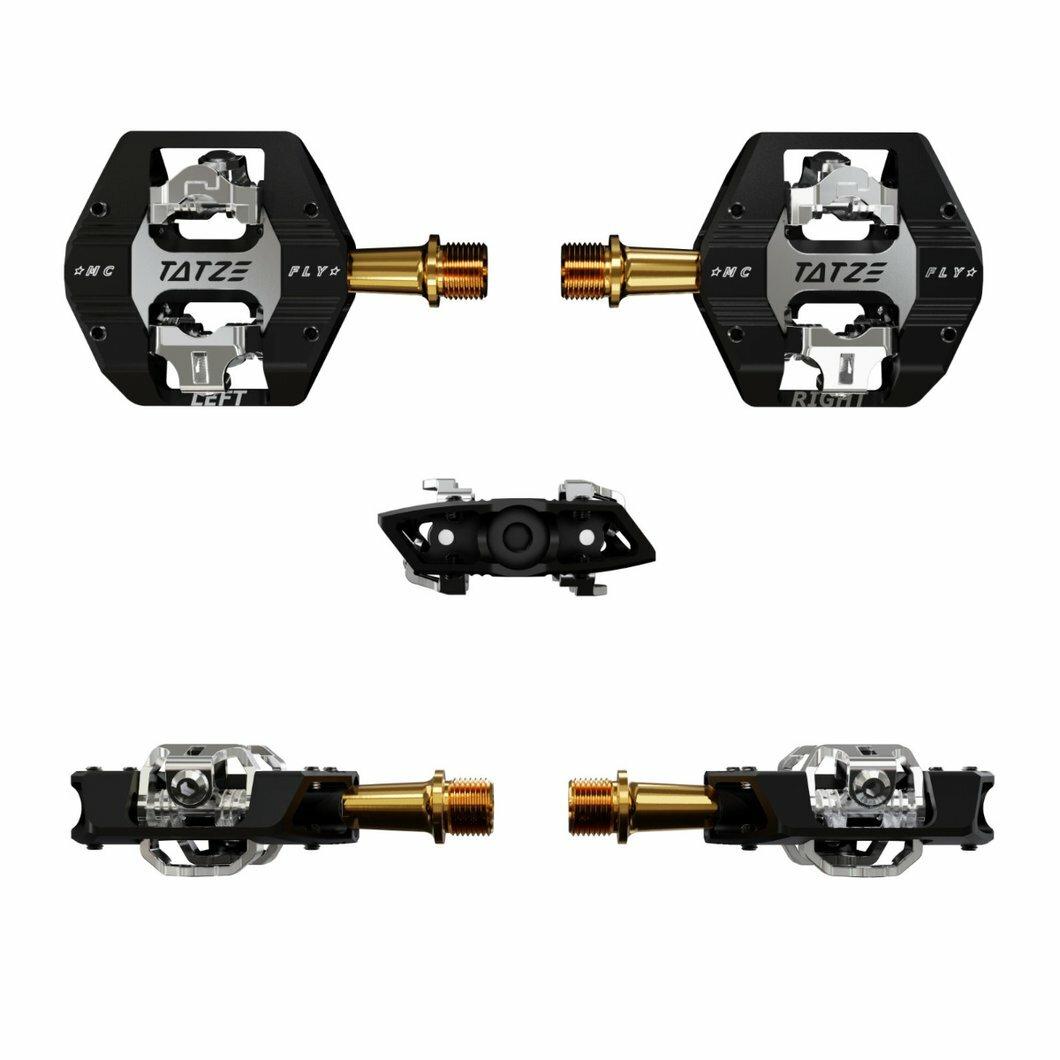

• Axle: hardened and coated steel axle (upgrade to titanium version)
• Storage: needle bearings and rigid ball bearings, both double sealed
• Weight: 354g
