Insight Aluminium 4-point pedal set MX4

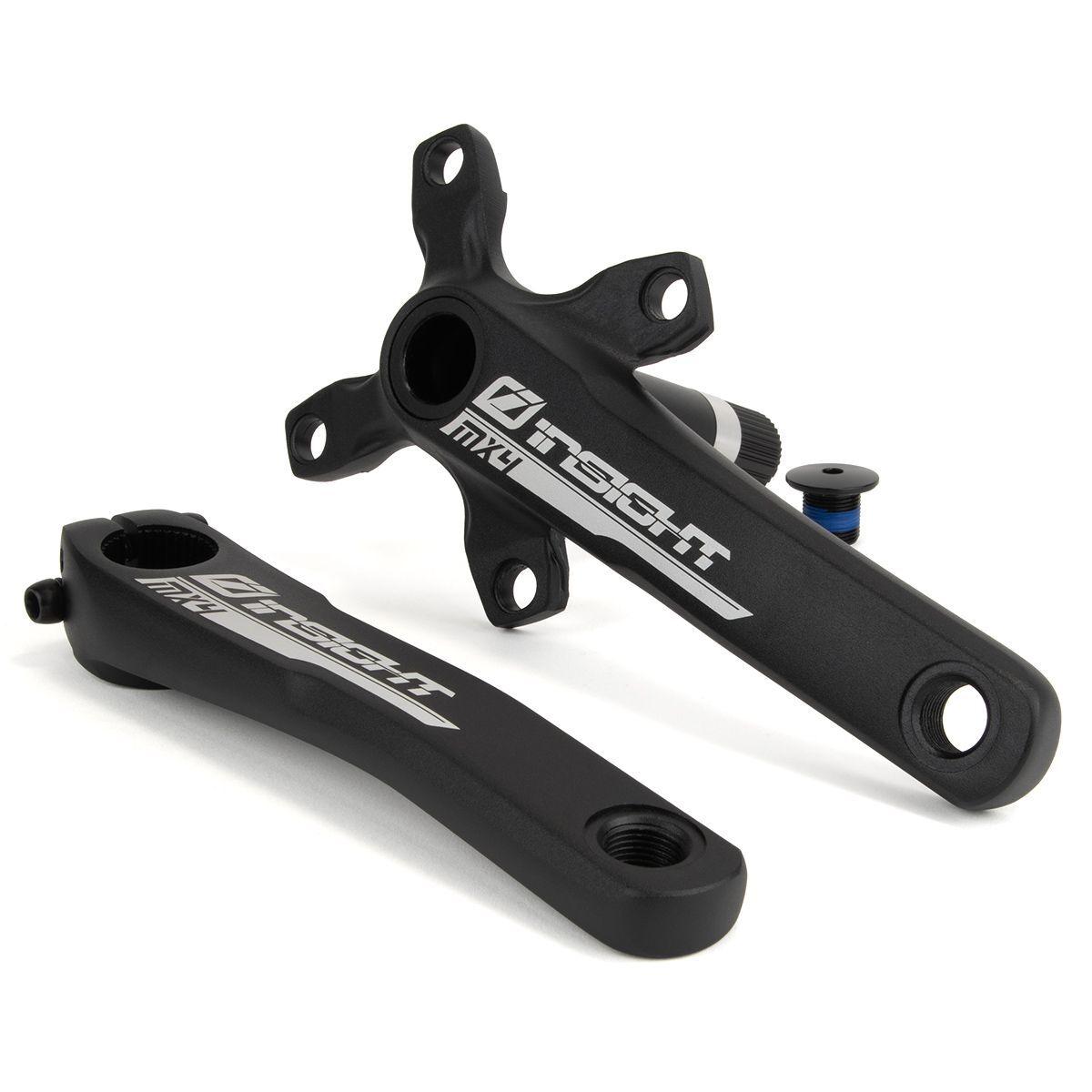

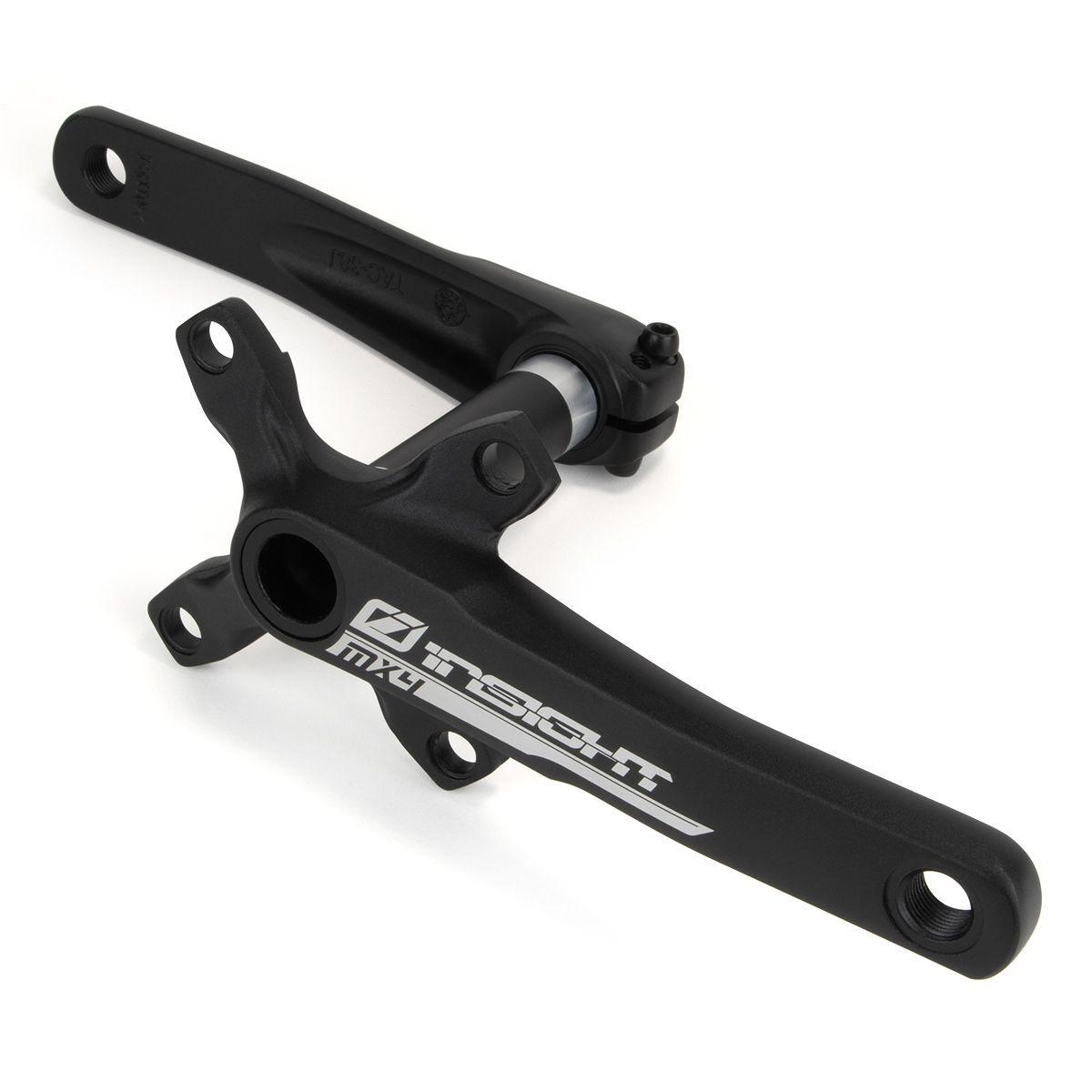

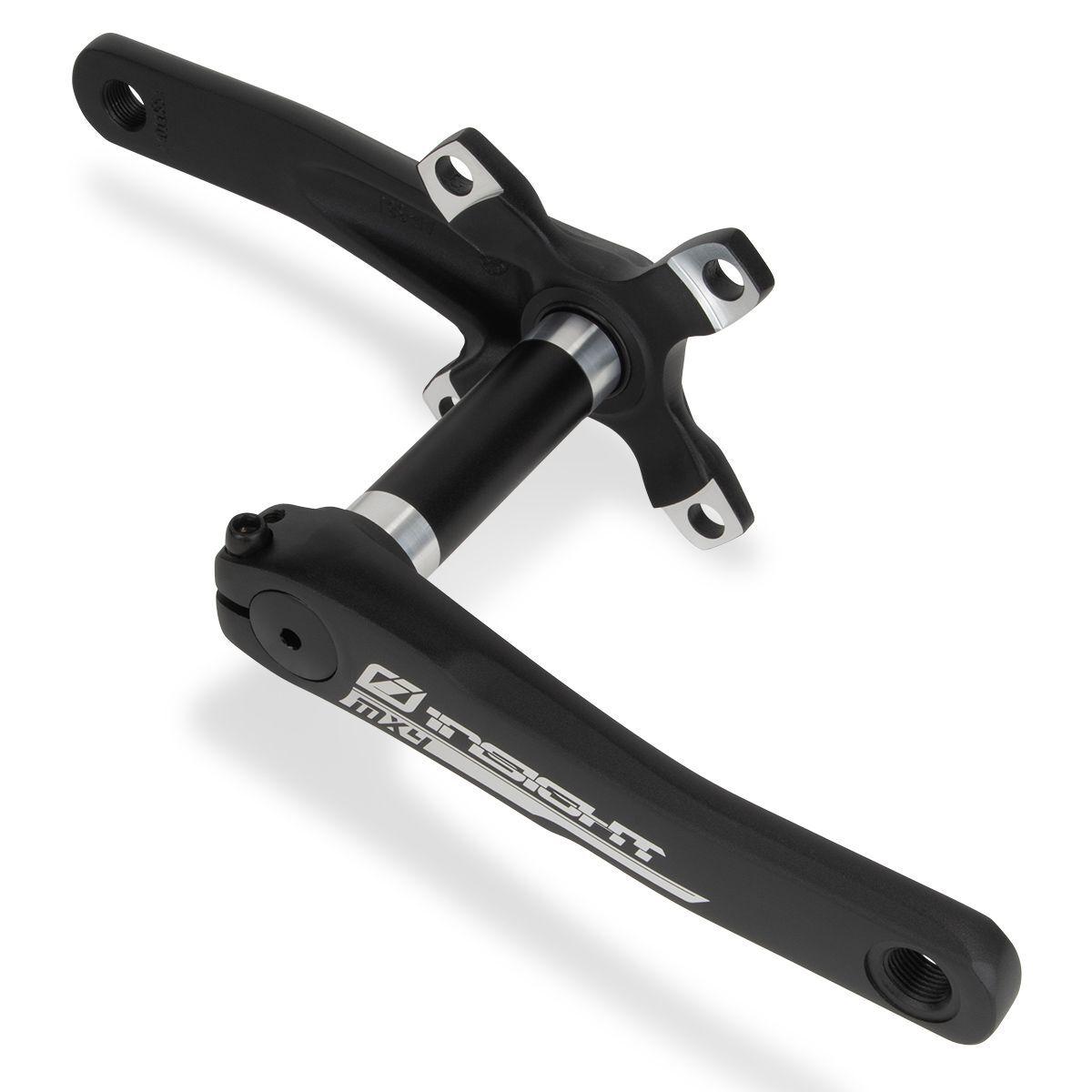

Crankset INSIGHT MX4 2-piece BMX Racing with aluminium splined axle.

Brand new for young competition riders of BMX, an ultra-light 2-piece crankset, featuring an arm with 4-bolt attachment and a 24 mm aluminium splined axle that fits into the crank arm by pressure. The non-drivetrain side has a double-bolt pinch design to keep the crank arms tight and work smoothly, all the way to the podium!

Designed for young riders who need a robust crank setup and want to switch to a 2-piece crankset with a 24 mm axle and 4-bolt chainring attachment, but require a shorter crank arm length.

With the lightweight alloy splined axle and a lighter 4-bolt chainring attachment (not included), you can really reduce the weight of your competition bike!

Crankset features

• Forged aluminium cranks 6061-T6

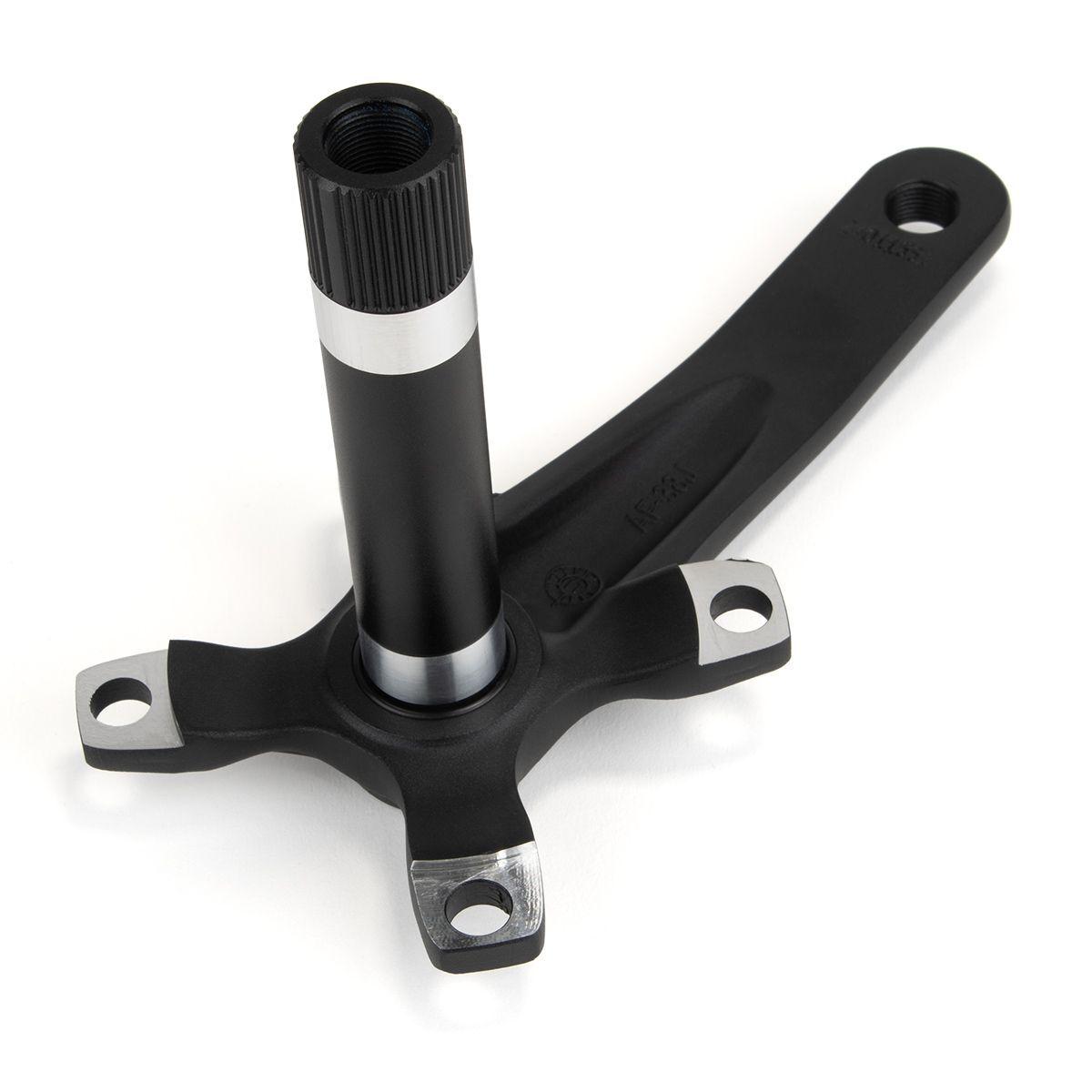

• 24 mm aluminium 7075-T6 splined axle that fits by pressure into the
• drivetrain side; the non-drivetrain side has double pinch bolts
• 4-bolt BCD attachment diameter 104mm
• 6 size options: 140, 145, 152, 155, 160, and 165 mm
• Bottom bracket not included – to be used with a 24 mm axle bottom bracket, Press Fit or Euro.
• Q factor 160 mm
• 2 colour options
• Black with black graphics laser etched
• Black with silver graphics laser etched
  Weight
• 140mm: 550g
• 145mm:
• 152mm: 568g
• 155mm: 573g
• 160mm: 585g
• 165mm: 593g
