Shimano

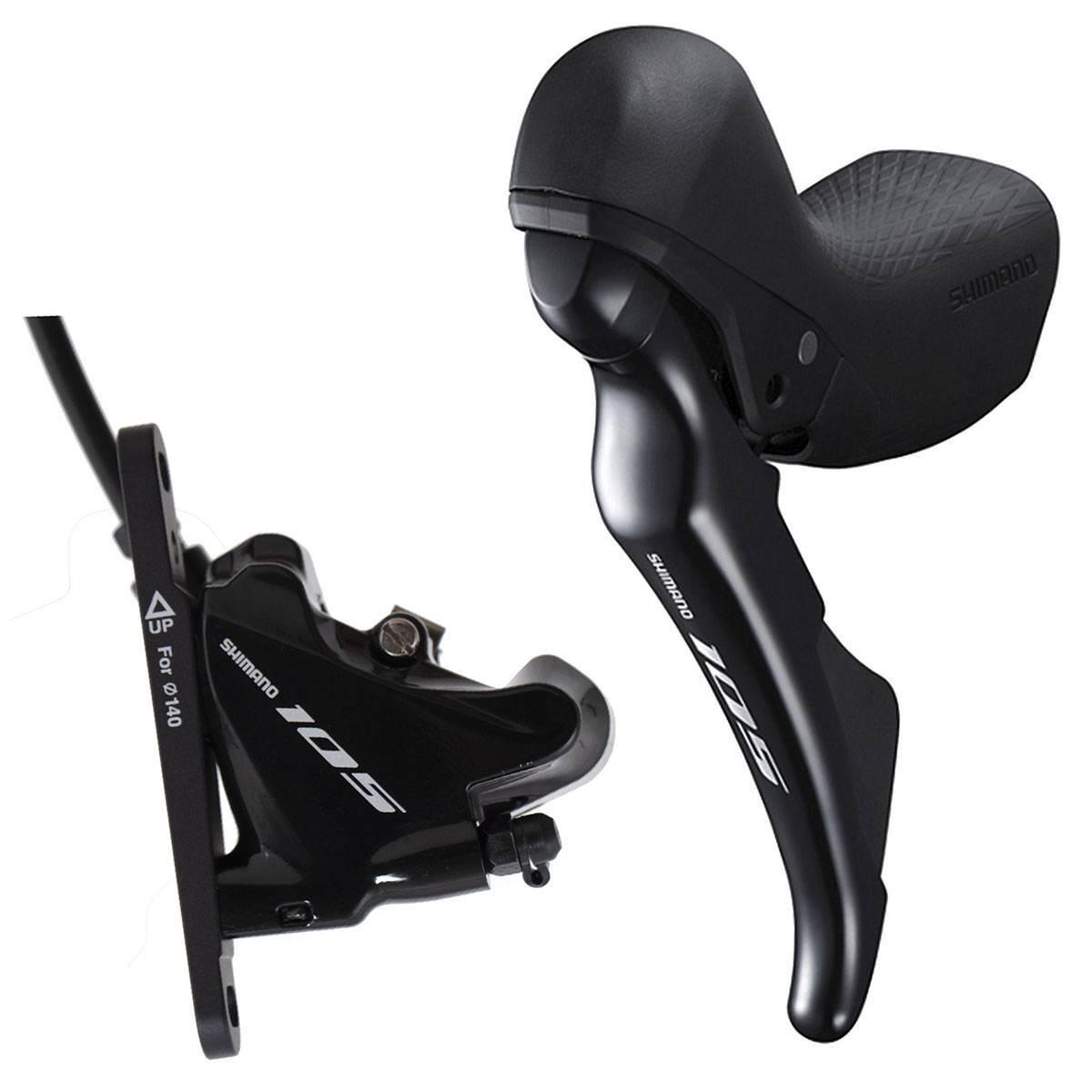

Front disc brake kit 105 R7025

Enhance your cycling experience with the disc brake kit Shimano 105 R7025, designed for optimal precision and comfort.

Product unavailable

All variants are sold out

Description
+

The Shimano 105 ST-R7025 shift/brake lever is similar in functionality to the ST-R7020, but with a 4 mm narrower lever, it is specially designed for cyclists with smaller hands. A modified outward angle compared to the handlebars ensures that this target group can now comfortably and securely operate their disc brakes. The Dual Control lever shifting mechanism has been revised to guarantee faster and smoother shifting with less lever travel. The brake unit now takes up less space, practically eliminating the visual difference between hydraulic and mechanical braking systems. A friction-reducing coated shift cable (Optislick) is included.

Specifications:

  • Series: 105 R700
  • Application Area: Cyclocross, Gravel, Road
  • Speeds: 2 speeds
  • Housing Length: 850 mm.
  • Shifting System: mechanical
  • Braking System: hydraulic

Technical Data:

  • Brake Lever Material: Aluminium
  • Body Grip Material: Plastic
  • Clamp Material: Steel
  • Cables: SM-BH90-JK-SSR, SM-BH90-J-SSR (not included in the delivery)
  • Brake Fluid: Mineral Oil
  • Mounting: Clamp (closed)
  • Lever Width Adjustment: Screw
  • Adjustment Options: Lever width adjustment

Compatibility:

  • Grip Diameter: 23.8 - 24.2 mm
  • Front Derailleur: FD-R9100, FD-R8000, FD-5801, FD-R7000, FD-9000, FD-6800, FD-5800, FD-U5000, FD-RX810
  • Crankset: FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-11
  • Shifting System: RD-R9100, RD-R8000, RD-RX800, RD-9000, RD-6800, RD-5800, RD-R7000, RD-U5000, RD-RX810
  • Cogset: CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11
  • Chain: CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500
  • Brake Caliper: BR-R7070 (recommended), BR-R8070, BR-R9170, BR-R9270, BR-R9170, BR-R8170, BR-R7170, BR-R7070, BR-RS785, BR-RX820, BR-RX820-LE, BR-RX810, BR-RX400, BR-4770
  • Additional Brake Lever: BL-RX812

Features:

  • Revised switching unit for quick and intuitive switching.
  • Specifically for cyclists with small hands thanks to the angle change towards the handlebars and outward.
  • Reduction of internal hydraulic operation for balanced ergonomics between rim and disc brake configurations.
  • Maximum number of speeds per shift: 2 (main lever, rear).
  • Optislick inner cable with minimal galvanic coating for better cable management and greater corrosion resistance.
  • OT-SP41 housing recommended (OT-RS900 for the shifting system).
  • Direct cable connection.
  • Bleed funnel with M7 funnel (TL-BR002).
  • Synthetic resin/steel shift lever body, lacquered brake lever.

Technologies:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions into one lever, which increases safety while riding. By perfecting the technology, gear shifts have become so smooth at the front and rear that they can be operated with just one finger. Shimano calls these levers Dual Control Lever (DCL).

Additional information
+
BrandShimano
Supplier referenceD62-KR7025DLF6RX085
Colorblack
Main colorBlack
GenderMixed
Age groupAdult
StabilityCycling
