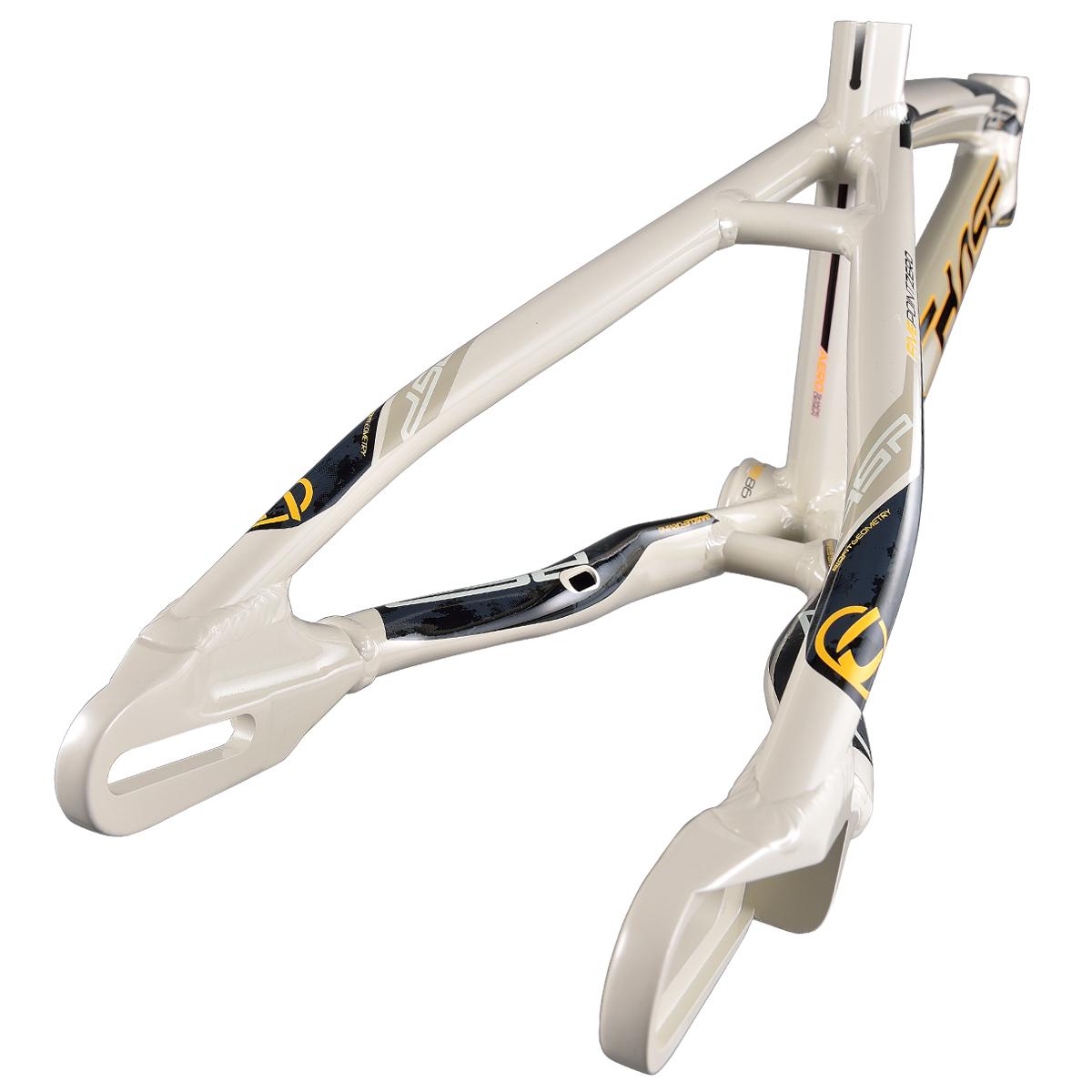

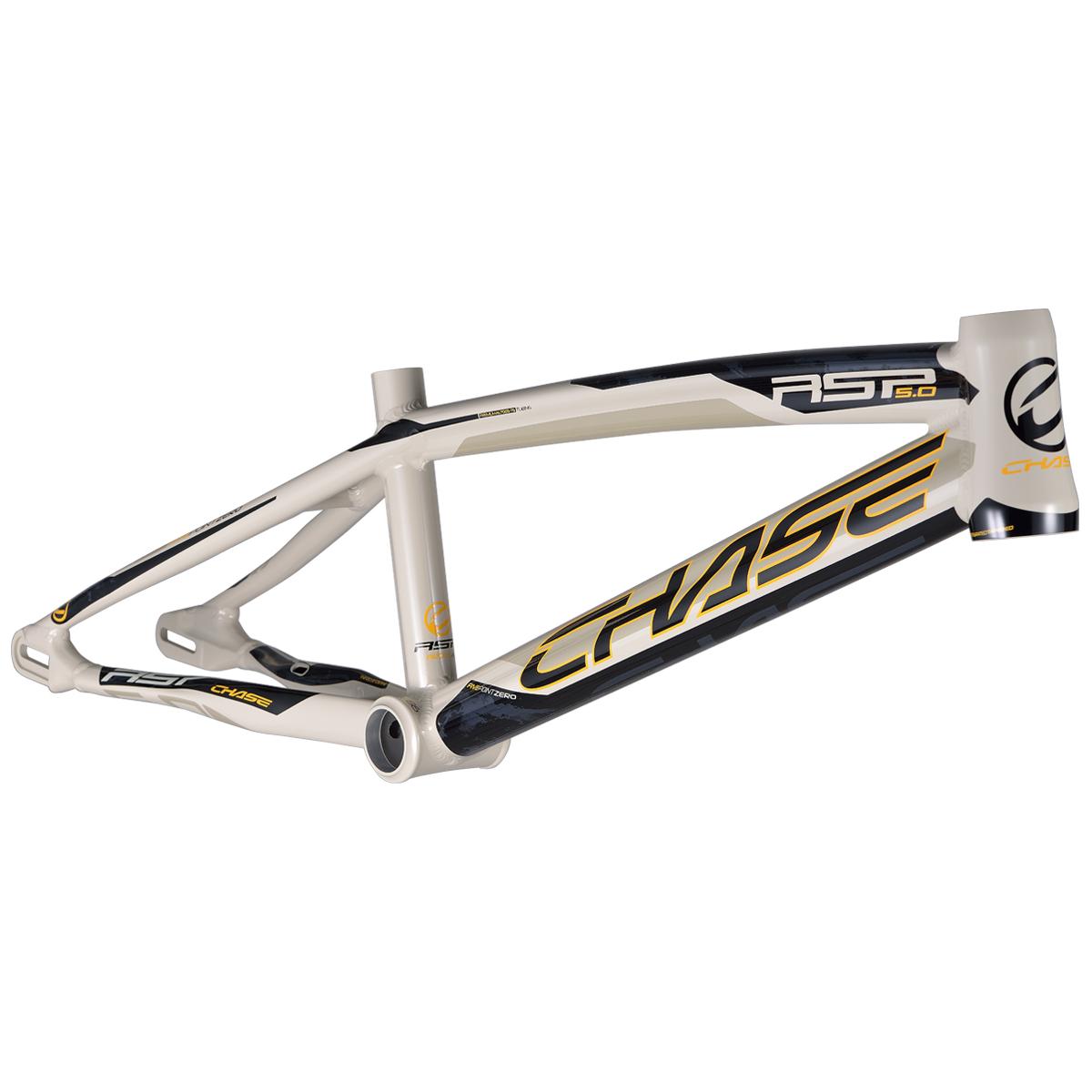

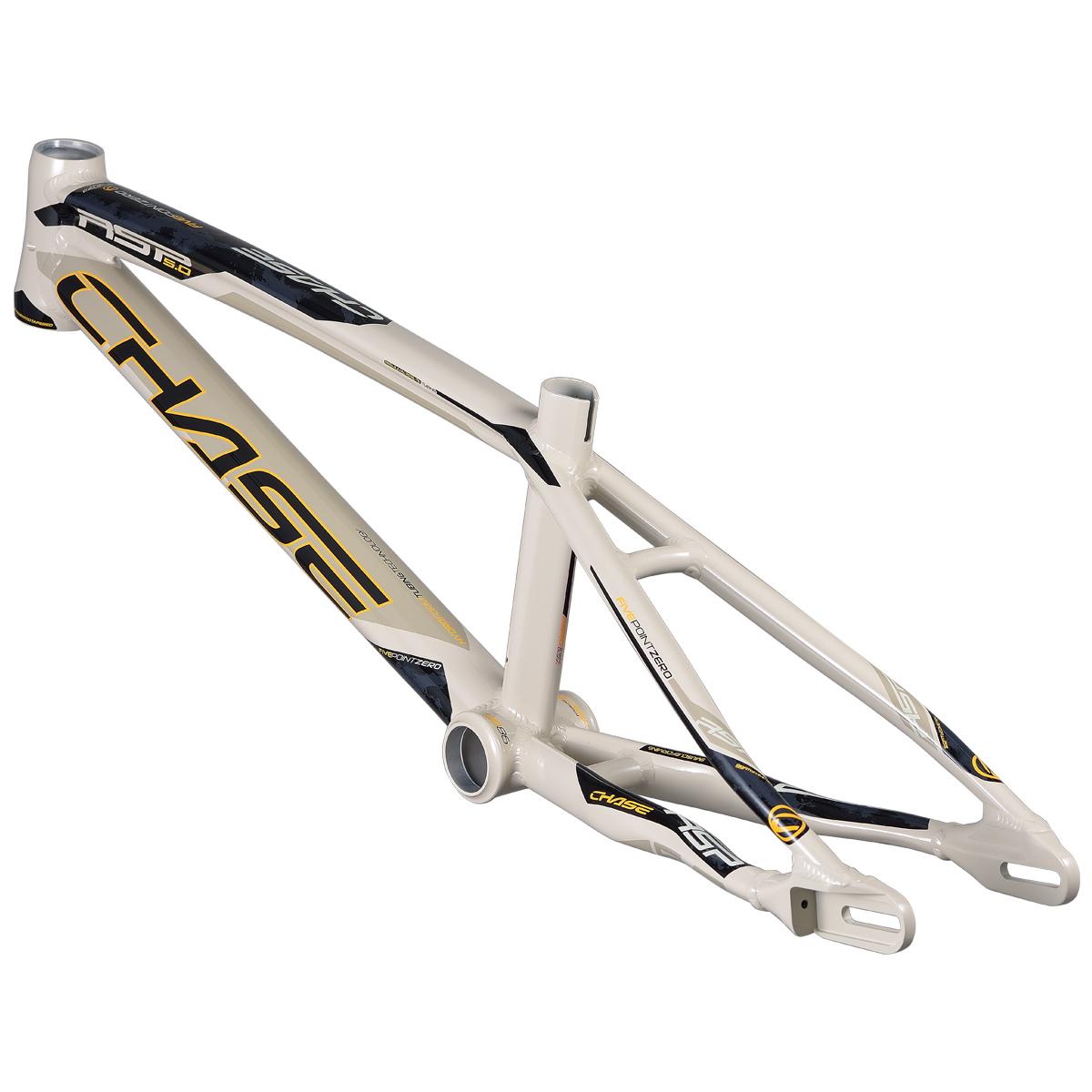

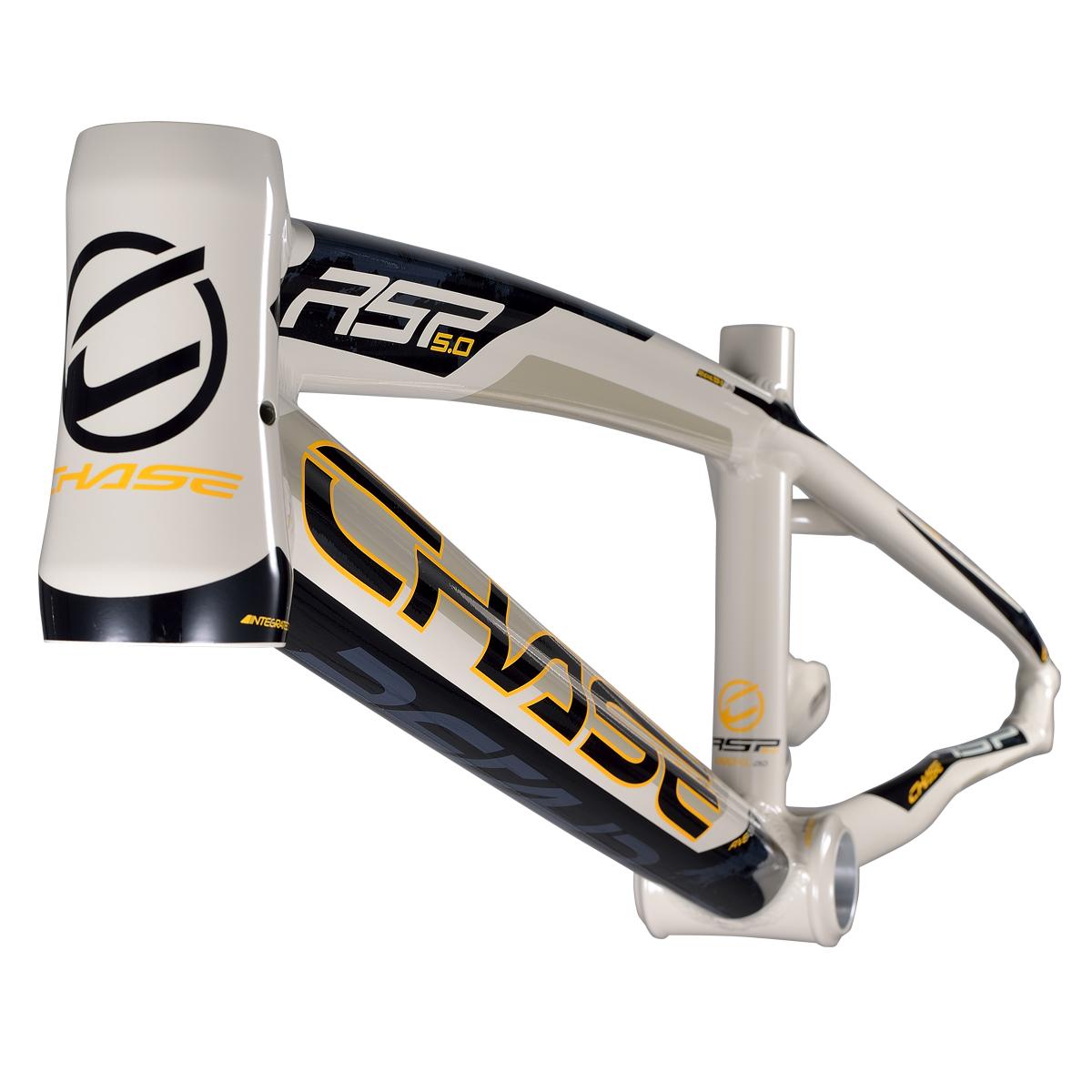

Frame RSP 5.0

The CHASE RSP 5.0 frame is the culmination of all the latest upgrades, making it our best aluminium frame to date. Continuing with the winning geometry used for years by pro riders Connor Fields and Joris Daudet, it is designed exclusively for disc braking, and its dropouts have been optimised to provide better clearance for a wide range of Post mount and Flat mount disc brake calipers.

FEATURES:
• 7005 T6 Aluminium frame (Premium Ultralight)
• Hydroformed double butted top tube
• Hydroformed triple butted down tube
• Seat tube with "Aero shape system" profile
• Rear stays with "muscle forming"
• New internal cable routing
• Exclusively compatible with Post Mount and Flat mount disc braking
• New closed CNC machined rear dropouts for better clearance for a wide range of disc brake calipers
• Sold with integrated tensioners for 10mm axle compatible only with female axle hubs, internal housing
• Sold separately: AERO seat clamp and post, Disc brake adapter

from Mini to Expert
• Integrated headset IS 42/42
• Euro BSA bottom bracket 68x73mm
• Compatible with AERO seat clamp and post 25.4mm

from Expert XL to Cruiser Pro+ and OS20 sizes
• Integrated tapered headset IS 42/52
• Press Fit bottom bracket 86x92mm
• Compatible with AERO seat clamp and post 27.2mm

MORE INFORMATION ON THE SITE CHASE

COMPATIBILITY:
• Integrated 1-1/8'' headset (from Mini to Expert)
• Tapered integrated headset Top 1-1/8'' - Bottom 1.5'' (from Expert XL)
• Euro BSC/BSA bottom bracket (from Mini to Expert)
• Press Fit BB86 bottom bracket (from Expert XL)
