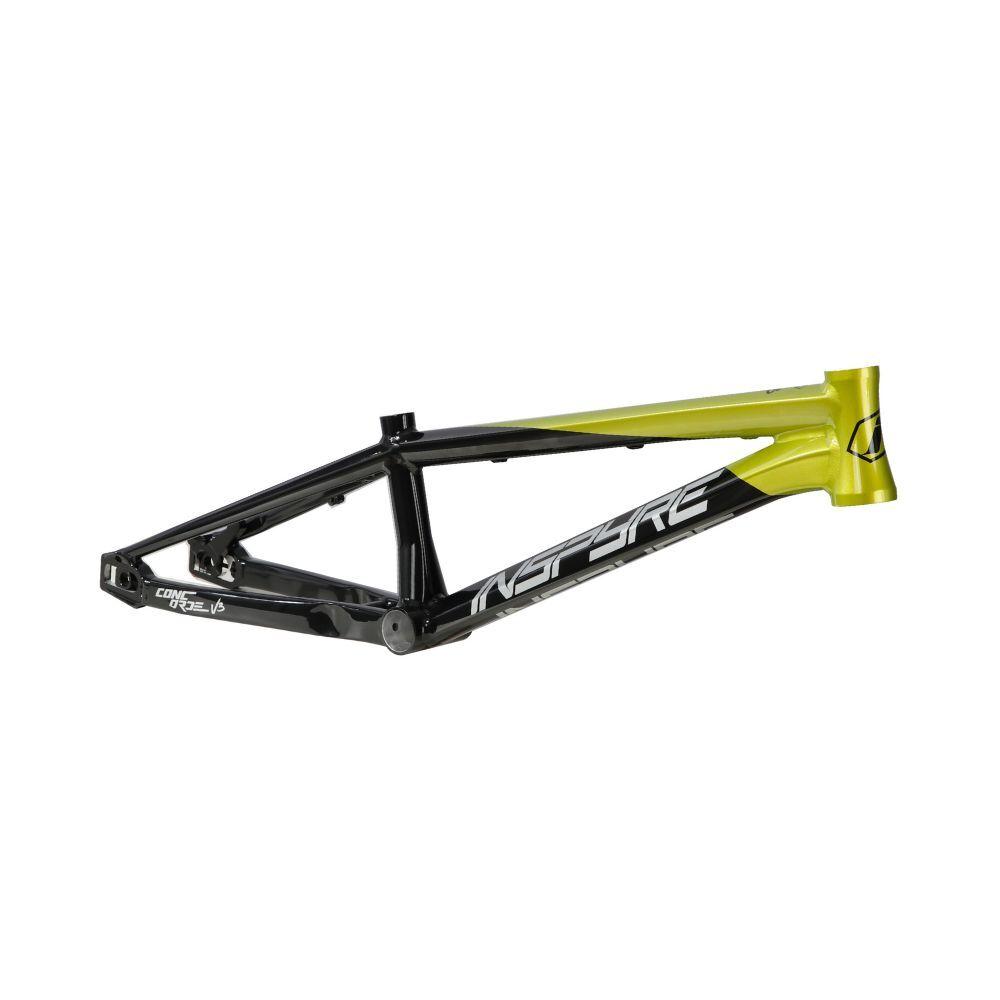

Name: Frame Inspyre Concorde V3
Brand: Inspyre
SKU: MAG11736345
Price: 573.04 GBP
Availability: InStock

Discover the all-new frame Inspyre Concorde V3, the result of two years of intensive testing and development in collaboration with the Inspyre team. Completely rethought, it stands out as one of the most advanced aluminium frames on the BMX Race market.

The Concorde V3 features entirely new tubes throughout the frame, except for the diagonal tube. Each tube of this frame has been meticulously hydroformed to achieve an optimal balance between lightness, strength and aerodynamics. The attention to detail is evident in the innovative design of the junction between the diagonal tube, the bottom bracket and the rear stays. This junction, the widest on any current aluminium BMX Race frame, is the result of precise engineering by the Inspyre team.

The generous cross-section and smooth transitions ensure optimal load distribution, creating a structure with exceptional lateral stiffness. This increased stiffness significantly improves pedalling efficiency, ensuring optimal power transfer to the drivetrain. By minimising frame flex, the Concorde V3 maximises energy return for an unmatched riding experience on BMX tracks. The use of tubes with varying thicknesses represents a major advancement, allowing for weight reduction of the Concorde V3 without compromising its overall strength and rigidity. Thanks to this innovation and the new tubes, the Concorde V3 is now 15% lighter than its predecessor, the V2.

The aesthetics of the Concorde V3 have been carefully crafted. This new model is distinguished by flat welds, providing an exceptionally high-quality finish. No detail has been overlooked in the painting process, featuring stickers under varnish for an added touch of refinement. Every element has been considered to ensure not only optimal performance but also an elegant and polished visual appearance.

Its brand new CNC-machined hourglass-shaped head tube brings a completely new dynamic to the bike. Following the IS 45x45 standard, we recommend using PRIDE RACING headset sets that fit perfectly with the shape of the head tube. The head tubes of the Concorde remain low, measuring 110 mm for children and 115 mm for adults. Why? To lower the handlebars as much as possible, promoting an aggressive position at the start and on the track.

The new oversized rear stays offer increased stiffness, and our assembly of stays with a wide bottom bracket further contributes to this robustness. The stays fit perfectly across the width of the bottom bracket to provide maximum lateral stiffness.

The Junior, Expert and Expert XL versions have specific tubes suited to the morphology of young riders, ensuring a bike that is less rigid and less heavy than the adult version. After all, our young riders are lighter and less powerful, so why offer the same tubes and structure?

The SWELL rear dropout system has been completely rethought to provide an improved user experience. The SWELL V2 dropouts offer a real adjustment range of 25 mm. The internal plates made of 7075-T6 aluminium that compose the dropout stay in place even when you remove the wheel, providing optimal user comfort during maintenance. The chain tension system is operated using two CNC-machined knobs, all mounted on a stainless steel axle. The disc dropout is of the postmount standard for a 120 mm disc; however, it is possible to ride with a 140 mm thanks to a +20 mm spacer. This dropout is supplied as standard for a 15 mm thru-axle (sold separately). Adapters from 15 mm to 10 mm are included with the frame.

Additionally, this dropout is compatible with the latest ADS chain tensioner, offering the possibility to adjust your wheelbase regardless of your gear ratio.

With this frame, Inspyre redefines performance standards in BMX Race, providing riders with an exceptional platform to push their limits on the track.
