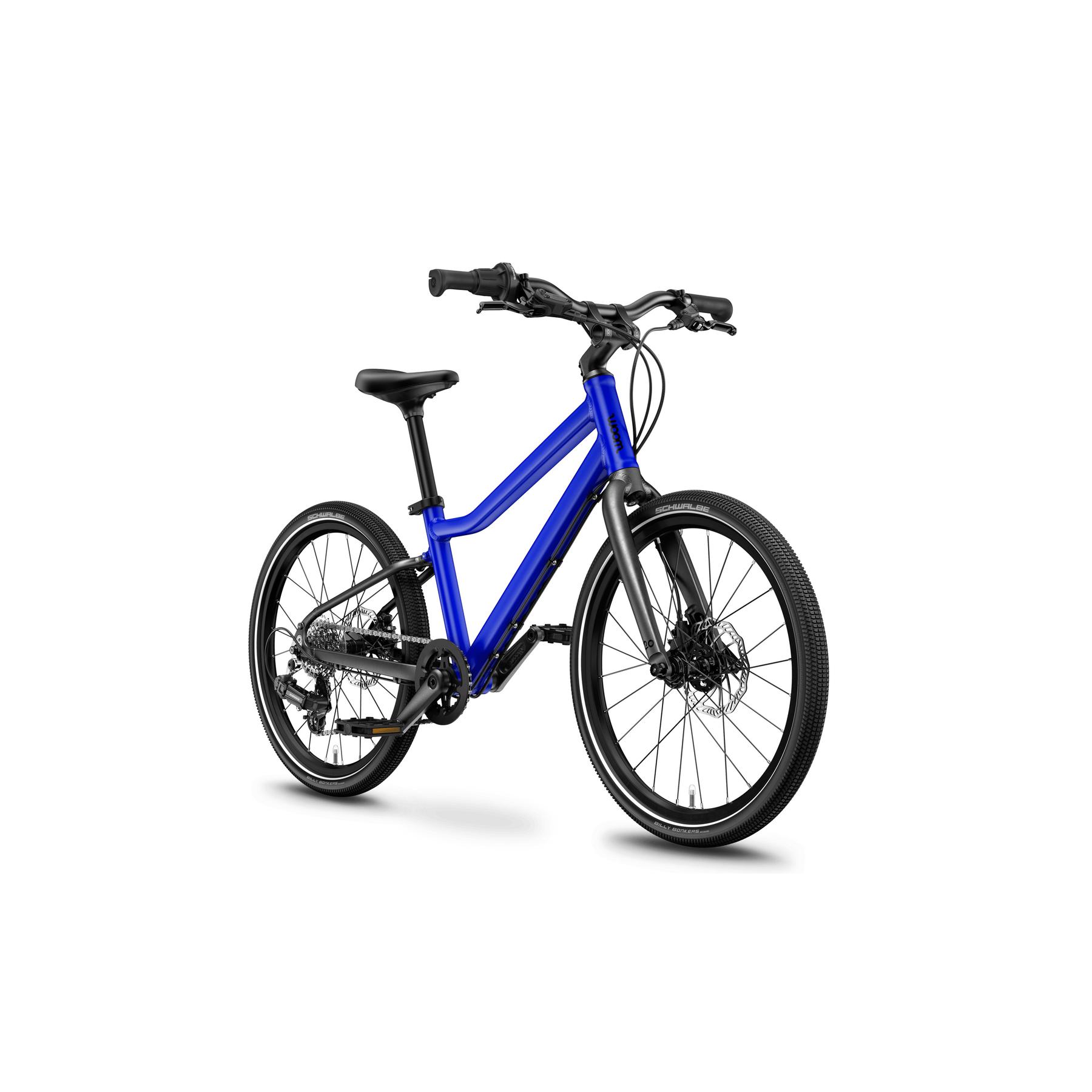

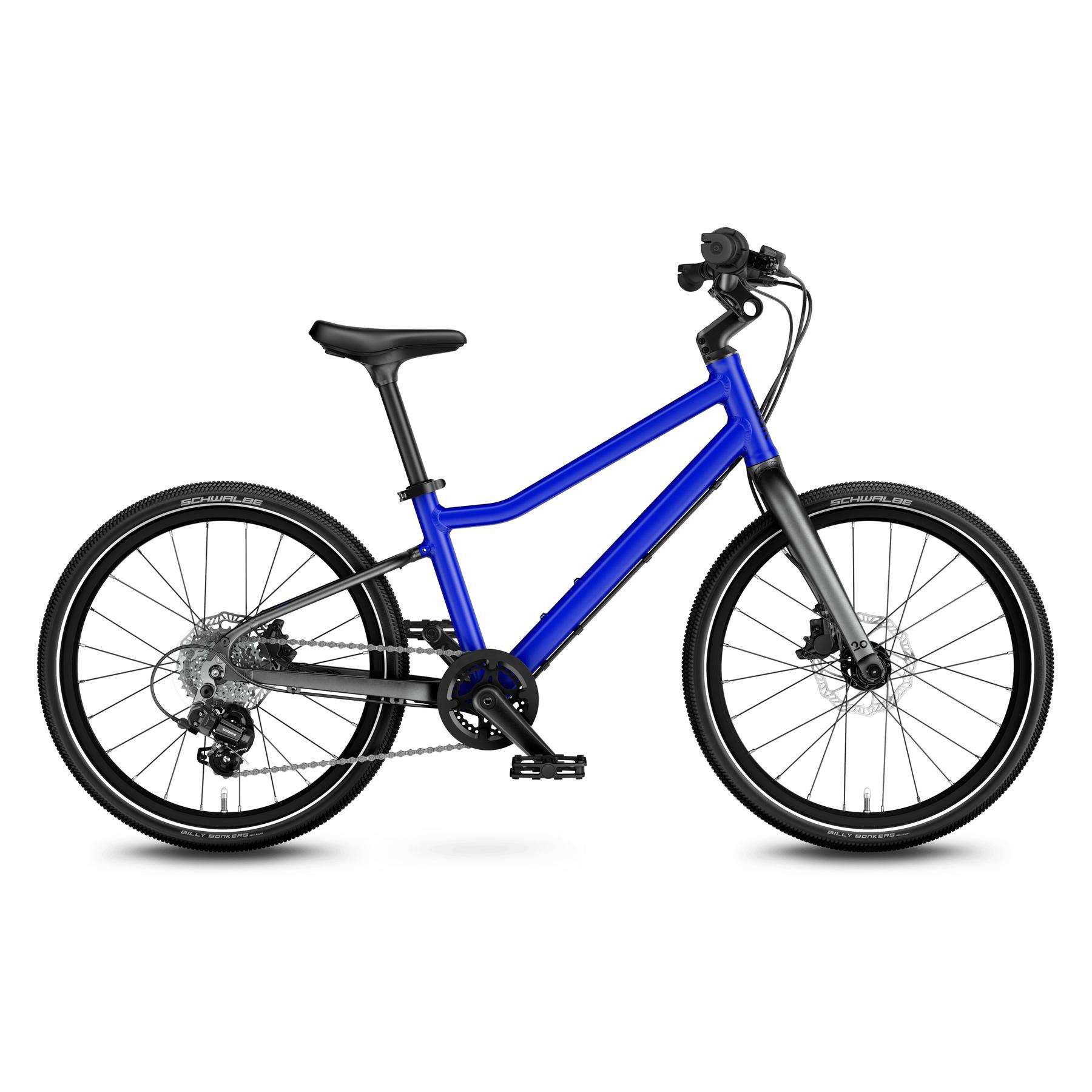

Kids' bike Explore 4 Gen

Frame

• Frame material: lightweight AA-6061 aluminium, premium finish with tapered tubes
• Wheel size: 20 inches
• Sporty geometry designed for kids, with a relaxed bend and angular frame tubes ensuring a unique look and a comfortable riding experience

Gear System

• 7 speeds
• Shimano Tourney RD-TY200-SS derailleur

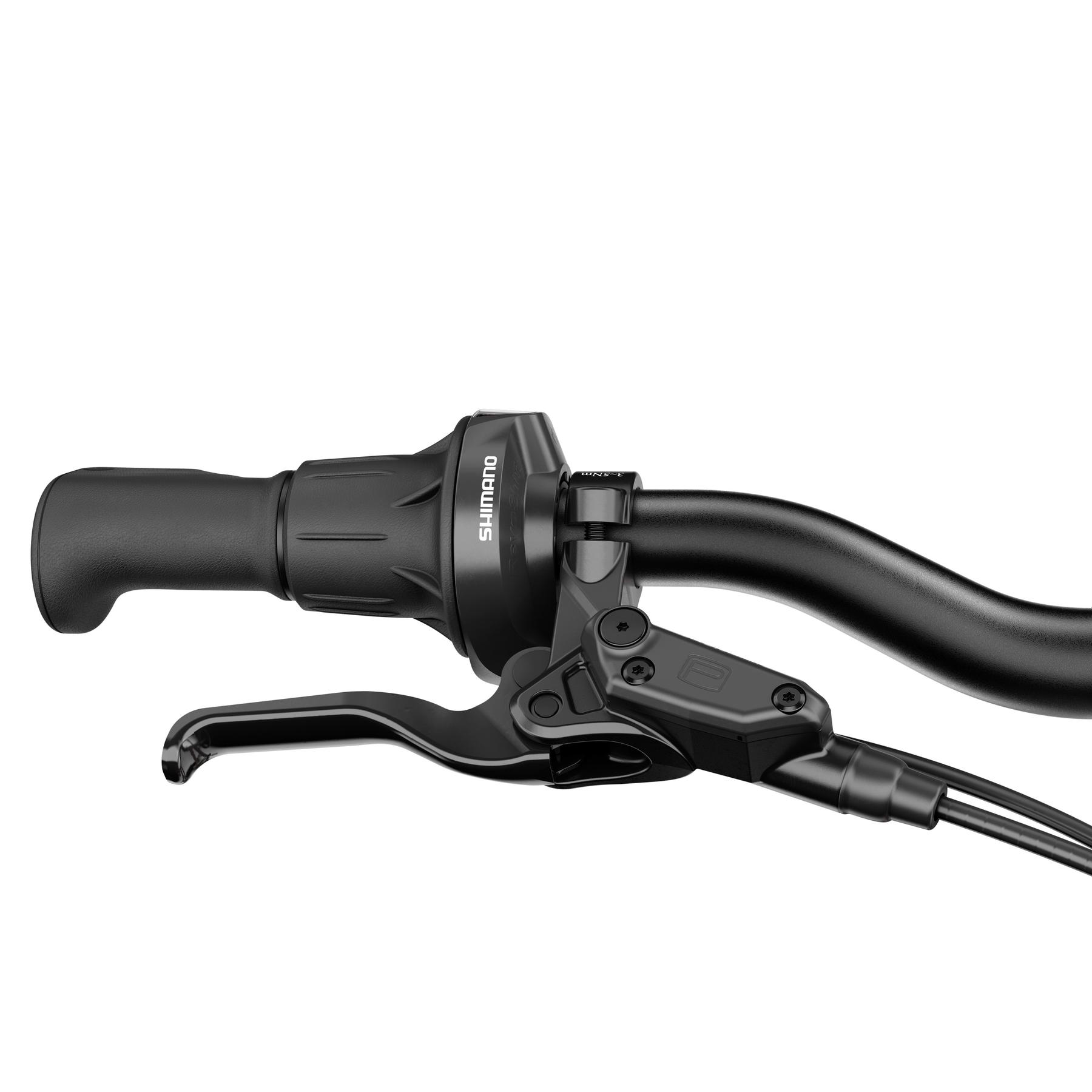

• Shimano SL-RV300 Revoshift twist shifter

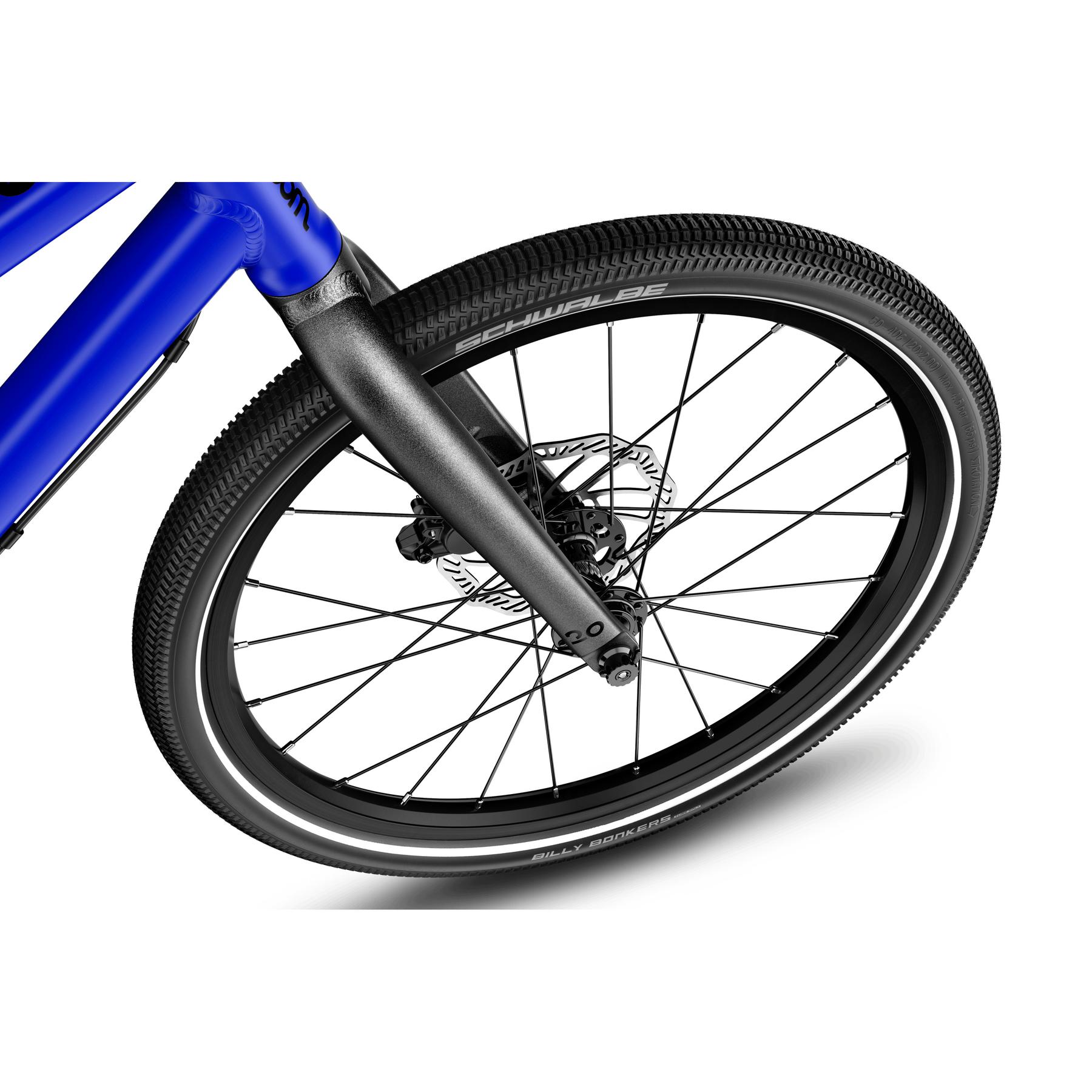

Fork

• Lightweight Unicrown aluminium fork
• 1-inch axle
• Generous rake for easy handling

Wheels

• Ultra-lightweight aluminium rims
• Aluminium hubs with sealed bearings and removable fender mounts woom
• Quick-release front axle for easy mounting and dismounting
• Bolt axle at the rear
• 24 lightweight and extra-robust double-crossed stainless steel spokes

Headset

• Fully integrated 1-inch headset
• Sealed industrial bearings
• Integrated Ahead cap

Tyres

• 20 × 1.5" soft bead Billy Bonkers (Performance Line) tyres from Schwalbe
• Agile, grippy, and smooth-rolling off-road tyres
• Optimal visibility even in low light thanks to reflective stripes on the sides

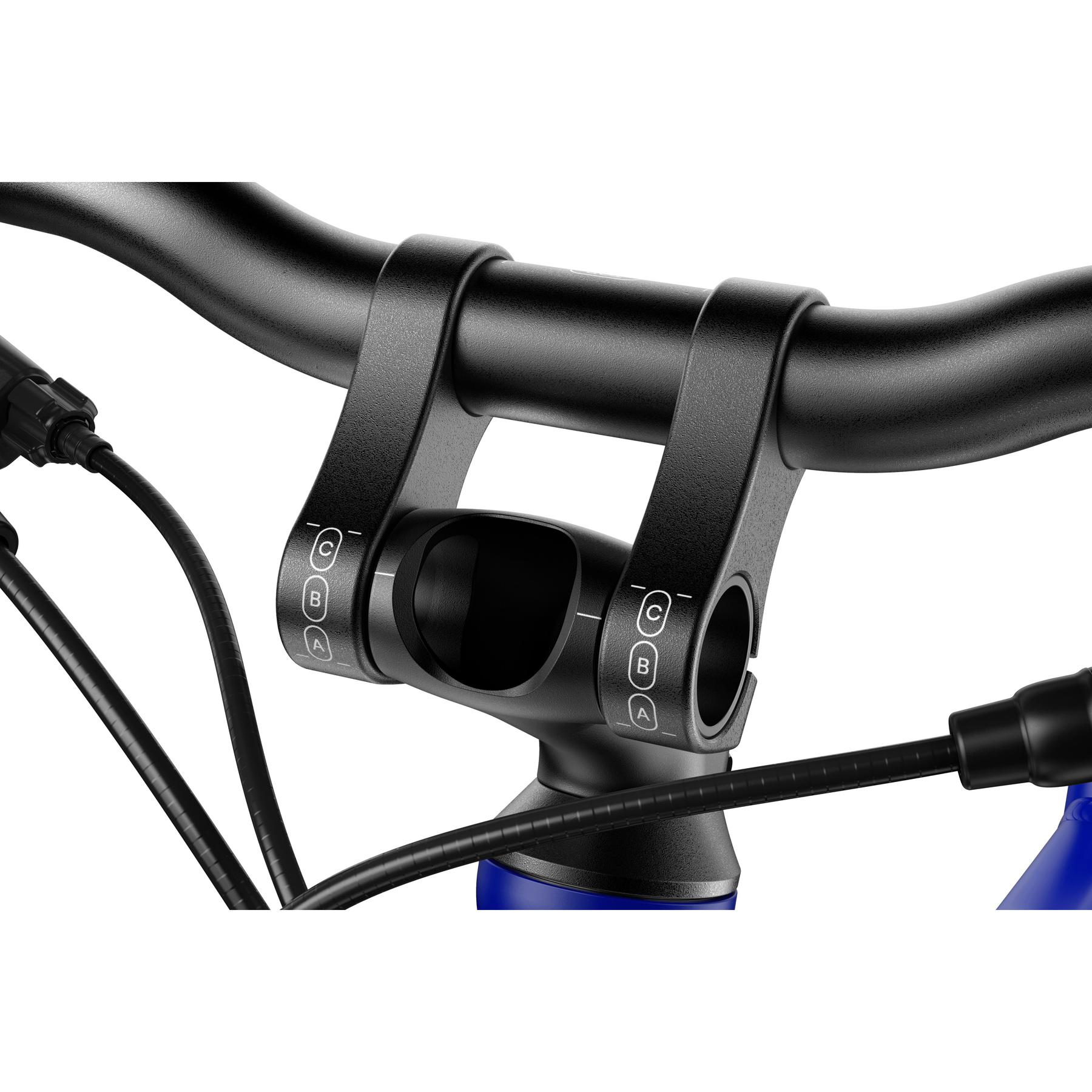

Stem

• Ultra-lightweight forged aluminium stem
• Adjustable height and length stem for an optimal seating position throughout usage
• Handlebars secured with two clamps and bolted with two hex screws (5 mm)
• Handy ABC markings for optimal adjustments of the handlebars according to saddle height

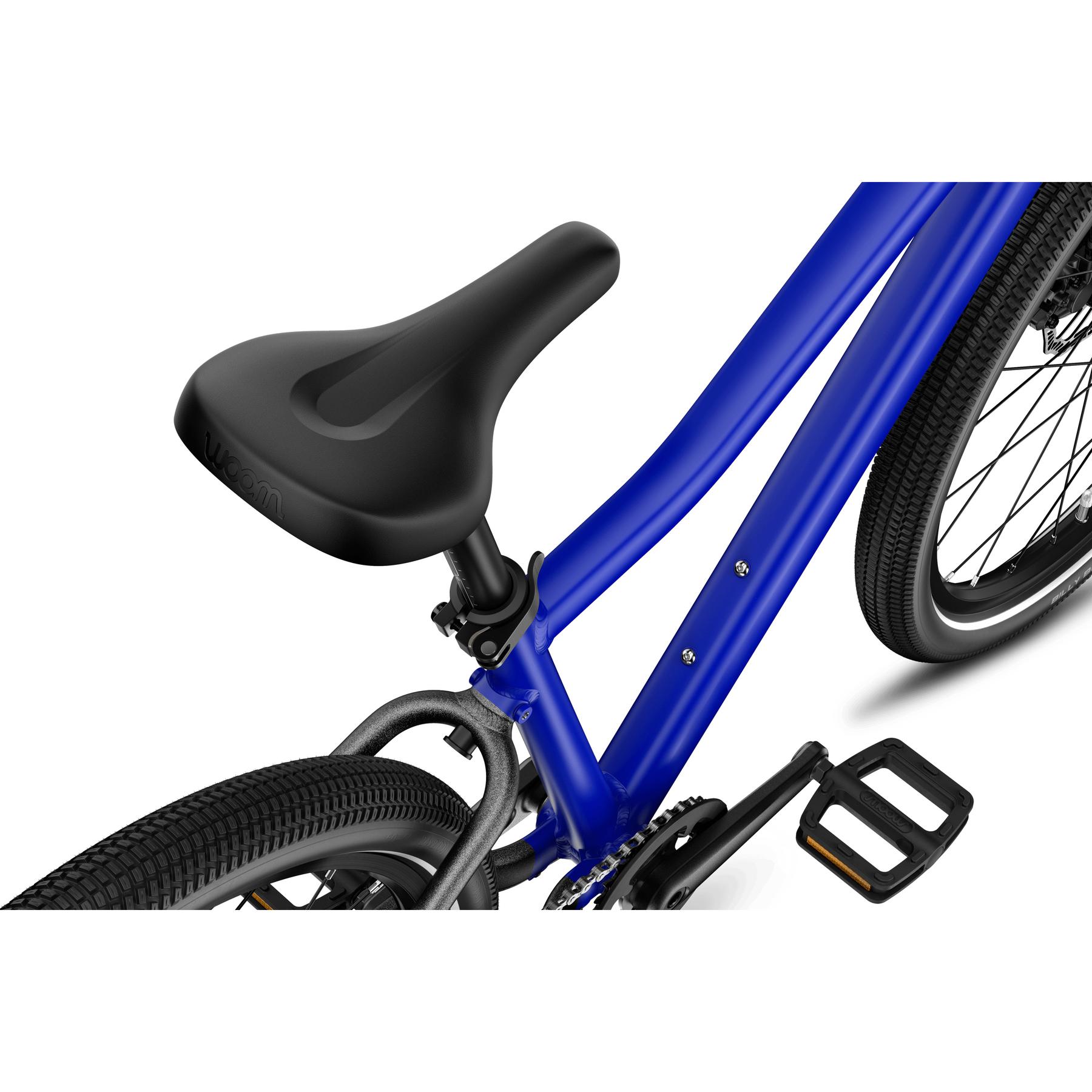

Saddle

• Ultra-comfortable
• Ergonomically designed for each age group/bike size
• Developed in collaboration with Selle Royal

Handlebar

• Wide, ergonomic, and lightweight aluminium handlebars, particularly slim at the ends for a narrow grip diameter suitable for children
• Sanded and anodised black
• Width: 550 mm

Seat Post

• Anodised aluminium seat post with indication of the maximum allowed extension
• Useful ABC markings for optimal adjustments of saddle height according to the stem/handlebar

Grips

• Ergonomic grips
• Particularly narrow grip diameter suitable for children
• Comfort zone for more ease during long rides
• Grips bolted for a perfect hold on the handlebars.

Seat Clamp

• Made of aluminium
• Long quick-release lever, can also be operated with little force
• No risk of saddle rotation
• Integrated guide in the seat tube to protect against scratches on the seat post

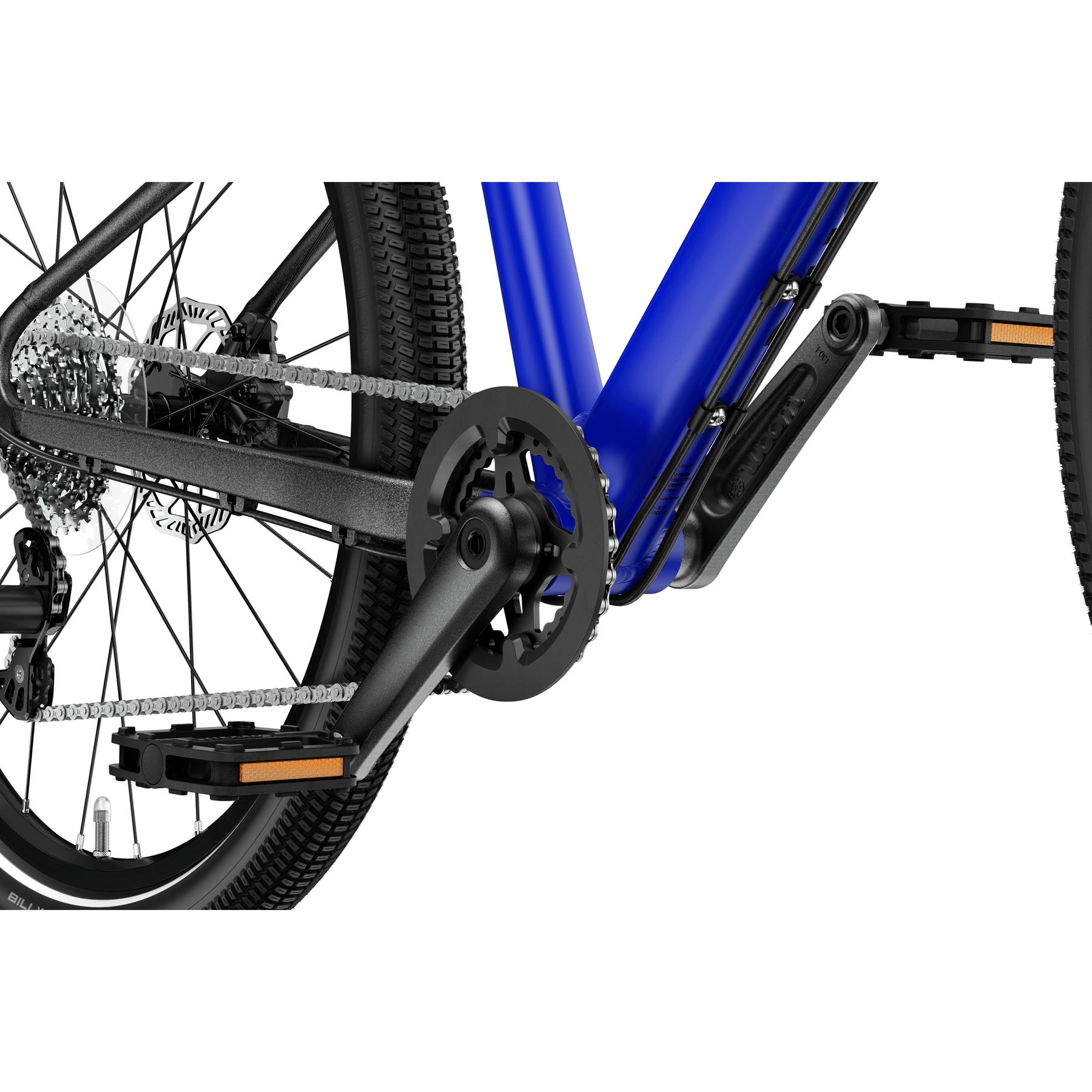

Transmission System

• Lightweight forged aluminium crankset with a length of 110 mm and a narrow pedal spacing (Q factor)
• 28-tooth narrow-wide chainring
• 11 to 28-tooth cassette
• Narrow and flat plastic pedals
• Encapsulated cartridge bearing

Brakes

• Flatmount hydraulic disc brakes from Promax
• Front/rear diameter: 140/140 mm
• Ergonomic and adjustable brake levers, suitable for children's hands

Included Tools

• 15 mm flat wrench for the pedals
• 4 mm hex key for the stem

Colours

woom red, magnetic blue, jungle green, neon coral

Weight

7.8 kg (without pedals)

Weight Limit

Maximum load of 62 kg
