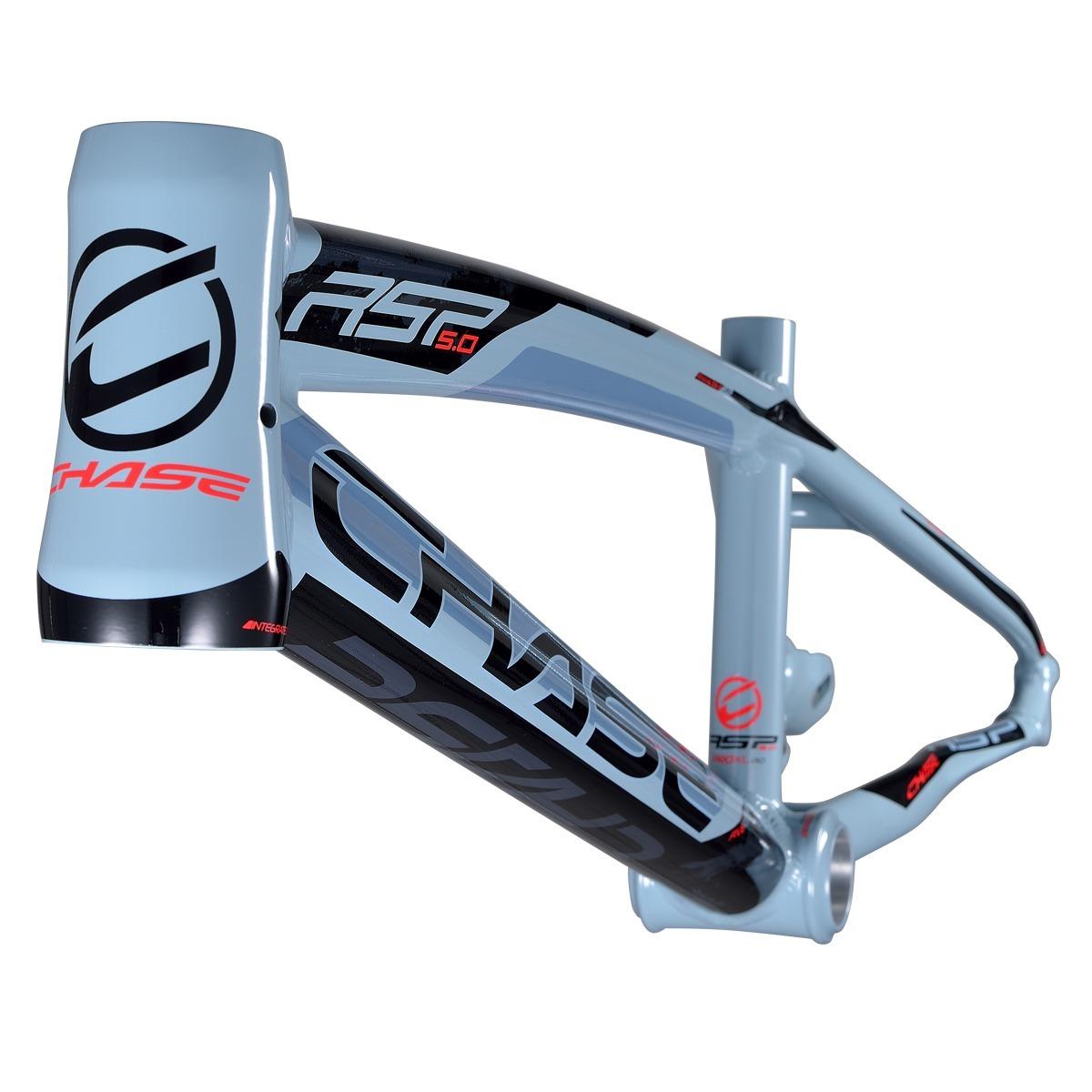

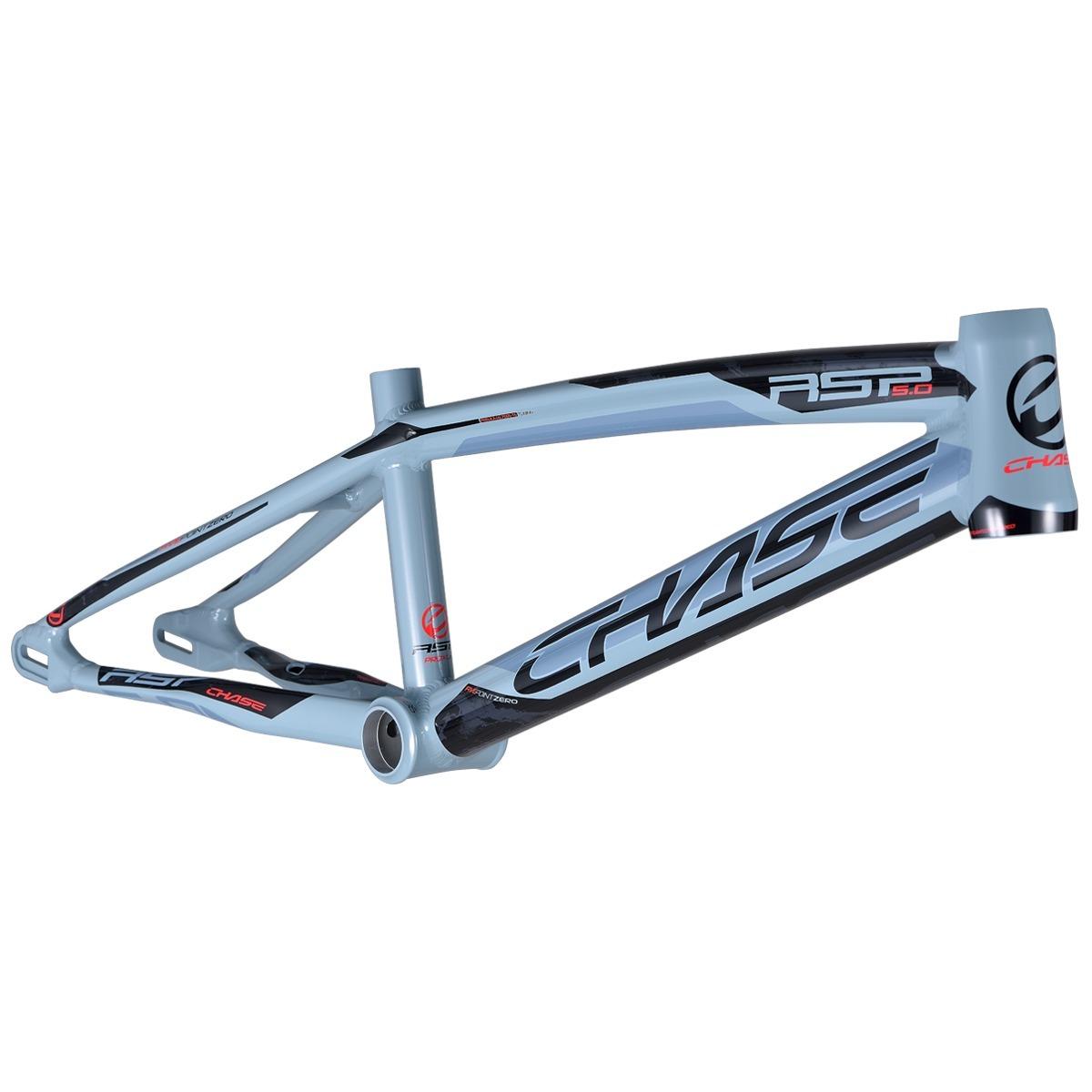

Frame Rsp5.0 20.75" Direction Od 1-1/8"

The CHASE RSP 5.0 frame is the culmination of all current upgrades to make it our best aluminum frame yet. Still using the winning geometry used for years by pro riders Connor Fields and Joris Daudet, it is designed exclusively for disc braking and its dropouts have been optimized, now offering better clearance for a wide range of Post mount and Flat mount disc brake calipers.

Features:

• Alumium 7005 T6 frame (Premium Ultralight)


• Double-butted hydroformed top tube


• Triple-butted hydroformed down tube


• Profile seat tube Aero shape system


• Muscle forming" rear stays


• New internal cable routing


• Compatible exclusively for Post Mount and flat mount disc braking


• New CNC-machined closed rear lugs to offer improved clearance for a wide range of disc brake calipers


• from Mini to Expert


• IS 42/42 integrated head tube


• Housing Euro BSA 68x73mm


• Compatible with clamp and seatpost AERO 25.4mm


• from Expert XL to Cruiser Pro+ and sizes OS20


• Integrated IS 42/52 tapered head tube


• Press Fit 86x92mm housing


• Compatible with clamp and seatpost AERO 27.2mm

FURTHER INFORMATION AT CHASE

COMPATIBILITY:
- Integrated headset 1-1/8'' (from Mini to Expert)
- Integrated tapered headset Top 1-1/8'' - Bottom 1.5'' (from Expert XL)
- Bottom bracket Euro BSC/BSA (from Mini to Expert)
- Bottom bracket Press Fit BB86 (from Expert XL)
