Frame M2

FRAME SPEEDCO M2

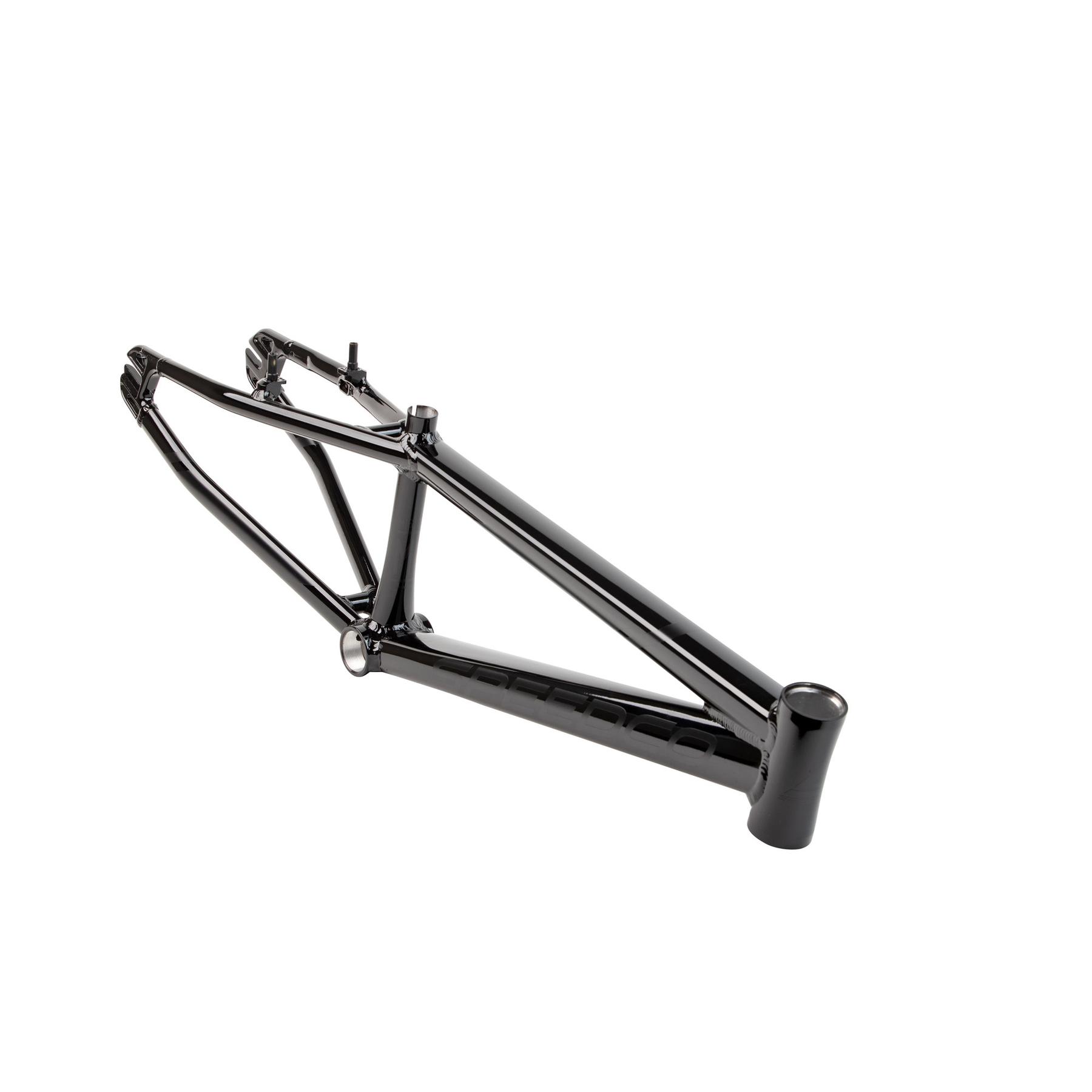

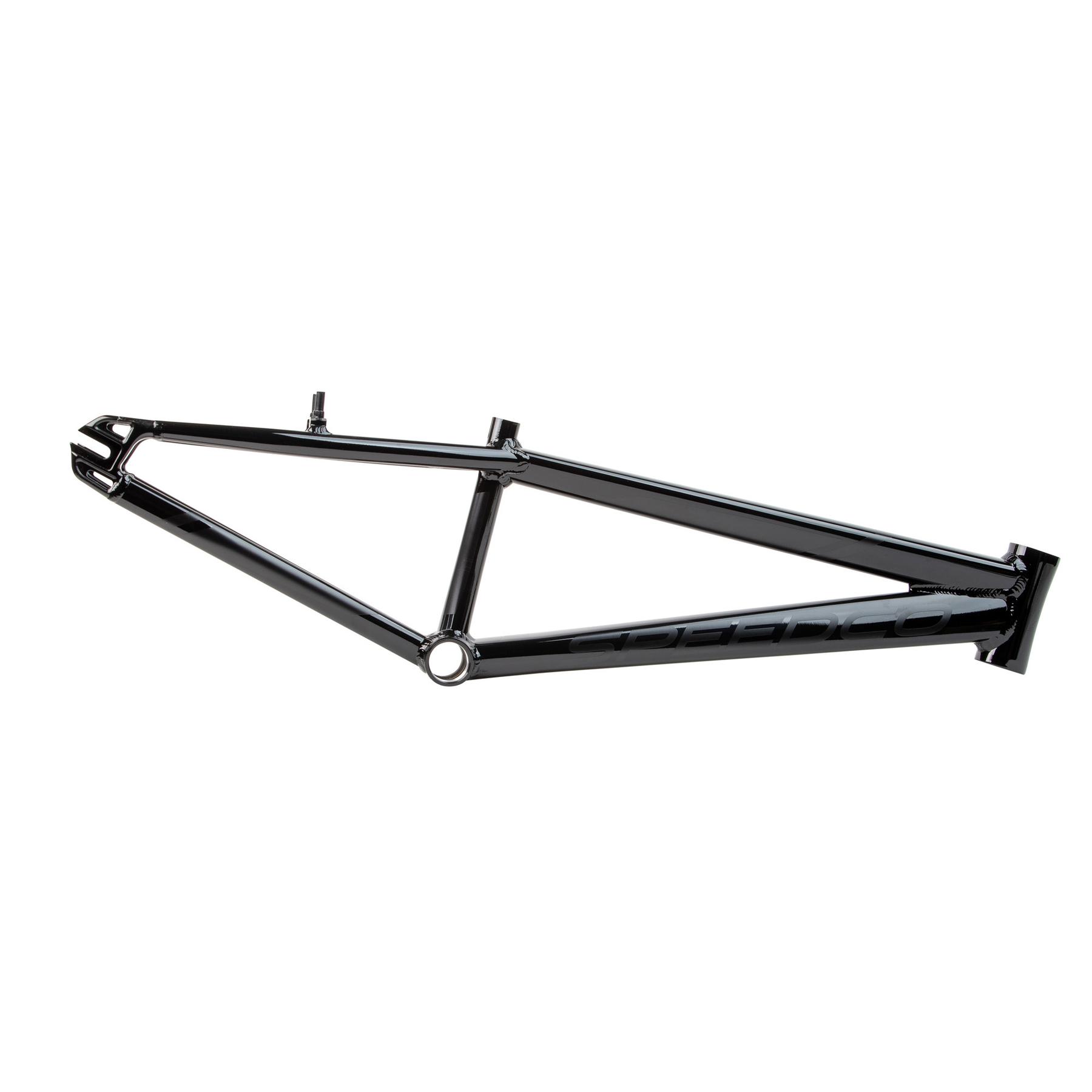

The range of aluminium frames Speedco M2 is back with an update. It is aesthetically designed to resemble the brand's flagship model, the Velox Evo Carbon. The tubes are made from double butted 7005 aluminium and heat-treated to reduce weight and increase strength. The down tube of the M2 frames is oversized and slightly tapered according to size to improve responsiveness and ensure maximum rigidity. The width of the stays follows this logic, as these frames are designed for maximum performance from the get-go and in turns. Aesthetically, this frame features internal routing for the brake line, running from the front of the top tube up to the mid-height of the seat stays. Finally, an integrated chain tensioner will keep the rear wheel locked even under maximum power. The frame is compatible with PostMount standard brake calipers, which provides more clearance at the disc. The disc diameter is to the 120mm standard.

Size Mini to Expert XL

• - Headset: Straight pivot - IS42/28.6 - IS42/30
• - Bottom bracket: Euro/BSA
• - Seat post: 22.2mm
• - Dropouts: 10mm
• - Braking: V-brake or disc (brake mount sold separately)
• - Rear axle: 10mm (only)
• - Chain tensioner: integrated

Size Pro to Cruiser Pro XXL

• - Headset: Tapered pivot - IS42/28.6 - IS52/30-40
• - Bottom bracket: BB86 Ø41mm
• - Seat post: 27.2mm
• - Rear axle: 10/15/20mm (axle sold separately)
• - Braking: Disc only (brake mount included)
• - Chain tensioner: integrated

• SIZE: Mini 20", Junior 20", Expert 20", Expert XL", Junior 24", Expert 24", Pro, Pro XL, Pro 2XL, Pro 3XL, Pro 4XL, Pro 5XL, Pro XL 24", Pro XXL 24"
• TOP TUBE: 17", 18", 19.25", 20", 18.75, 20", 20.5", 21", 21.75", 22", 22.5", 23", 21.75", 22.5"
• BOTTOM BRACKET HEIGHT: 10.6", 10.75", 11", 11.5", 11.2", 11.5", 11.5", 11.5", 11.5", 11.5", 11.5", 11.5", 12", 12"
• REAR STAYS (Centre): 13.5", 13.75, 14", 14.25", 15", 15", 14.72", 14.72", 15.2", 15.2", 15.2", 15.2", 15.45", 15.45"
• SEAT TUBE ANGLE: 70°, 70°, 70°, 70°, 69.5°, 69.5°, 72°, 72°, 72°, 72°, 72°, 72°, 69.5°, 69.5°
• HEAD ANGLE: 73°, 73°, 73°, 73°, 73°, 73°, 74°, 74°, 74°, 74°, 74°, 74°, 73°, 73°
