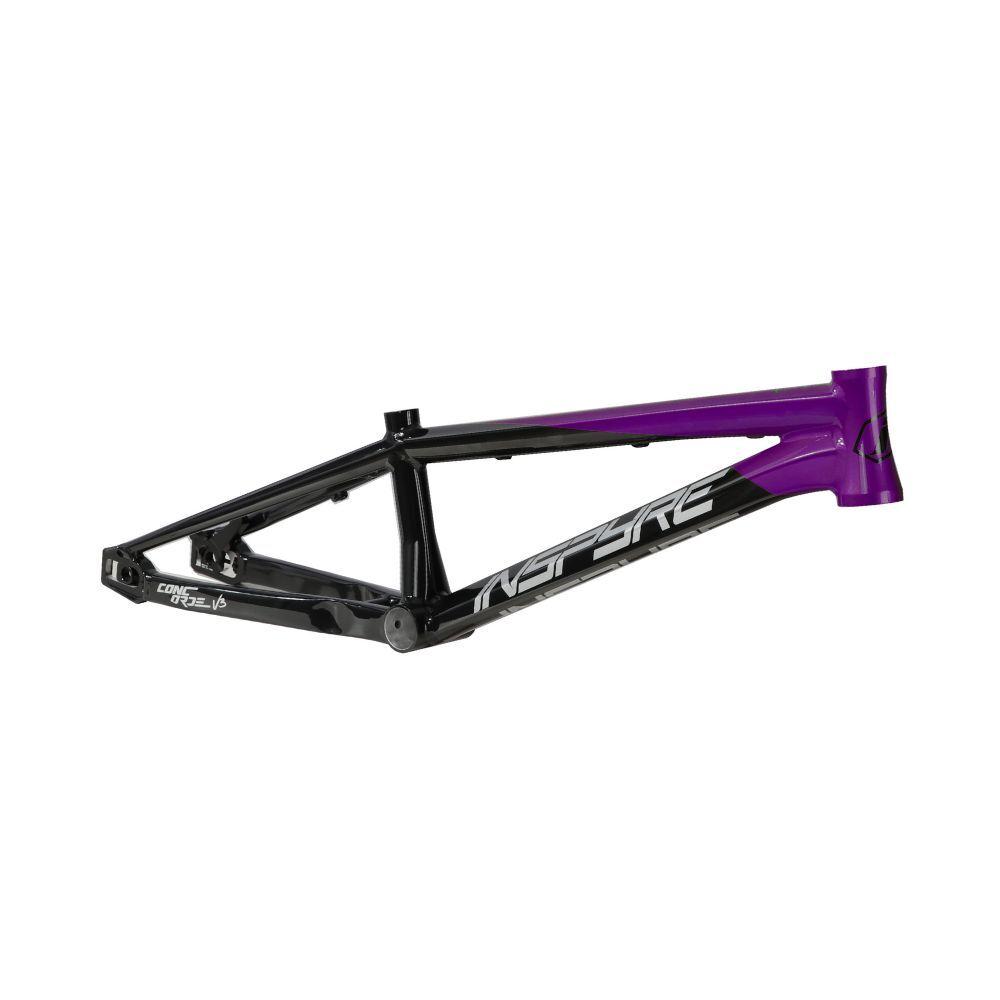

Concorde BMX Frame V3

Discover the all-new Inspyre Concorde V3 frame, the result of two years of intensive testing and development in collaboration with the Inspyre team. Completely redesigned, it stands out as one of the most advanced aluminium frames in the BMX Race market.

The Concorde V3 features brand new tubes across the frame except for the down tube. Each tube of this frame has been meticulously hydroformed to achieve an optimal balance between lightness, strength, and aerodynamics. The attention to detail is particularly evident in the innovative design of the intersection between the down tube, bottom bracket, and rear stays. This intersection, the widest on any current aluminium BMX Race frame, is the result of precise engineering by the Inspyre team.

The generous cross-section and smooth transitions ensure optimal load distribution, creating a structure with exceptional lateral stiffness. This increased stiffness significantly improves pedalling efficiency, ensuring optimal power transfer to the drivetrain. By minimising frame flex, the Concorde V3 maximises energy return, providing an unparalleled riding experience on BMX tracks. The use of tubes with varying thicknesses represents a major advancement, allowing the weight of the Concorde V3 to be reduced without compromising its overall strength and rigidity. Thanks to this innovation and the new tubes, the Concorde V3 is now 15% lighter than its predecessor, the V2.

The aesthetics of the Concorde V3 have been carefully crafted. This new model is distinguished by flat welds, providing an exceptional quality finish. On the painting side, no detail has been overlooked, with the application of coated stickers adding an extra touch of refinement. Every element has been considered to ensure not only optimal performance but also an elegant and polished visual appearance.

Its brand new CNC machined hourglass-shaped headset brings a completely new dynamic to the bike. In line with the IS 45x45 standard, we recommend the use of PRIDE RACING headsets that fit perfectly with the shape of the head tube. The head tubes on the Concorde remain low, measuring 110 mm for children and 115 mm for adults. Why? To drop the handlebar position as low as possible, encouraging an aggressive stance at the start and on the track.

The new oversized rear stays provide increased stiffness, and our stay assembly with a wide bottom bracket further contributes to this robustness. The stays fit perfectly across the full width of the bottom bracket to offer maximum lateral stiffness.

The Junior, Expert, and Expert XL versions feature specific tubes adapted to the morphology of younger riders, ensuring a bike that is less rigid and lighter than the adult version. After all, our young riders are lighter and less powerful, so why offer the same tubes and structure?

The SWELL rear dropout system has been completely rethought to provide an improved user experience. The SWELL V2 dropouts offer a real adjustment range of 25 mm. The internal plates made of 7075-T6 aluminium that make up the dropout stay in place even when you remove the wheel, providing optimal ease of use during maintenance. The chain tensioning system is accomplished using two CNC machined knobs, all mounted on a stainless steel axle. The disc mount is to the post mount standard for a 120 mm disc; however, it is possible to ride with a 140 mm disc thanks to a +20 mm adapter. This dropout is supplied as standard for a 15 mm thru-axle (sold separately). 15mm to 10mm adapters are provided with the frame.

Moreover, this dropout is compatible with the latest ADS chain tensioner, allowing you to adjust your wheelbase regardless of your setup.

With this frame, Inspyre redefines the performance standards in BMX Race, providing riders with an exceptional platform to push their limits on the track.

SPECIFICATIONS:

• Frame 100% aluminium 6061-T6
• Hydroformed tubes with multiple thicknesses
• Compatible only with "Post Mount" hydraulic brakes
• BSA 68 or BB86 bottom bracket according to sizes - see the table below
• Compatible with the ADS chain tensioner from Inspyre
• Supplied with 15mm disc dropout and 15mm/10mm adapters
• 15mm axle not included - sold separately

• CONCORDE V3: Junior, Expert, Expert XL, Pro, Pro XL, Pro 2XL, Pro 3XL, Pro 4XL, PRO XL Cruiser, PRO XXL Cruiser,,,
• RIDER AREA: A, mm, 526, 544, 559, 563, 575, 585, 596, 611, 617, 639,
• DOWNTUBE: B, mm, 480, 505, 520, 528, 542, 553, 566, 584, 572, 593,
• TOP TUBE: C, Inches, 18.45, 19.5, 20.2, 20.65, 21.25, 21.75, 22.25, 23.21, 22.85,
• TOP TUBE: C, mm, 469, 495, 513, 525, 540, 552, 565, 584, 555, 580,
• REAR STAYS: D, Inches, (min / max), 13.3 / 14.3, 13.3 / 14.3, 13.3 / 14.3, 14.2 / 15.2, 14.4 / 15.4, 14.7 / 15.7, 15.3 / 16.3, 15.3 / 16.3, 15 / 16, 15.3 / 16.3
• REAR STAYS: D, mm, (min / max), 337 / 362, 337 / 362, 337 / 362, 360 / 385, 365 / 390, 373 / 398, 389 / 414, 390 / 415, 380 / 405, 390 / 415
