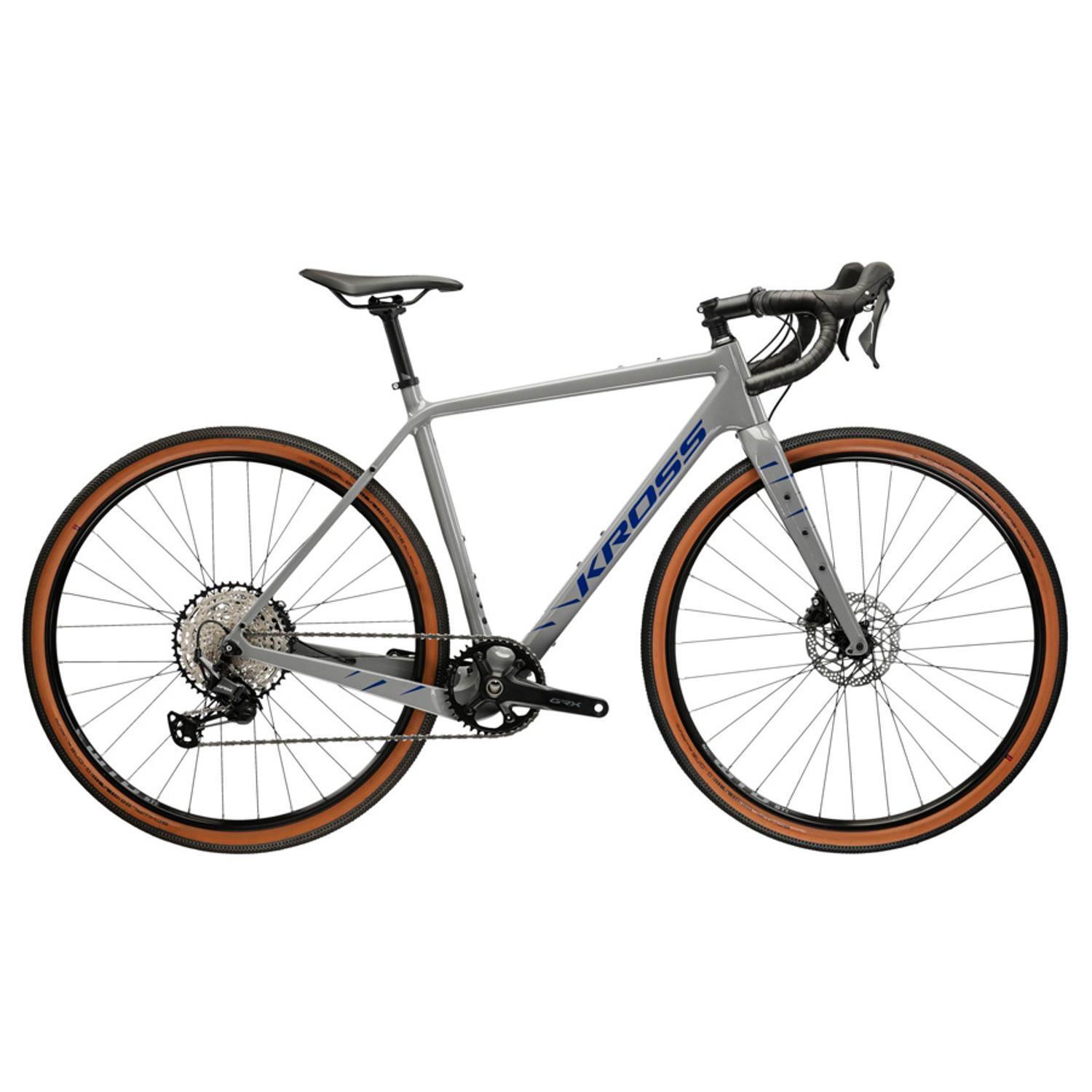

Gravel bike Esker

Equipped with fixing screws: 2 on the top tube, 2 under the horizontal tube, 6 on the fork, 4 for bottle/carry bag, 4 for the luggage rack.

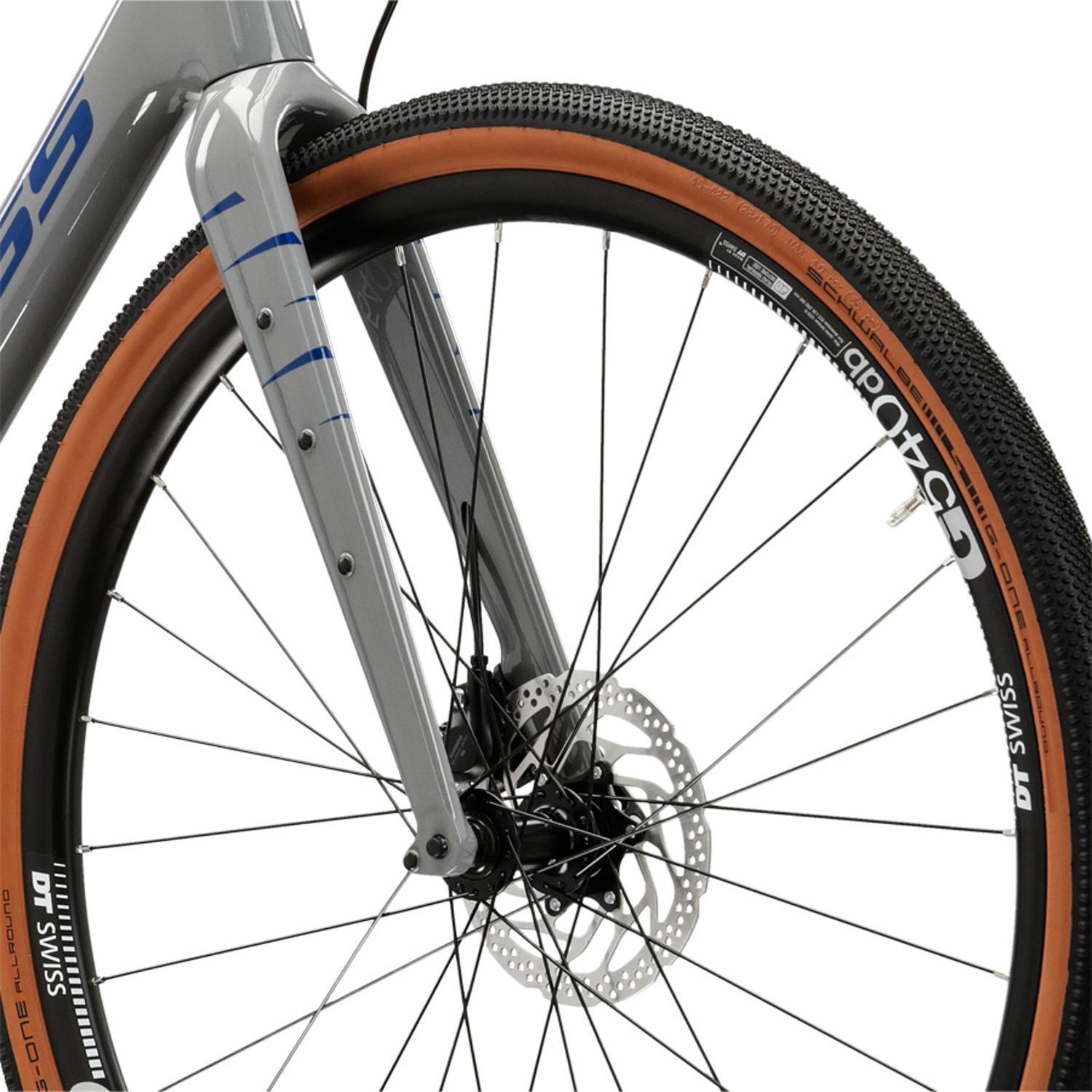

Wheels

Front hub: Shimano RS470 (thru-axle)
Rear hub: Shimano TC500 (thru-axle)
Rims: DT Swiss G 540 662x24
Tyres: Schwalbe G-One Allround 700x38C
Transmission/braking

Rear derailleur: Shimano GRX RX822

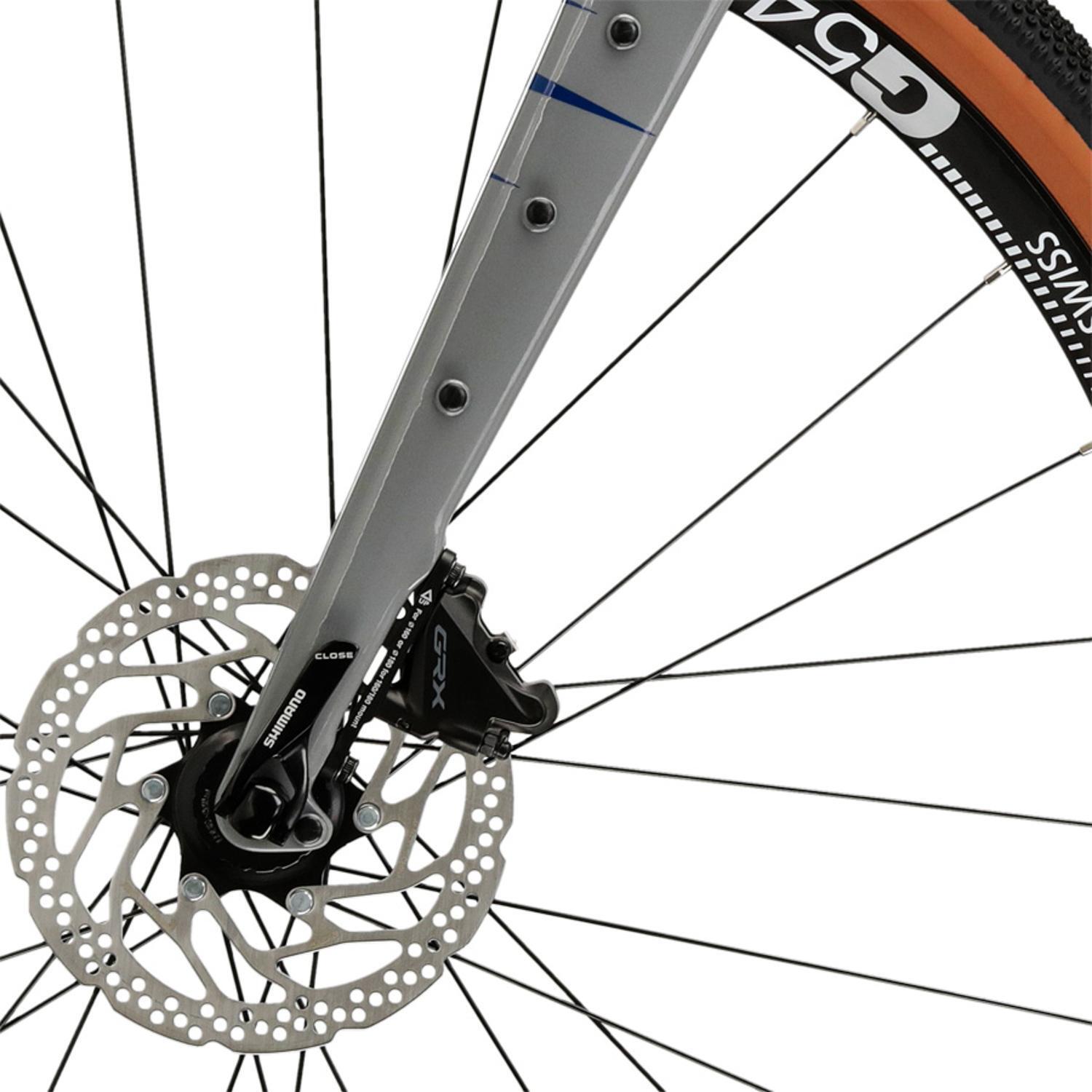

Brakes: Shimano GRX RX410 hydraulic discs
Brake levers: Shimano GRX RX610
Disc brakes: Shimano RT30 160 mm
Shifters: Shimano GRX RX610
Crankset: Double chainrings Shimano GRX RX610 40t / 175 mm
Bottom bracket: Shimano SLX M7101
Chain: Shimano M7100
Cassette: Shimano SLX M7101, 12-speed (10-51t)
Components

Handlebar: Aluminium 440 mm x 31.8 mm
Stem: Aluminium 90 mm / 31.8 mm / 12°
Seat post: Aluminium 350 mm x 27.2 mm
Saddle: Fizik Terra Argo X5
Seat post clamp: Screw type Kross
Headset: FSA Orbit ACB N°.42 Tapered
Handlebar tape: Kross Eva
Delivered without pedals

Size

L

Wheel size

700C / 28"

Frame size

21"

Seat tube

540 mm

Top tube

550 mm

Head tube

150 mm

Seat tube angle

74°

Head angle

71°

Chainstays

435 mm

Wheelbase

1027 mm

Reach

376 mm

Stack

568 mm

BB Drop

67 mm
