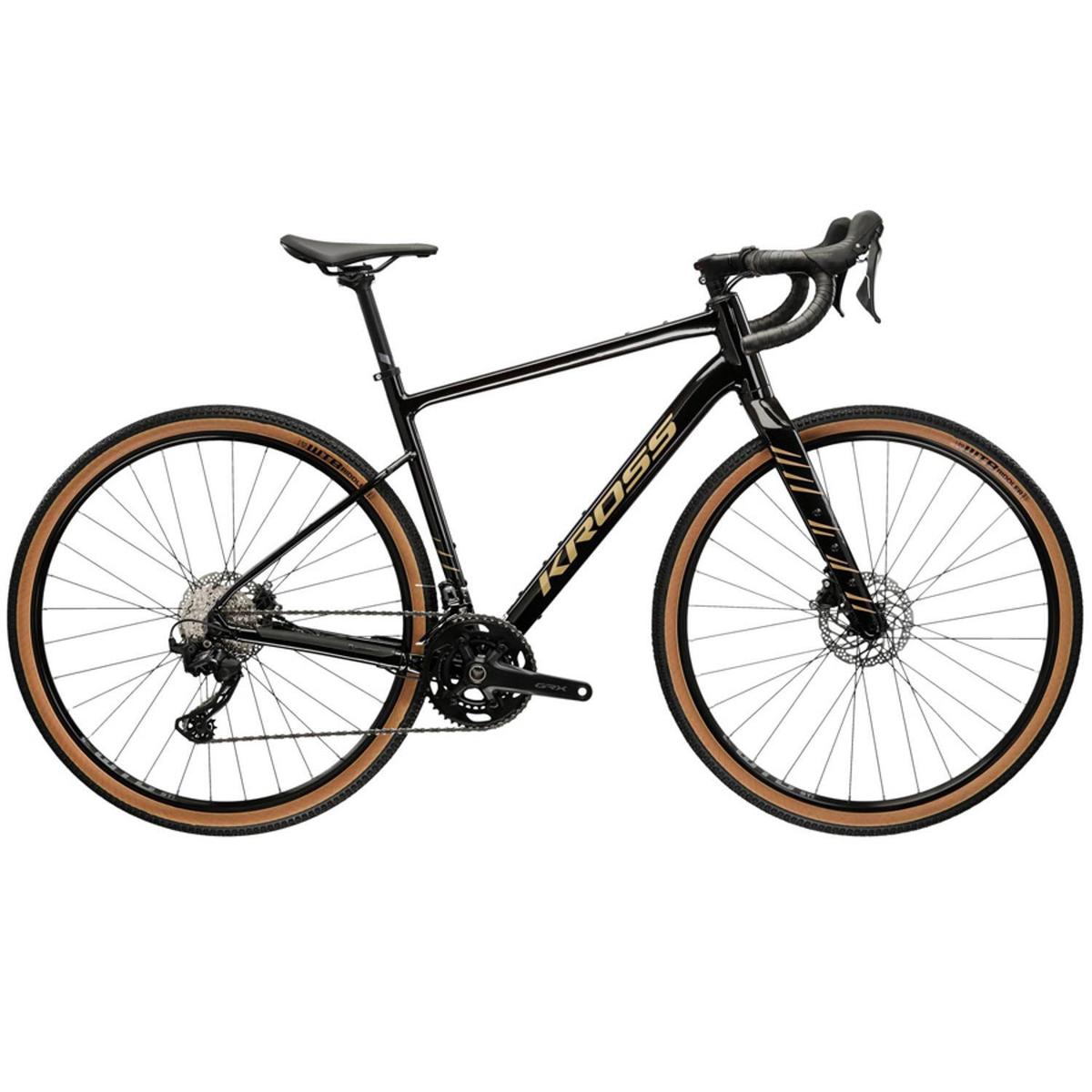

Gravel bike Esker

Size: M (19" - 48 cm)
Frame: Aluminium Performance

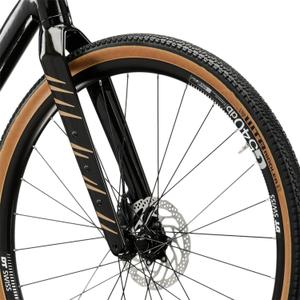

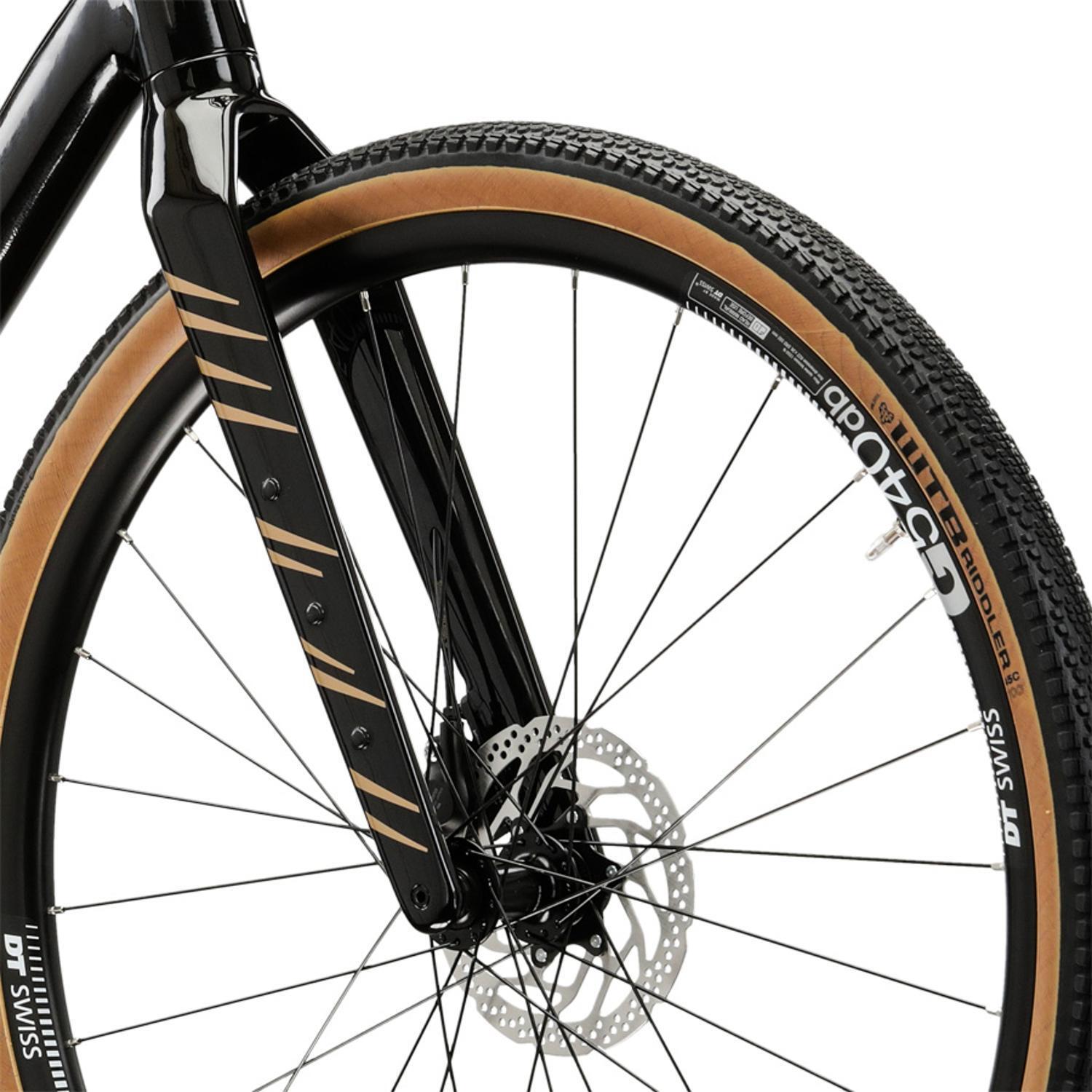

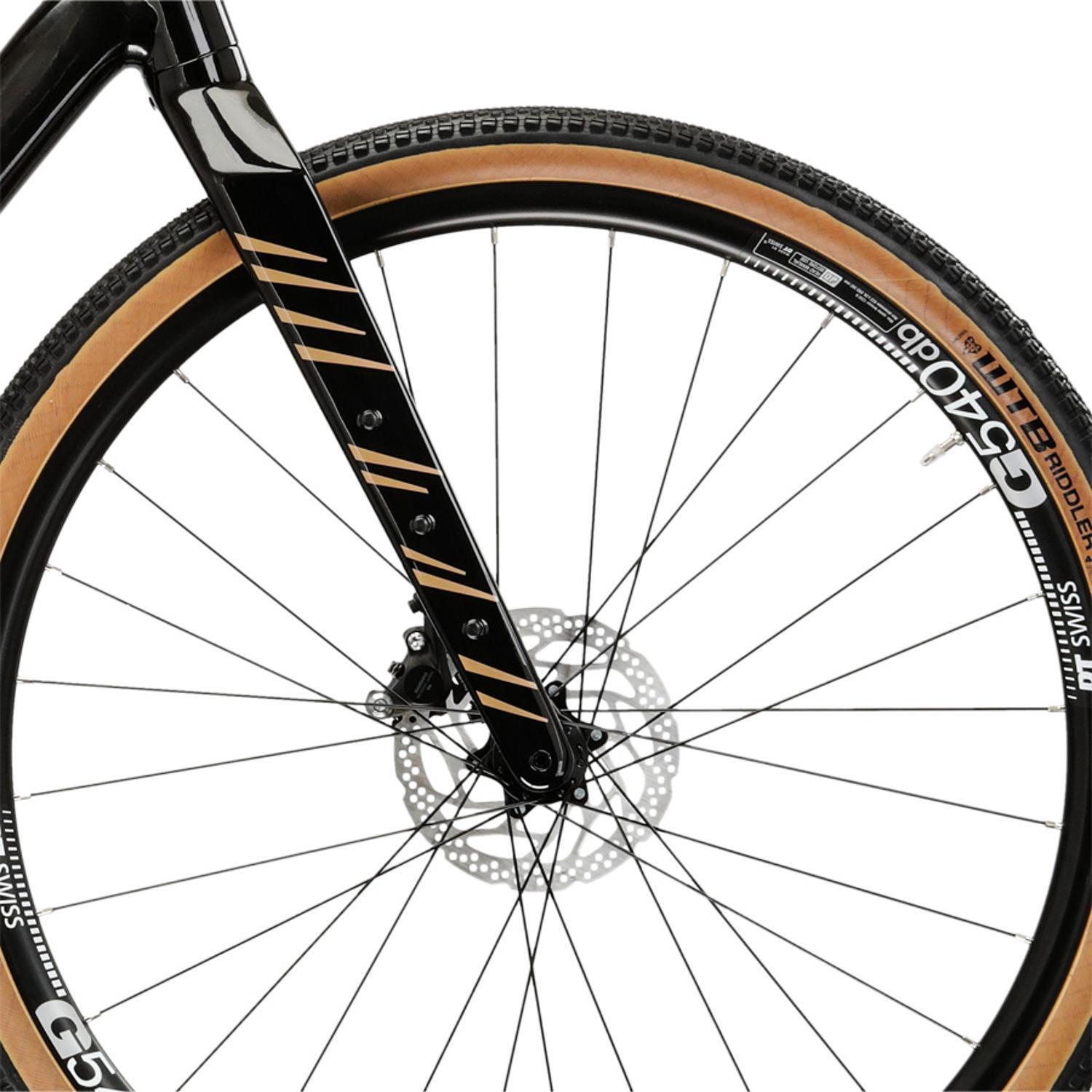

Fork: Carbon
Equipped with fixing screws: 2 on the top tube, 2 under the horizontal tube, 6 on the fork, 6 for bottle cage/ bag, 4 for luggage rack.

Wheels

Front hub: Shimano RS470 (thru axle)
Rear hub: Shimano TC500 (thru axle)
Rims: DT Swiss G 540
Tyres: WTB Riddler comp 700x45C
Transmission/braking

Front derailleur: Shimano GRX RX820
Rear derailleur: Shimano GRX RX820
Brakes: Shimano GRX RX410 hydraulic discs
Brake levers: Shimano GRX RX610
Disc brakes: Shimano RT30 160 mm
Shifters: Shimano GRX RX610
Crankset: Dual chainrings Shimano GRX RX610 30-46t / 170 mm
Bottom bracket: Shimano 105 R7101
Chain: Shimano M6100
Cassette: Shimano 105 R7101, 12v (11-34t)
Components

Handlebar: Aluminium 420 mm x 31.8 mm
Stem: Aluminium 70 mm / 31.8 mm / 12°
Seat post: Aluminium 350 mm x 27.2 mm
Saddle: Selle Royal Comfort Groove
Seat post clamp: Screwed Kross
Headset: FSA 1-1/8"-1,5" SRS
Handlebar tape: Fizik
Delivered without pedals

Size

M

Wheel size

700C

Frame size

19"

Seat tube

485 mm

Top tube

561 mm

Head tube

135 mm

Seat tube angle

74°

Head angle

71°

Chainstays

430 mm

Wheelbase

1045 mm

Reach

387 mm

Stack

586 mm

BB Drop

75 mm
