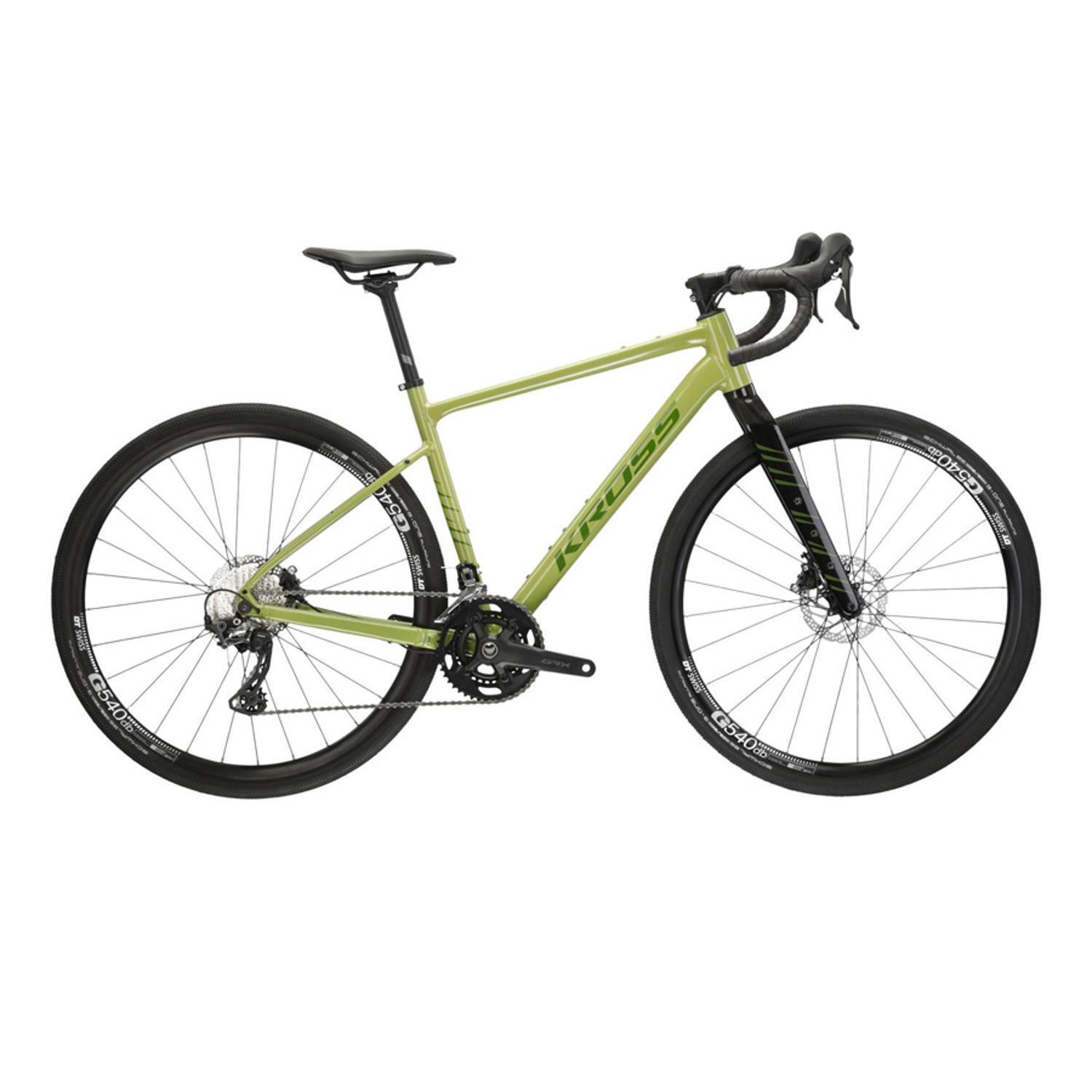

Gravel bike Esker

Size: M (19" - 48 cm)
Frame: Aluminium
Fork: Carbon
Fitted with fixing screws: 2 on the top tube, 2 under the horizontal tube, 6 on the fork, 6 for bottle cage/bag, 4 for luggage rack.

Wheels

Front hub: Shimano GRX RS470 (thru-axle)
Rear hub: Shimano GRX RS470 (thru-axle)
Rims: DT Swiss G540 (24-622)
Spokes: Steel
Tyres: WTB Riddler comp 700x45c
Transmission/Braking

Front derailleur: Shimano GRX-RX810 2x
Rear derailleur: Shimano GRX-RX810 11x
Front brake: Shimano GRX-RX400 hydraulic disc
Rear brake: Shimano GRX-RX400 hydraulic disc
Brake levers: Shimano GRX-RX600
Disc brakes: Shimano RT30 160 centerlock discs
Shifters: Shimano GRX-RX600
Crankset: Shimano GRX FC-RX600 46-30t / 170 mm double chainring
Bottom bracket: BSA BB-RS501
Chain: Shimano HG601
Cassette: Shimano GRX-RX600 HG700, 11x (11-34t)
Components

Handlebar: Aluminium 420 mm x 31.8 mm
Stem: Aluminium 70 mm / 31.8 mm / 12°
Seat post: Aluminium 350 mm x 27.2 mm
Saddle: Royal Run Comfort Groove
Seat clamp: Screwed Kross
Headset: FSA 1-1/8"-1.5"
Bar tape: Fizik Terra Microtex
Supplied without pedals

Size

M

Wheel size

28"

Frame size

19"

Seat tube

485 mm

Top tube

561 mm

Head tube

135 mm

Seat tube angle

74°

Head angle

71°

Chainstays

430 mm

Wheelbase

1045 mm

Reach

387 mm

Stack

586 mm

BB Drop

75 mm
