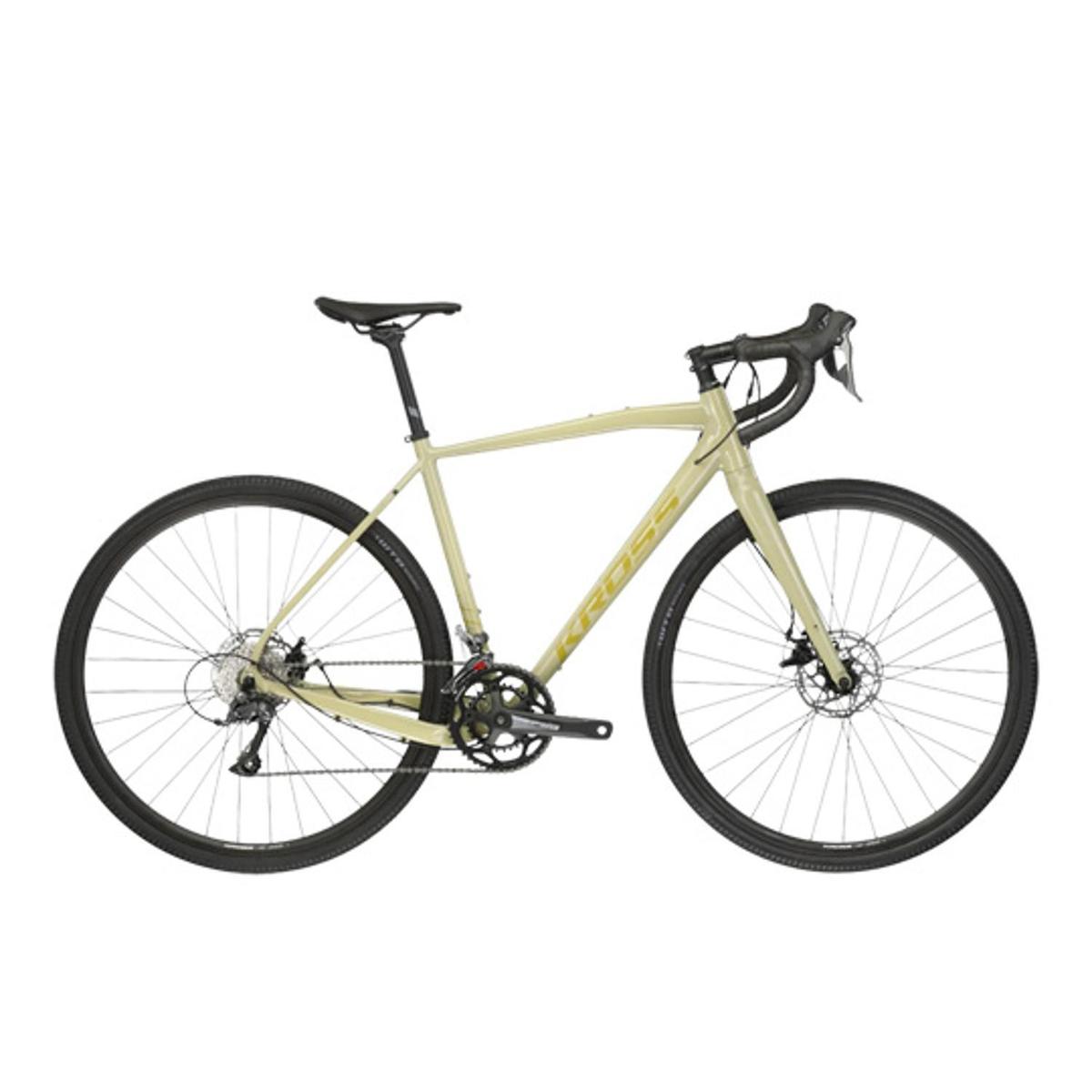

Gravel bike Esker

Size: XL (22" - 56 cm)

Frame: Aluminium
Fork: Aluminium
Equipped with fixing screws: 2 on the top tube, 2 under the horizontal tube, 2 on the fork, 4 for bottle rack/bag, 4 for luggage carrier.

Wheels

Front hub: Guli GL-B57F (quick release)
Rear hub: Guli GL-B57R (quick release)
Rims: Kross aluminium (19-622)
Spokes: Steel
Tyres: WTB Riddler comp 700x37c
Transmission/Braking

Front derailleur: Shimano Claris R2000 2v

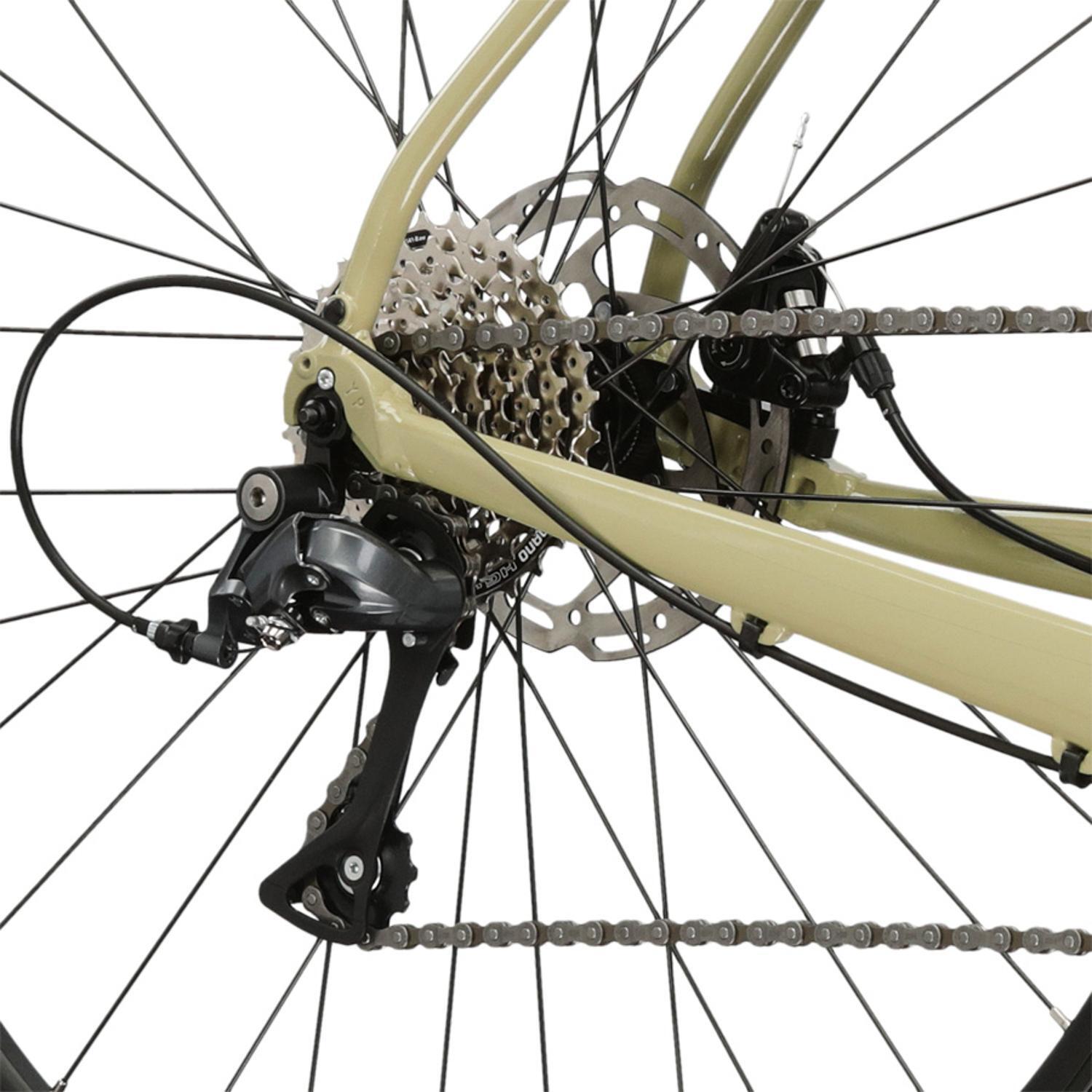

Rear derailleur: Shimano Claris R2000 8v
Front brake: Tektro MD C550 mechanical disc
Rear brake: Tektro MD C550 mechanical disc
Brake levers: Shimano Claris R2000
Disc brakes: Tektro TR160 centerlock discs
Shifters: Shimano Claris R2000

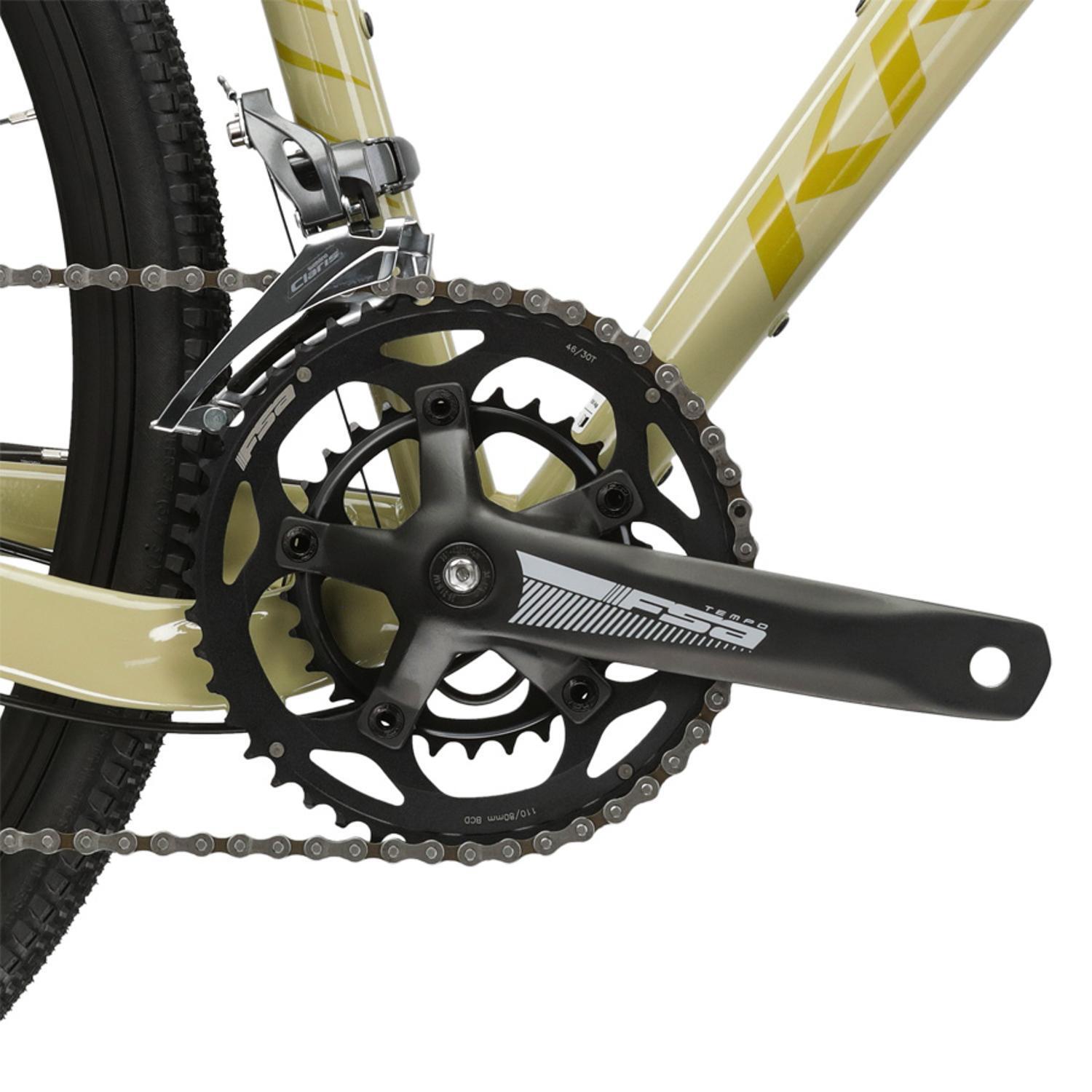

Crankset: FSA Tempo adventure double chainring 46-30t / 175 mm
Bottom bracket: FP-B902
Chain: Shimano HG40
Cassette: Shimano Acera HG41, 8v (11-32t)
Components

Handlebar: Aluminium 440 mm x 31.8
Stem: Aluminium 90 mm / 31.8 / 7°
Seatpost: Aluminium 400 mm x 27.2
Saddle: Royal Run Comfort Groove
Seatpost clamp: Screw-in Kross
Headset: FSA NO.42/ ACB 1-1/8"-1.5"
Handlebar tape: Fizik Terra Microtex
Weight: 11.65 Kg
Delivered without pedals

Size

XL

Wheel Size

700C

Frame Size

22"

Seat Tube

560 mm

Top Tube

570 mm

Head Tube

180 mm

Seat Tube Angle

73°

Head Angle

72°

Chainstays

436 mm

Wheelbase

1039 mm

Reach

385 mm

Stack

605 mm

BB Drop

70 mm
