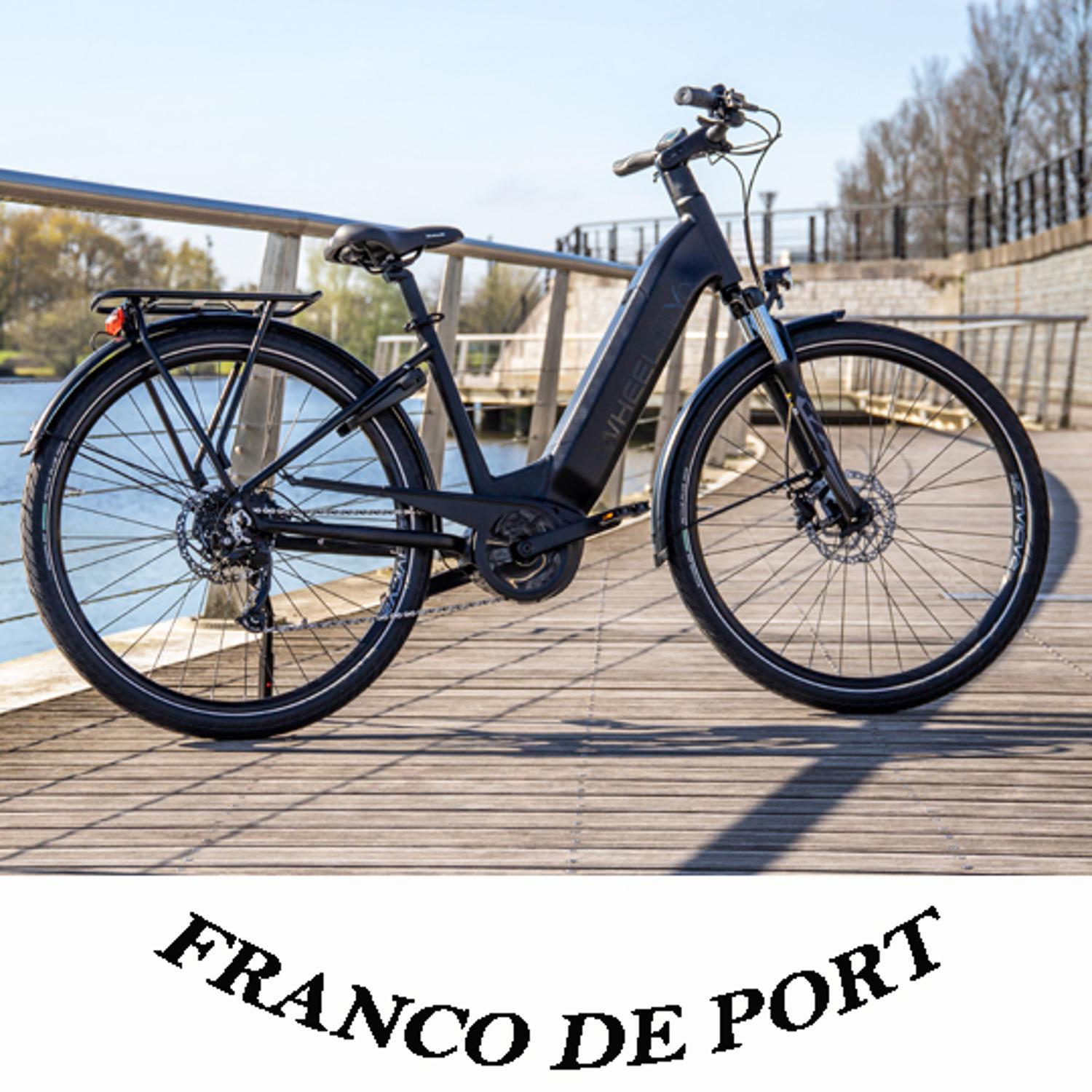

Electric bike Bosch

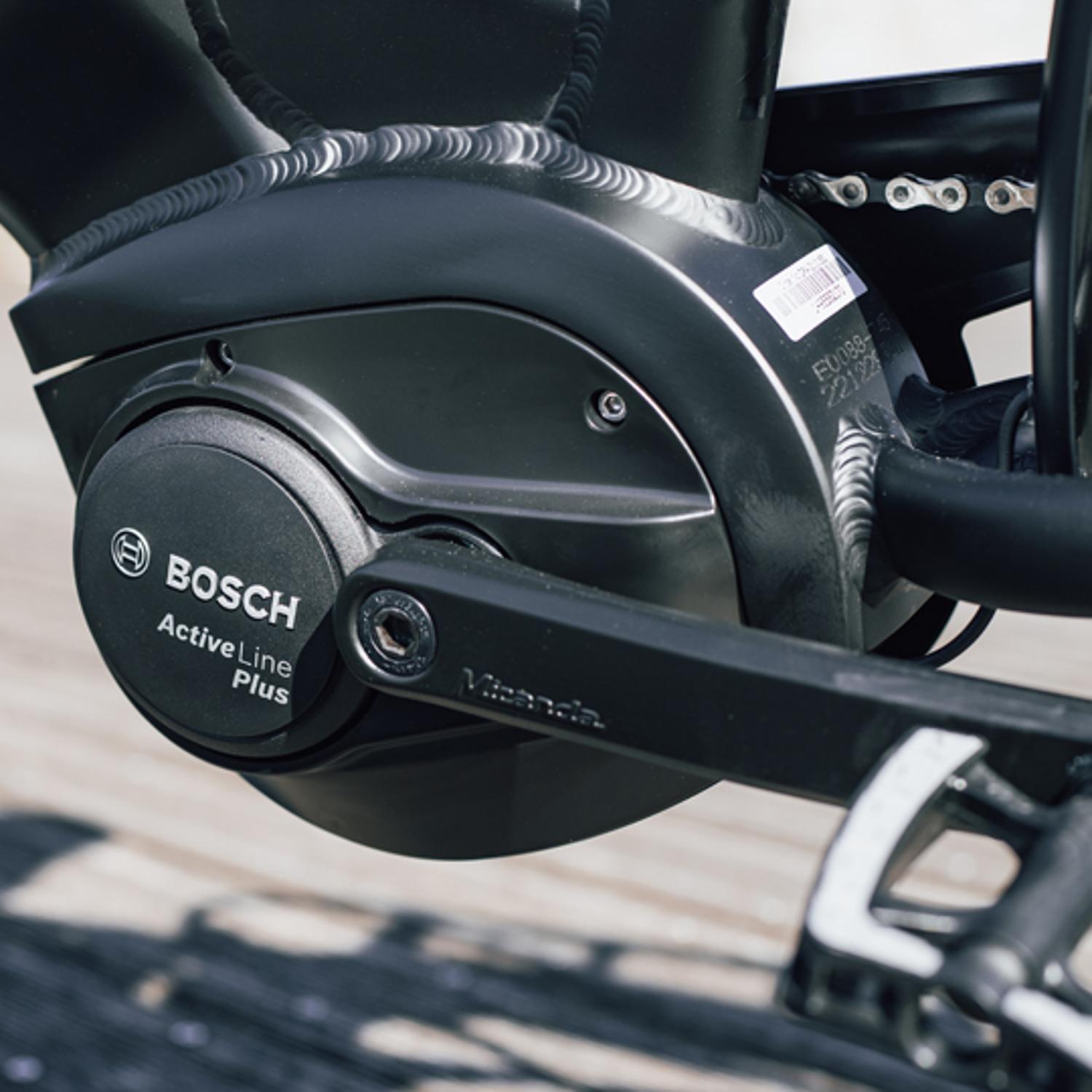

Central motor: Bosch Active Line plus 36V 250 W - 50 NM
Integrated battery: Bosch Power Pack lithium-ion, 400 Wh, 11 Ah

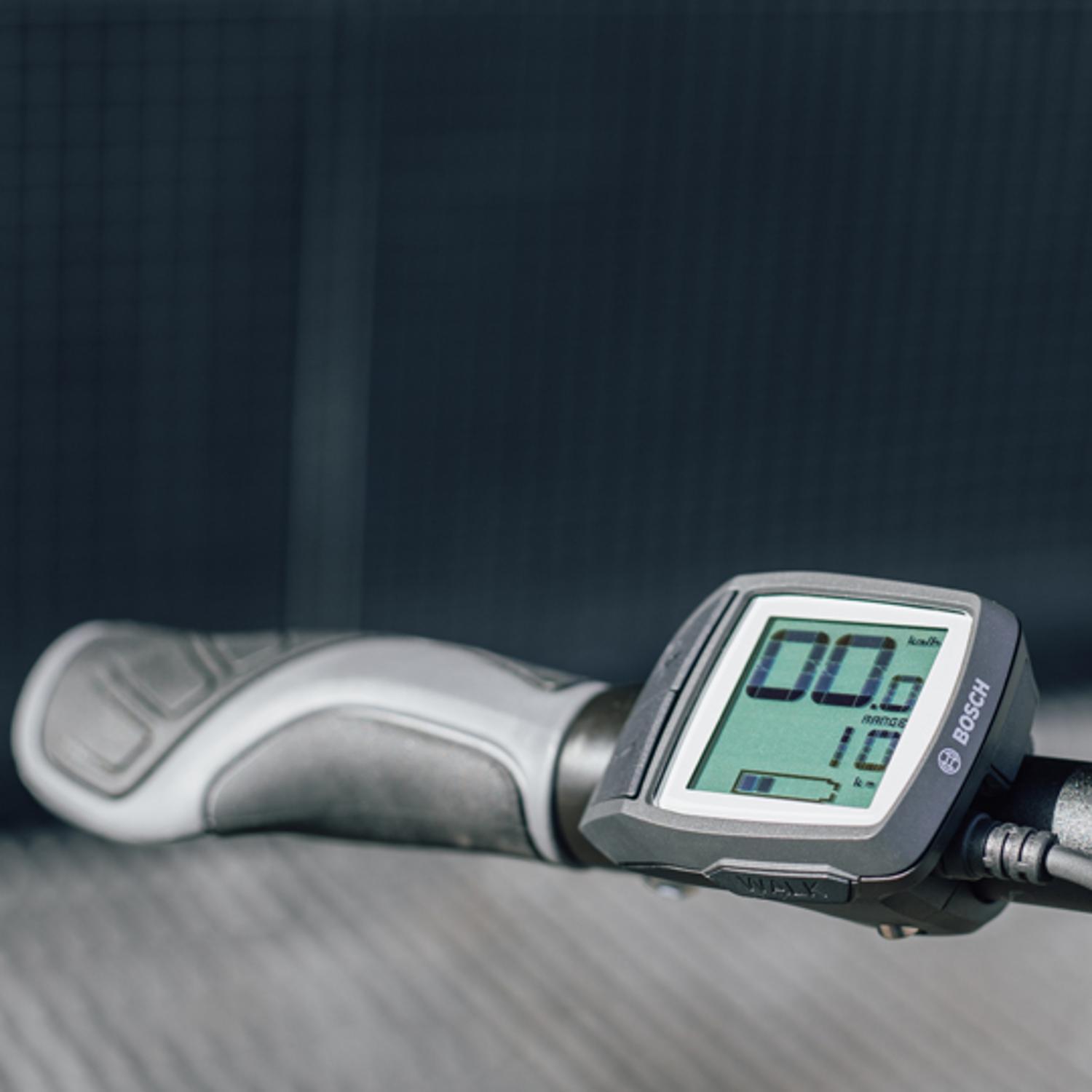

Counter/display: Bosch Purion
Assistance: 4 modes: Eco (115 kms**), Tour (79 kms**), Sport (66 kms**), Turbo (59 kms**) - (on/off, "+", "-" and pedestrian mode)
Frame: Aluminium - Height 45 cm
Fork: ZOOM 187D - adjustable (travel 65 mm)
Seat post: PROMAX aluminium Ø 30.9 mm - Lg 320 mm
Saddle: ROYAL Wave
Derailleur: SHIMANO Alivio RD-M3100, 9v
Cassette: SHIMANO HG200, 9v 11-36
Chain: KMC E9S - 126 links
Crankset: Aluminium Miranda direct Mount 38 Teeth - Crank 170 mm (ISIS). Chain guard: Chainbow SKS
Pedals: Anti-slip resin
Shifters: Shimano Altus M2010 Rapidfire, 9v (with graphic display of gears)
Brakes: Hydraulic disc SHIMANO MT200 - CENTERLOCK disc - RT 100 - 180 mm
Stem: adjustable (from 0 to 50°), 90 mm x 31.8, internal cable routing, integrated lighting support, aluminium
Headset: SR.ST.ACROS 1-1/8"-1,5"
Handlebar: Satori Noirette, aluminium 630 mm x 31.8 (Rise 21 mm, backsweep 30°)
Grips: HERRMANS grip Oxy DD29BL and DD29BR
Wheels: 700 Alu black "RADIALE" double wall - hub SHIMANO HB-TX505 CENTERLOCK
Tyres: SCHWALBE Energizer Active plus 28" x 2.00 (50-622)
Mudguards: SKS, black resin, 60 mm
Front light: HERRMANS Mr. GO 6-12V (100 lumens), mounted on fork, connected to motor
Rear light: Axa Blue line Led 12V, mounted on rack, connected to motor
Kickstand: Aluminium URSUS, to be screwed onto the frame, 40 mm fixing
Rack: aluminium with spring/clamp, width 140 mm
U-lock: Abus 4750 X, 2 keys (removable)
Maximum speed: 25 km/h.
Charger: 42V?: 2Ah
Charging time: 6h30
Weight: 26 kg

* The indicated range is for reference only. It varies based on the cyclist's weight, elevation, and the power level selected.

All resellers must hold the "VAE Bosch dealer" certificate to carry out maintenance operations.
