Key Points

Shock delivered without spring.

The best downhill riders in the world need this.

The roughest trails demand it.

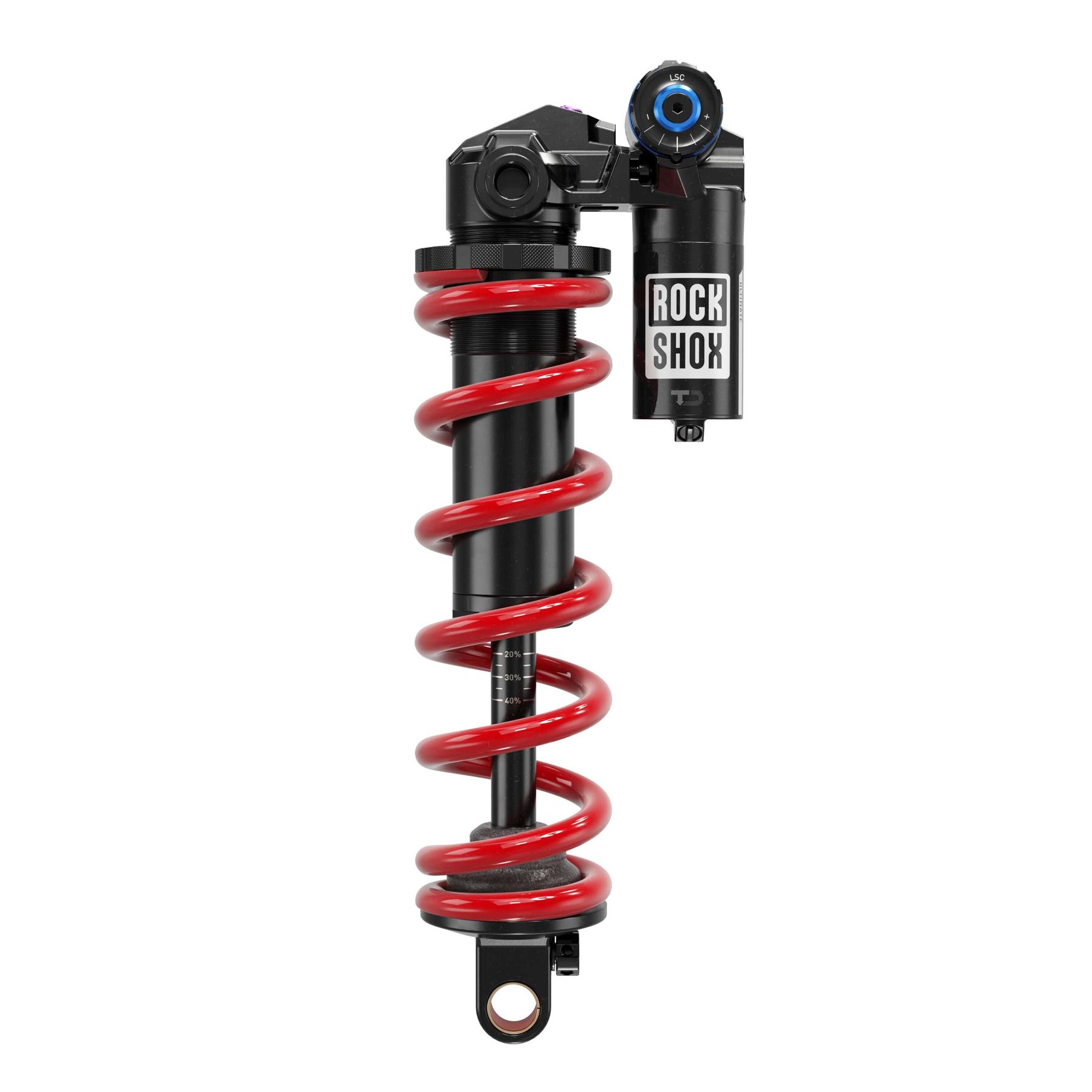

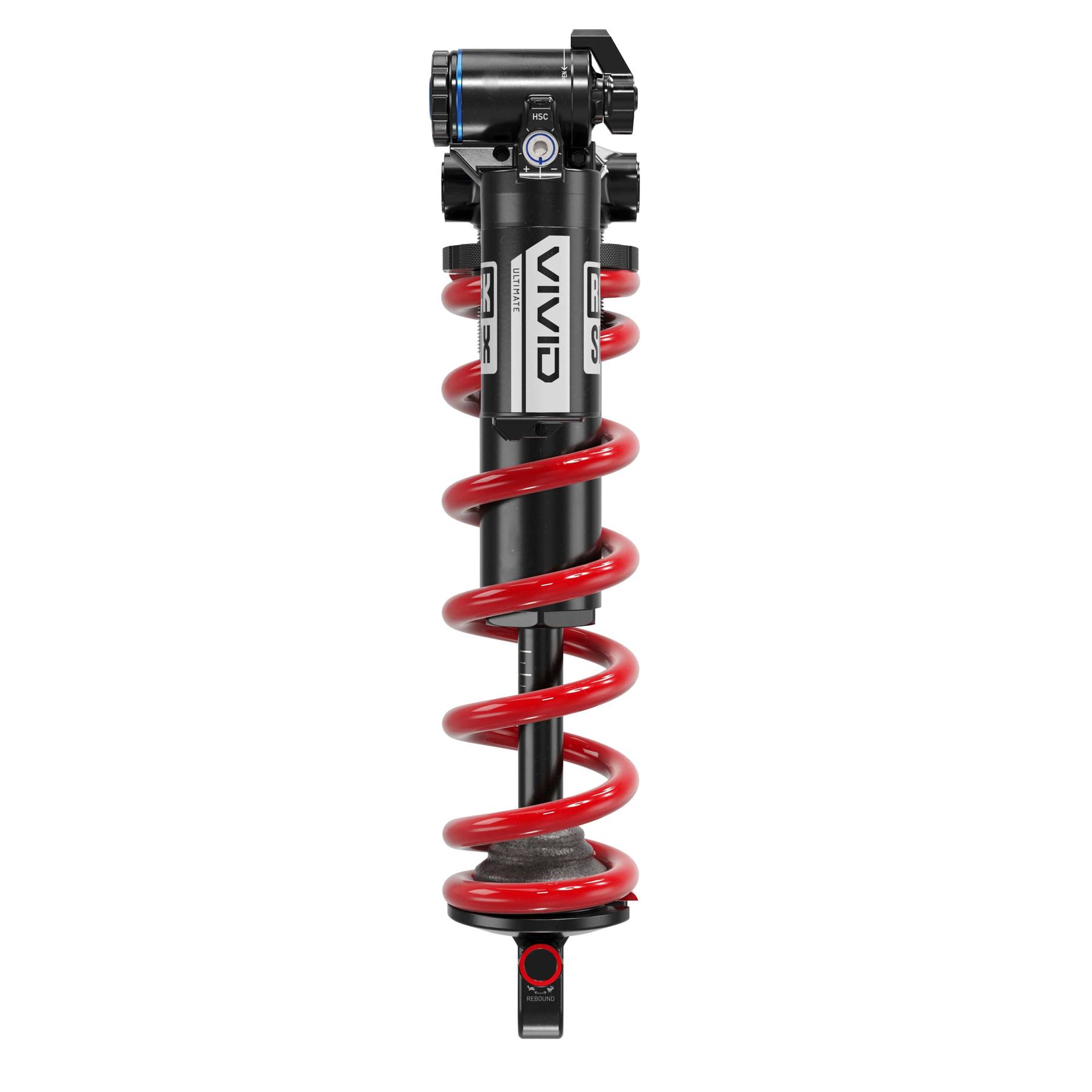

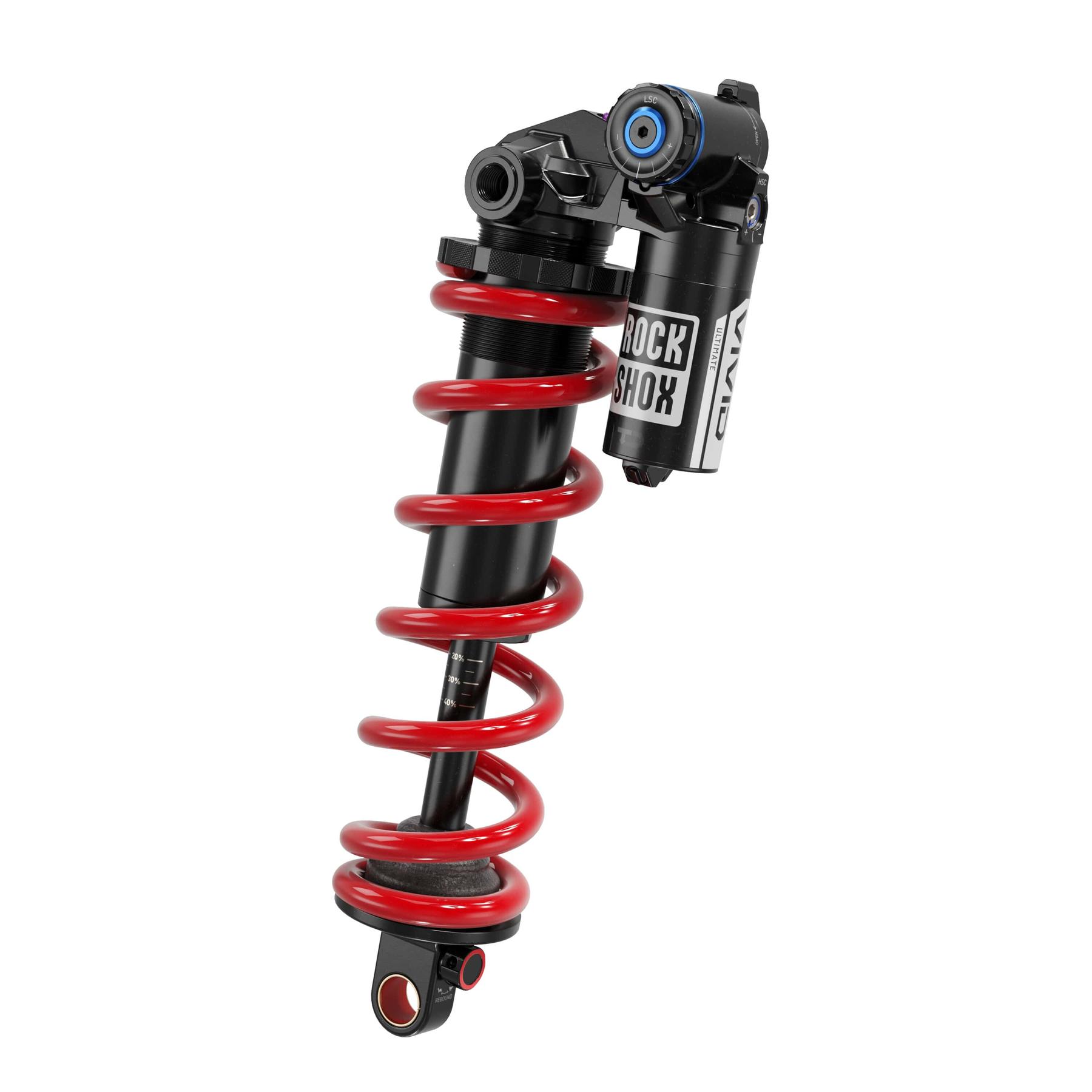

The Vivid Coil Ultimate is unmatched in terms of downhill performance and adjustability.

Easily fine-tune the ideal feel with the dynamic response TouchDown RC2T cartridge.

Independent external adjustments for high and low-speed compression provide amazing sensitivity in the initial stroke, exceptional support and control in the mid-stroke, and adjustable hydraulic bottom-out management to cushion the toughest landings.

This characteristic feel of the coil spring, enhanced with cutting-edge technology to deliver world-class suspension performance.

FEATURES

The TouchDown RC2T cartridge offers optimal sensitivity and flexibility while remaining stable and firm throughout the entire stroke.

Thanks to additional features like adjustable hydraulic bottom-out management to withstand significant impacts, this dynamic response cartridge delivers optimal reliability and exceptional tuning options, showing liveliness throughout the entire stroke.

NEW The TouchDown RC2T cartridge features adjustable rebound, independent high and low-speed compression adjustment, and an easy-to-adjust threshold lever for maximum pedalling efficiency.

Adjustable hydraulic bottom-out management offers five different compression settings that can be activated at your fingertips to customise the bottom-out resistance rate in the final 20% of the stroke.

Compatible with the new Electric Red coil springs.

The soft bottom-out bumper adapts to different stroke lengths to utilise the full range of travel.

Maxima Plush suspension oil reduces friction and noise from the cartridge.

The 20 clicks of rebound adjustment provide a wider range of settings suited to more types of riders.

The rebound knob is removable to reveal a 3mm hex key for adjusting both high-speed compression and hydraulic bottom-out management.

Compatible with the 8x30 bearing adapter.

Technical specifications:

Body Mount: Standard
Shaft Mount: Trunnion
Lockout Force: X2
Rebound Adjustment: R55
Compression Adjustment: C30
Eye-to-eye: 205 mm
Stroke: 62.5000 mm
Damping Type: RC2T Adj. Hydraulic Bottom Out
Colour: Black
Discipline: MTB
Chamber Type: Coil
Check Tune: 0 - Light
Sticker Colour: Pearl White
Body Colour: Black
Damping Adjustments: Ext reb, 2pos (open/firm), HS&LS comp, Hydraulic Bottom Out
Eye-to-eye / Stroke: 205x62.5 (TR)
Rebound adjustment clicks: 20
