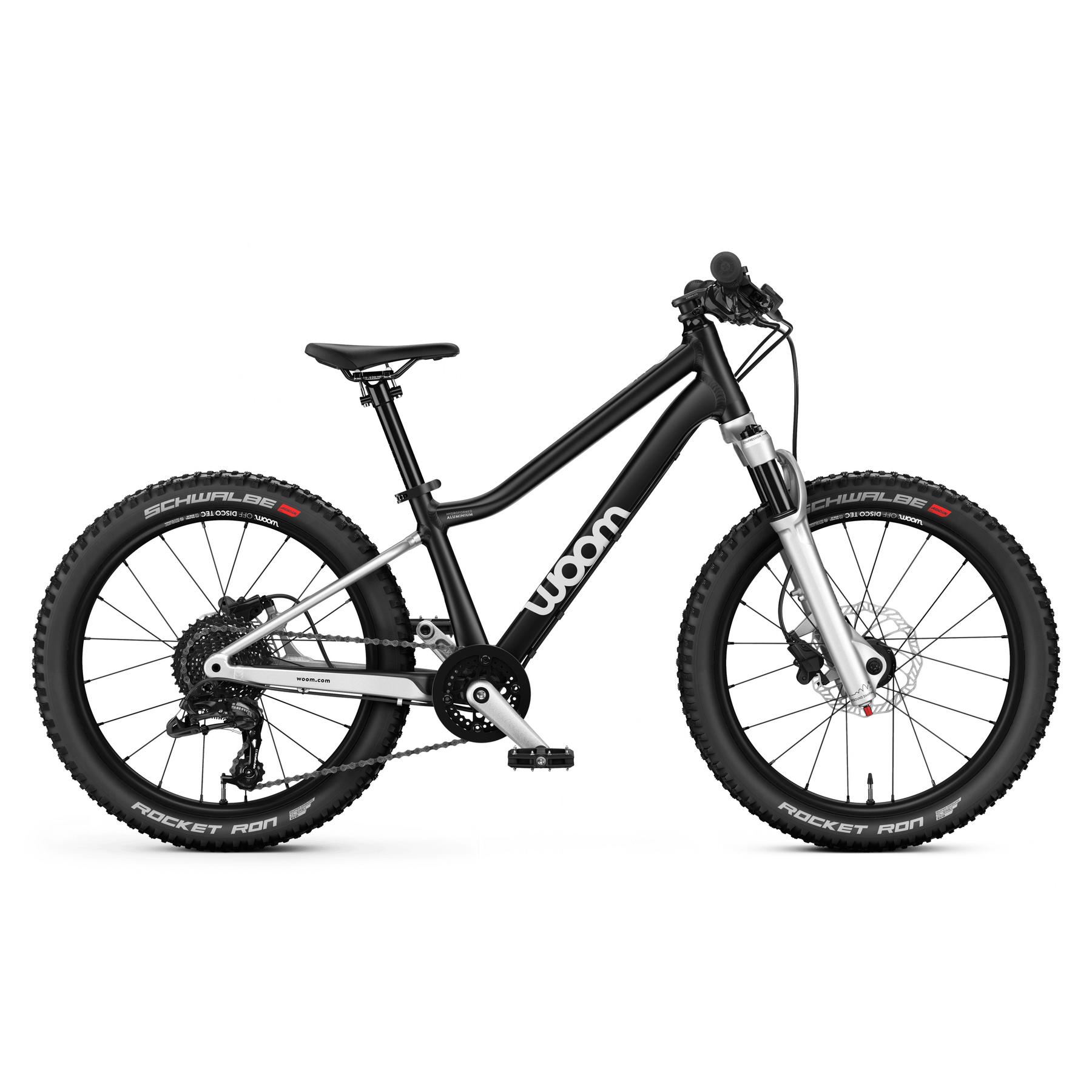

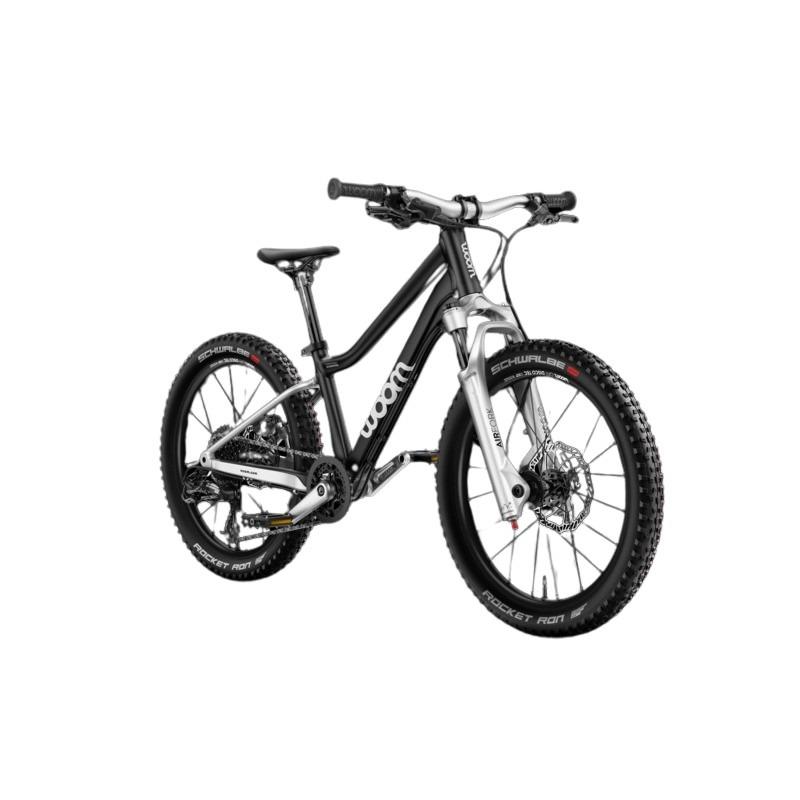

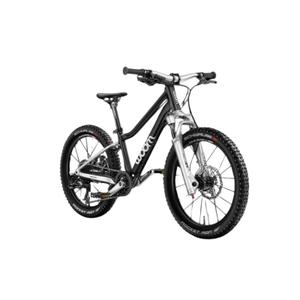

Child bike Off Air 5

The ultra-lightweight, sturdy 24" all-terrain bike with suspension fork, nine-speed derailleur and disc brakes for children aged seven and over.


Frame

• Frame material: high-quality, lightweight 6061 T6 aluminum with hydroformed tapered tubes
• Wheel size: 24 inches
• Sporty handling: low entry, low seating position and long wheelbase ensure good grip, optimum balance and superior riding pleasure.
• Can be fitted with telescopic seat post
• Sturdy plastic base protector to prevent scratches

Fork

• Aluminium suspension fork RST
• Adjustable compression and rebound damping, lockout function
• 80 mm travel
• Mini tapered shaft 1 1/8″ - 1″
• Wheel axle 100 x 15 mm
• Post mount for brake

Headset

• Fully integrated 1 1/8″ - 1″ headset
• Industrial bearings

Stem

• Forged aluminum
• CNC machining
• Handlebar secured with 2 clamps
• Reversible +/-15° handlebar height adjustment system
• Length: 50 mm

Handlebars

• Wide, lightweight aluminum handlebars with tapered ends
• Width: 585 mm
• Riser: 20 mm

Handles

• Child-friendly thanks to reduced diameter
• Particularly comfortable thanks to reinforced palm contact area
• Entirely made of silicone for a firm grip
• Screwed handlebar ends to prevent rotation

Drive system

• Lightweight aluminum crankset, 130 mm long, with narrow pedal spacing
• pedal spacing (Q factor)
• 28-tooth narrow-wide chainring
• Cassette from 11 to 34 teeth
• Flat pedals in fiber-reinforced nylon with metal nails for good grip
• With Cr-Mo axle and sealed industrial ball bearings

Brakes

• Hydraulic disc brakes Promax
• Front/rear disc diameter: 160/160 mm
• Ergonomic brake lever for children's hands

Derailleur

• 9-speed
• Gear selector SRAM X5
• Derailleur SRAM X5

Wheels

• Lightweight tubeless-compatible aluminum rims from Alexrims
• Dimensions: 24″
• Aluminum hubs with sealed industrial bearings
• Thru axles for maximum rigidity (100 x 15 mm front / 135 x 12 mm rear)
• 20 double-cross spokes
• Aluminum nipples

Tires

• Schwalbe Rocket Ron 24 x 2.35″
• With ADDIX tread compound SPEED and Tubeless-Easy technology
• Tubeless configuration possible
• Presta valve

Saddle

• MTB saddle
• Sporty design
• Ergonomic saddle adapted to the child's pelvis according to age group
• Side protection for leaning against walls

Seat post

• 27.2 x 250 mm
• Anodized aluminum seatpost with maximum extension indicator

Seat post clamp

• Saddle clamp rapide in aluminum
• Long clamping lever rapide, can be operated with little force
• No risk of rotation

Tools included

• 4 mm Allen wrench for stem
• 8 mm Allen key for front wheel and pedals

Weight

• 10.3 kg (without pedals)

Colors

• black
• terra coppa

Weight limit

• 70 kg (max. total weight of bike with rider and bag)

Dimensions

129 x 68.5 x 23 cm
